Plasma cutter | 50A | Soldatech PL50HG

Plasma cutter | 50A | Soldatech PL50HG

€475 (EUR)

Description

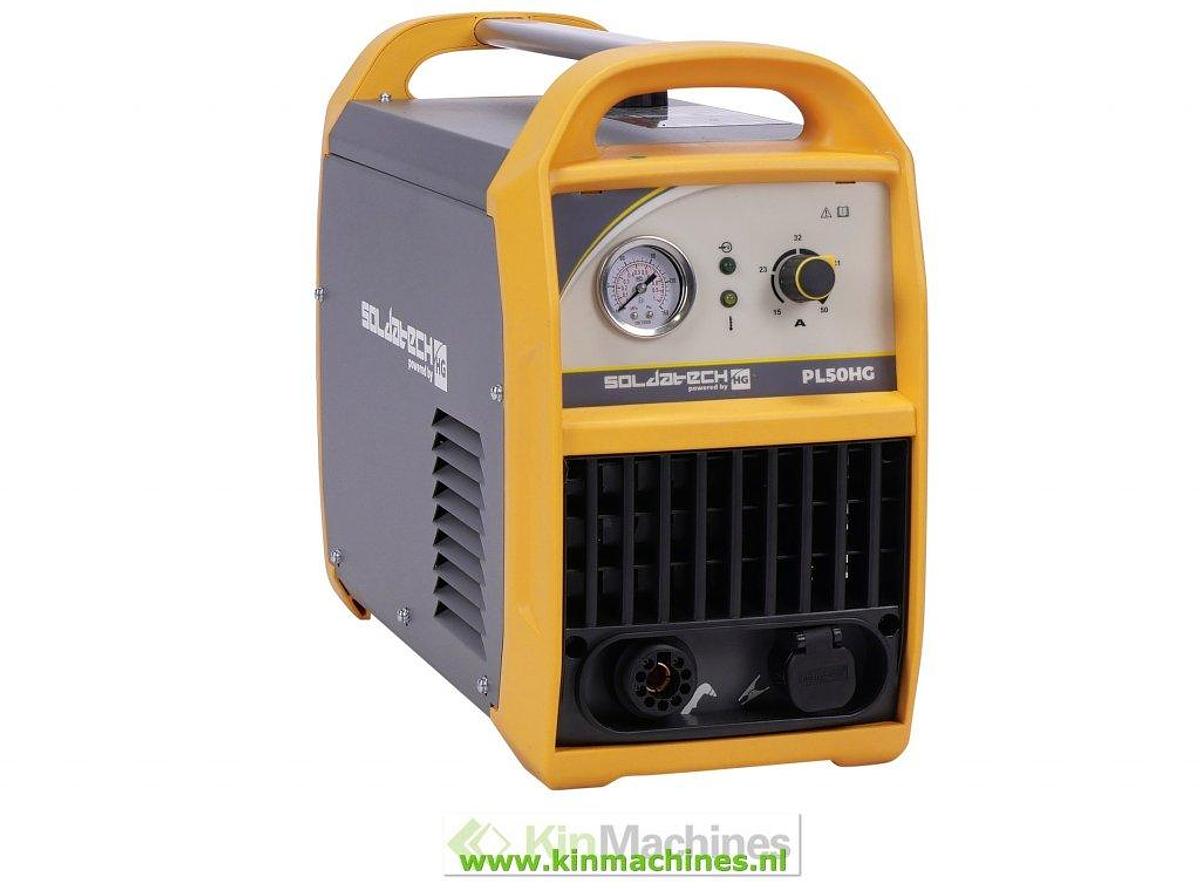

Plasma cutter This Soldatech powered by HG plasma cutter cuts various materials with high-quality results. The PL50HG is a compact, powerful and easy to operate plasma cutter that features Pilot ARC pre-ignition. This in combination with the HF ignition ensures that this cutter ignites very easily and cuts through rusted, coated or textured material up to 20mm with ease. The PL50HG features a user-friendly control panel and can even be adjusted during cutting operations to achieve the best cutting result. Modern IGBT inverter technology not only ensures that the PL50HG delivers durable performance with more power, but it also makes the unit lightweight and portable. Overload protection combined with a built-in fan prevents overheating and ensures high-quality welding performance for a long time. Ideal for cutting low alloy steels, stainless steels and aluminum alloys. Each PL50HG comes standard including: Soldatech PL80M5 plasma torch with 5m cable Workpiece clamp with 2m 16mm² cable Gas pipe of 4m with hose clamps Neoprene power cable with 2m 3×2.5mm² cable European dinse-couplings 9mm

Specifications

ManufacturerSoldatech
ModelPL50HG
ConditionNew
Mains voltage230V
SoortPlasma cutter
Frequency50/60 Hz
Fuse16A C-car
Input power7.6 kVA
Power-on time (at 20 degrees ambient temperature)60% - 50A
Power-on time (at 40 degrees ambient temperature)20% - 50A
Cutting current range15 - 50A
Max. no-load voltage293 V
Max cutting thickness20 mm
Recommended cutting thickness12 mm
Air consumption220 L/min
Protection classIP21S
Dimensions459 x 200 x 338 mm
Weight11 kg

Shipping details

Width30.5 cm
Height42 cm
Length52.5 cm
Weight18 kg
