MIG MAG Welding machine | 500A | Soldatech ML500YHG | Synergetic

MIG MAG Welding machine | 500A | Soldatech ML500YHG | Synergetic
€3,150 (EUR)
or
Call +31 655 062 286
Description
MIG/MAG 500A welding inverter / inverter synergistic / welding machine / welding machine

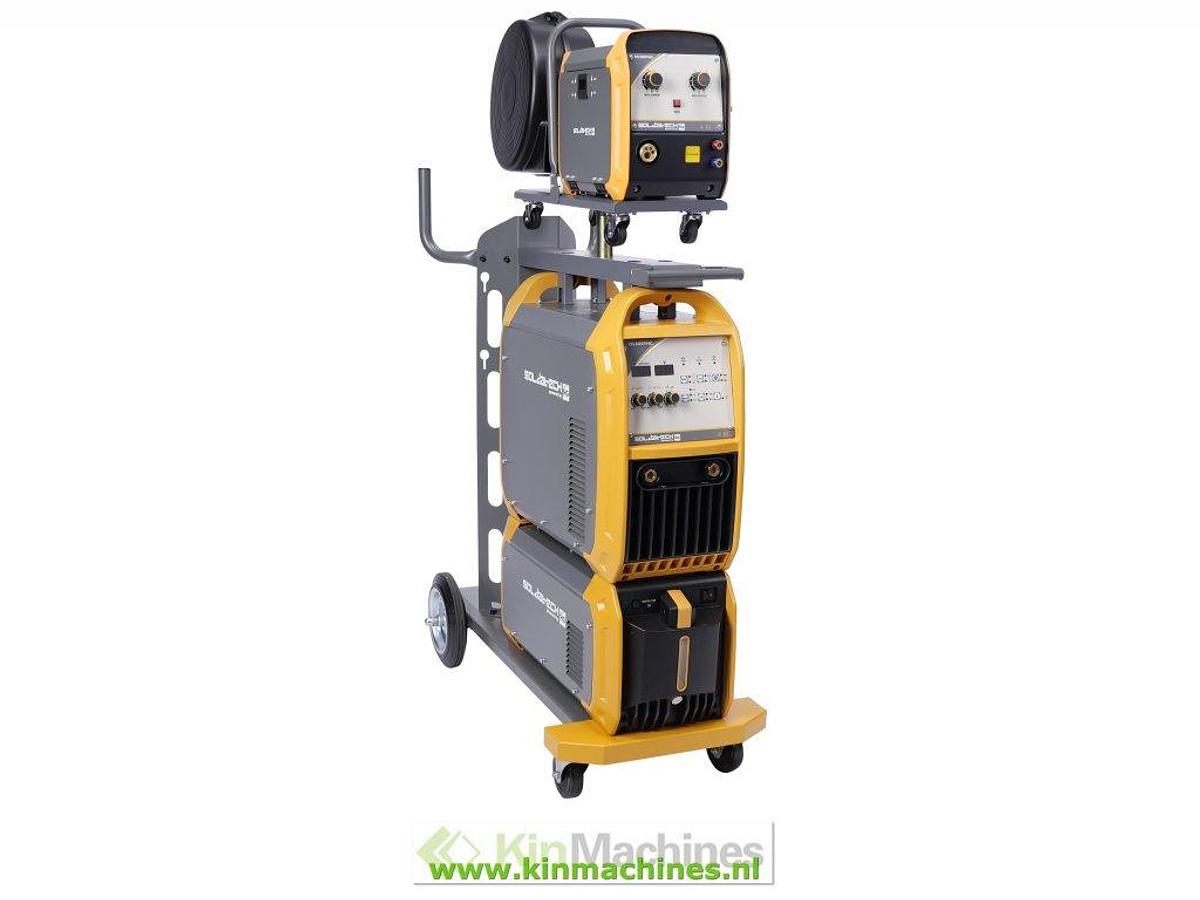

This Soldatech
powered by HG
MIG/MAG welding machine can be set both synergistically and manually, standard equipped with a solid trolley that easily carries a 50L bottle. This synergetic machine allows to perform different welding processes including MIG welding and also electrode welding with ease.
The modern IGBT inverter technology ensures that the ML500YHG delivers sustained performance with more power and a very high duty cycle. Also, the ML500YHG is equipped as standard with a powerful water cooler which, in combination with a built-in fan, prevents overheating and ensures high-quality welding performance for a long time.
Furthermore, the mobile wire feeder unit is equipped with a control panel on which welding voltage and amperage, among others, are easily adjustable. Also, the power source is equipped with pre-programmed synergetic programs for welding various materials.
Ideal for welding stainless steel, carbon steel, low alloy steel and aluminum (without pulse).
Each ML500YHG comes standard including:
Water-cooled Soldatech MLT501M4 MIG torch
Workpiece clamp with 3m 50mm² cable
European dinse couplings 13mm
Gas pipe of 12m with quick connector
Intermediate cable of 5m
5-pin 32A plug with 3m 4x4mm² cable
4x wire drive coil: 2x 0.8 + 1.0 and 2x 1.2V + 1.6V
Specifications
Manufacturer | Soldatech |
Model | ML350YHG |
Condition | New |
Mains voltage | 400V |
Soort | MIG Welding |
Frequency | 50/60Hz |
Fuse | 32A B-car |
Input power | 27.5 kVA |
Start-up voltage | 73V |
Power-on time (at 20 degrees ambient temperature) | 100% - 500A |
Power-on time (at 40 degrees ambient temperature) | 60% - 500A |
Welding current range mig/mag | 40 - 500A |
Welding current range mma | 40 - 490A |
Weldable welding wire | 0.8 / 1.0 / 1.2 / 1.6 mm |
Cooling unit capacity | 6 ltr |
Protection class | IP21S |
Dimensions | 1133 x 498 x 1508 mm |
Weight = 11g | 112 kg |
