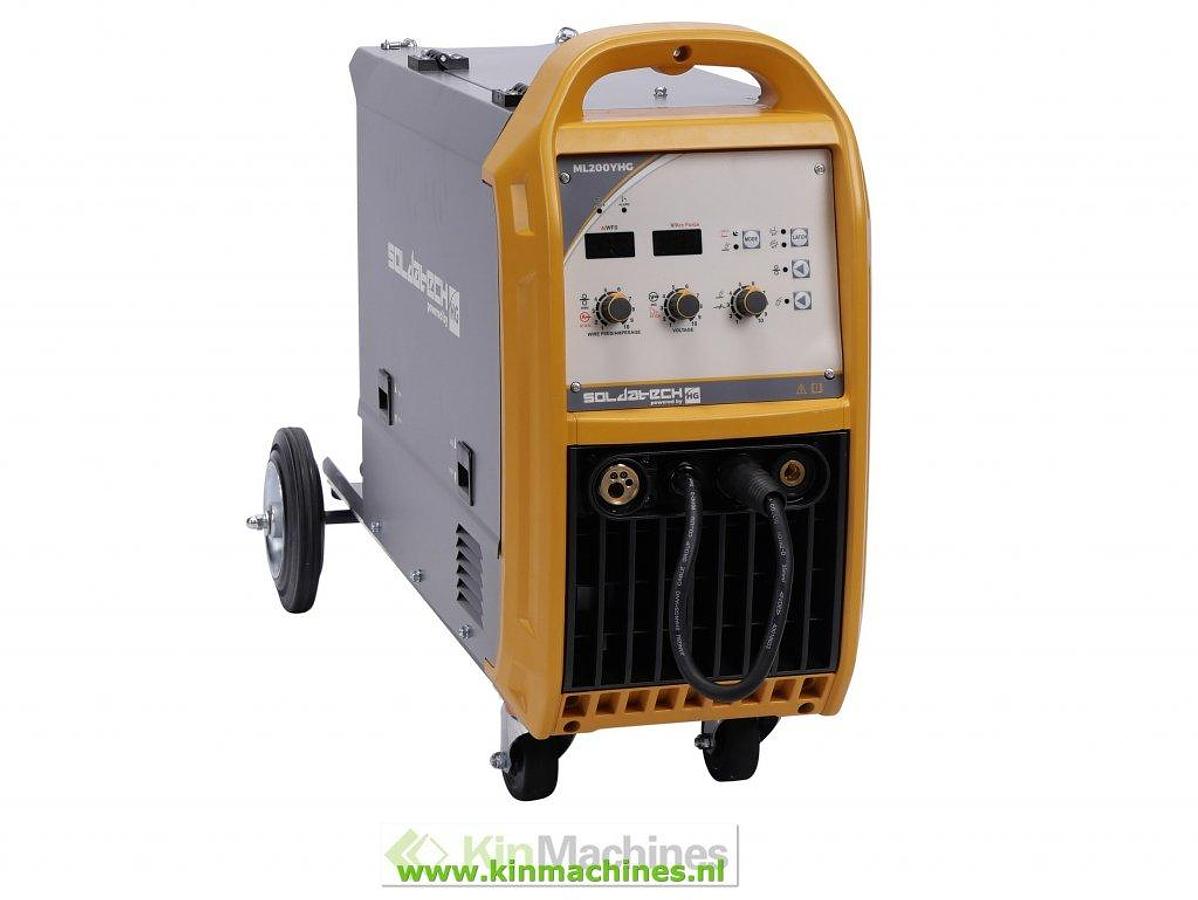

MIG MAG Welding machine | 200A | Soldatech ML200YHG

MIG MAG Welding machine | 200A | Soldatech ML200YHG
€1,050 (EUR)
or
Call +31 655 062 286
Description
MIG/MAG 200A welding inverter / inverter / welding device / welding machine
This Soldatech
powered by HG
MIG/MAG welding machine is equipped as standard with a carrying tray to fix the gas cylinder. This machine allows you to perform various welding processes including MIG welding and also electrode welding with ease.
The modern IGBT inverter technology ensures that the ML200YHG delivers durable performance with more power and a very high duty cycle. Also, the ML200YHG is equipped as standard with thermal safety which, combined with a built-in fan, prevents overheating and ensures high-quality welding performance for a long time.
The hot-start/anti-stick function quickly increases the welding current so that when ARC welding, the electrode does not stick to the workpiece.
Ideal for welding stainless steel, carbon steel, low alloy steel and aluminum (without pulse).
Each ML200YHG comes standard including:
MLT24M3 MIG torch with euro connector 3m cable
Twistlock electrode holder 3m 25mm²
Workpiece clamp with 3m 25mm² cable
European dinse couplings 13mm
Gas pipe 4m with quick connector
2x wire drive coil: 0.8 + 1.0
3-pin 32A plug with 3m 3x4mm² cable
Specifications
Manufacturer | Soldatech |
Model | ML200YHG |
Condition | New |
Mains voltage | 230V |
Soort | MIG Welding |
Frequency | 50/60Hz |
Fuse | 16A C-car |
Input power | 10 kVA |
Start-up voltage | 76V |
Power-on time (at 20 degrees ambient temperature) | 100% - 200A |
Power-on time (at 40 degrees ambient temperature) | 60% - 200A |
Welding current range mig/mag | 30 - 200A |
Welding current range mma | 20 - 180A |
Weldable welding wire | 0.8 / 1.0 / 1.2 mm |
Protection class | IP21S |
Dimensions | 990 x 495 x 720 mm |
Weight = 11g | 44,5 kg |
Shipping details
Width | 50 cm |
Height | 73.5 cm |
Length | 103.5 cm |
Weight | 68 kg |
