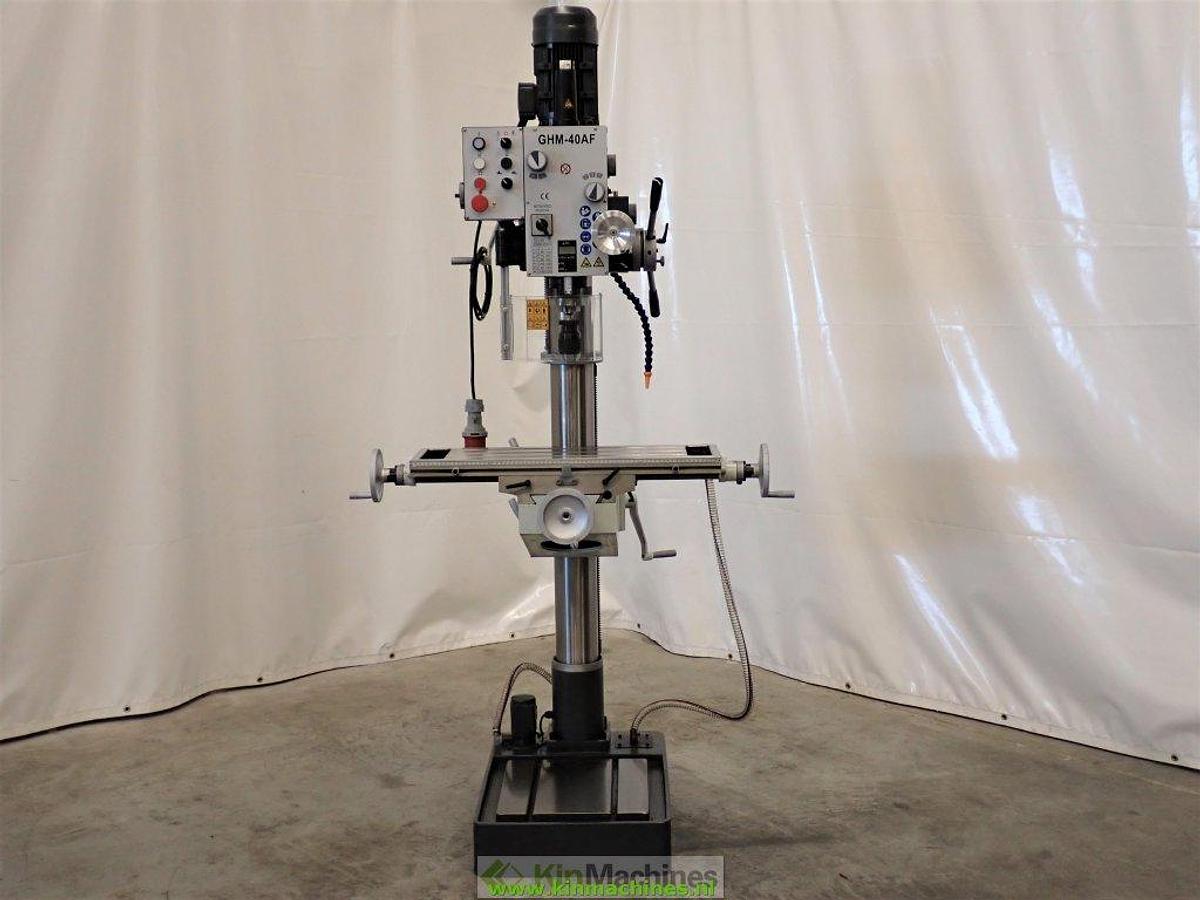

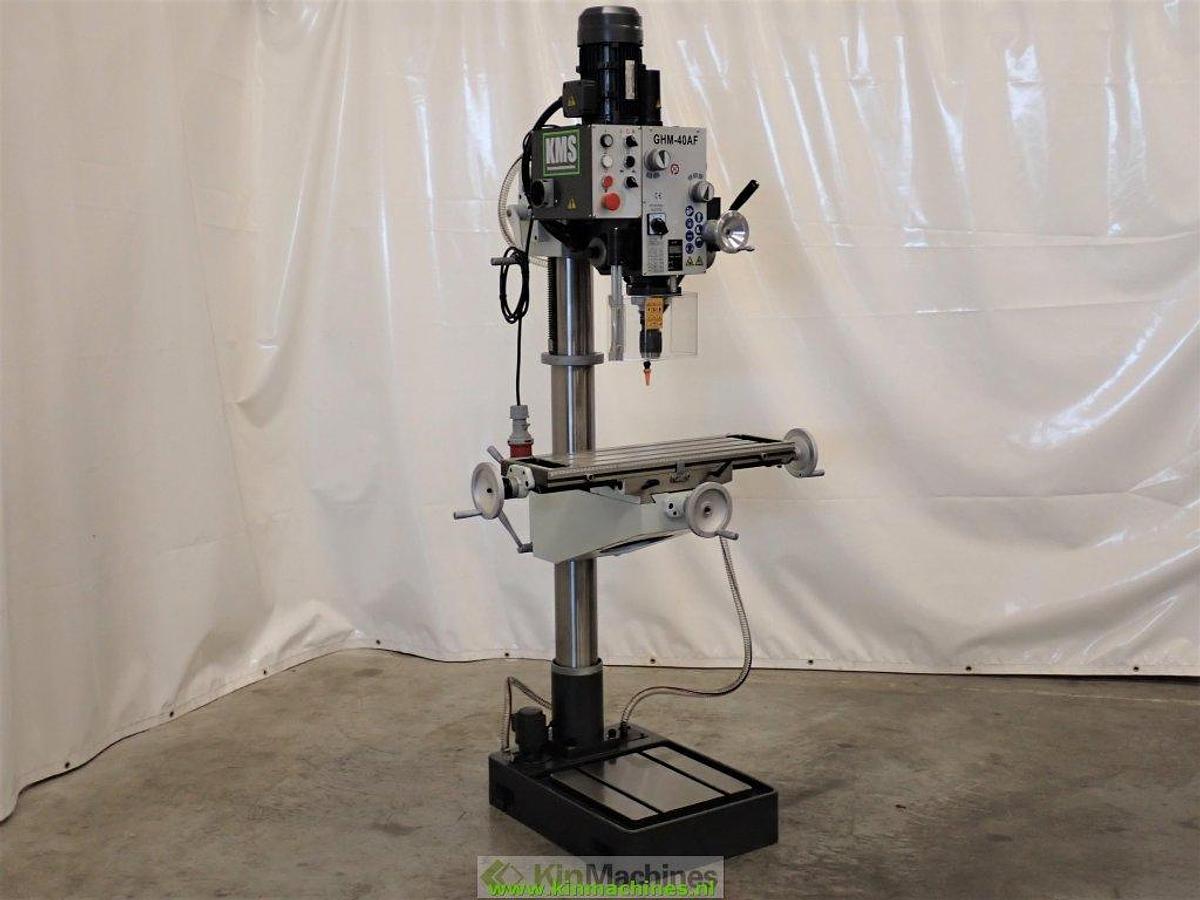

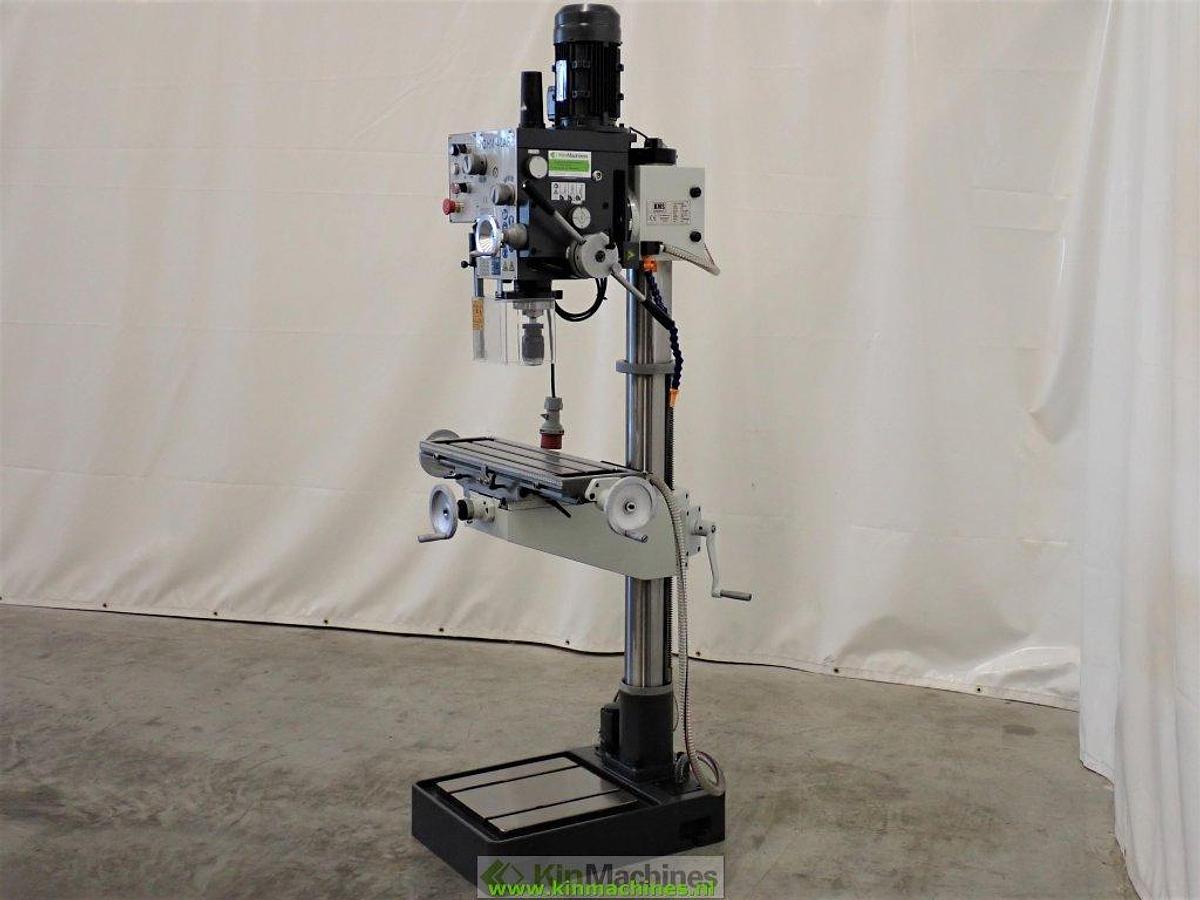

Column drill with cross table | KMS GHM-40AF | Spindle feed | Tapping function

Column drill with cross table | KMS GHM-40AF | Spindle feed | Tapping function

€3,250 (EUR)

Prijs
Ex.btw. / af Staphorst
Verzendkosten
Op aanvraag
Levering
Uit voorraad

Available quantity:2

Description

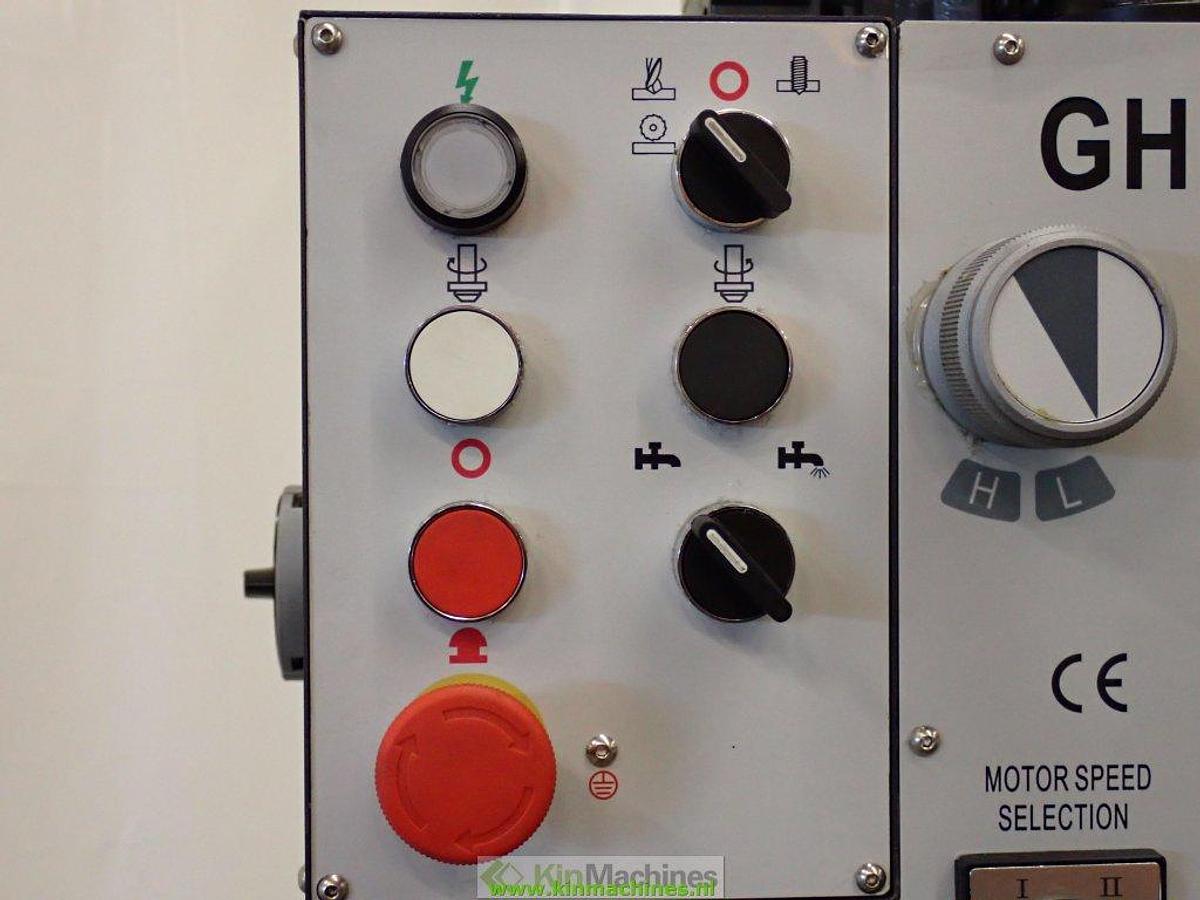

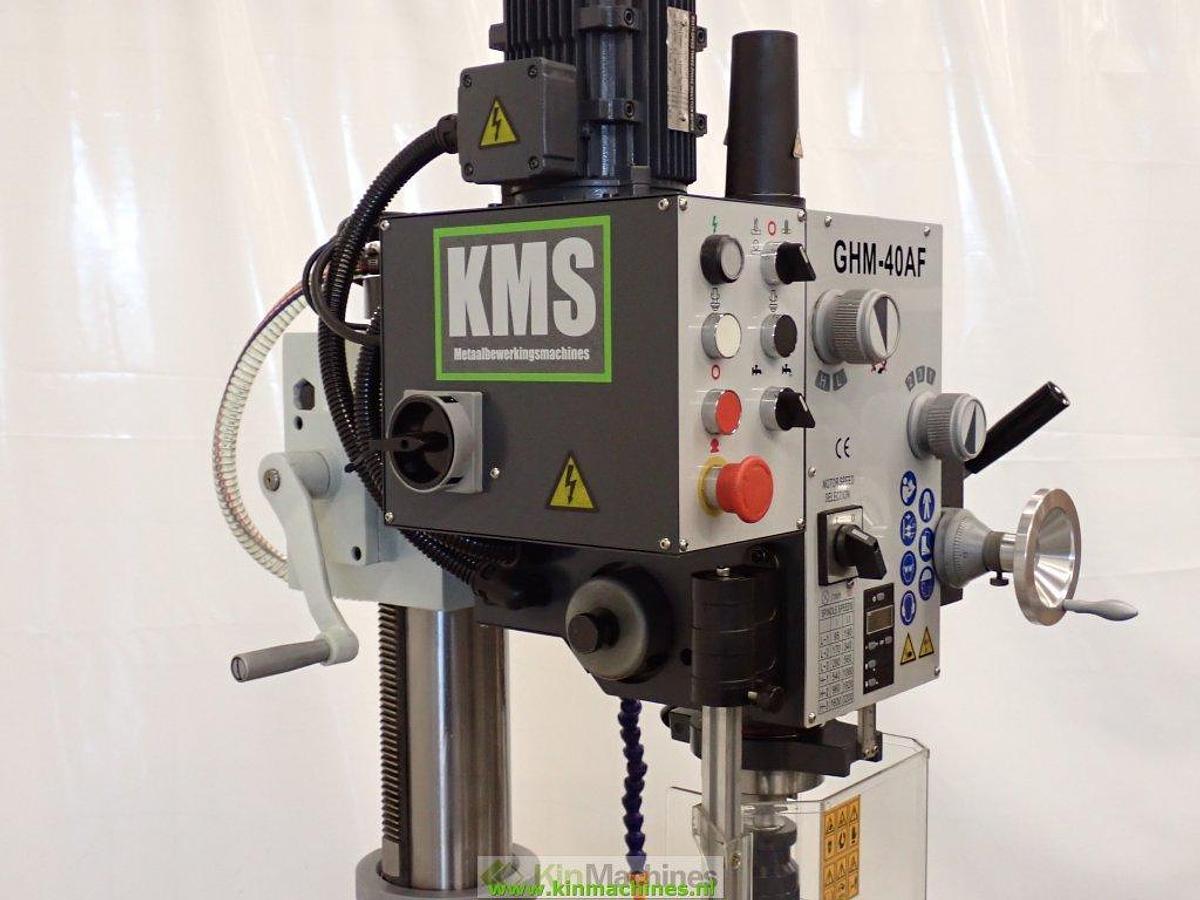

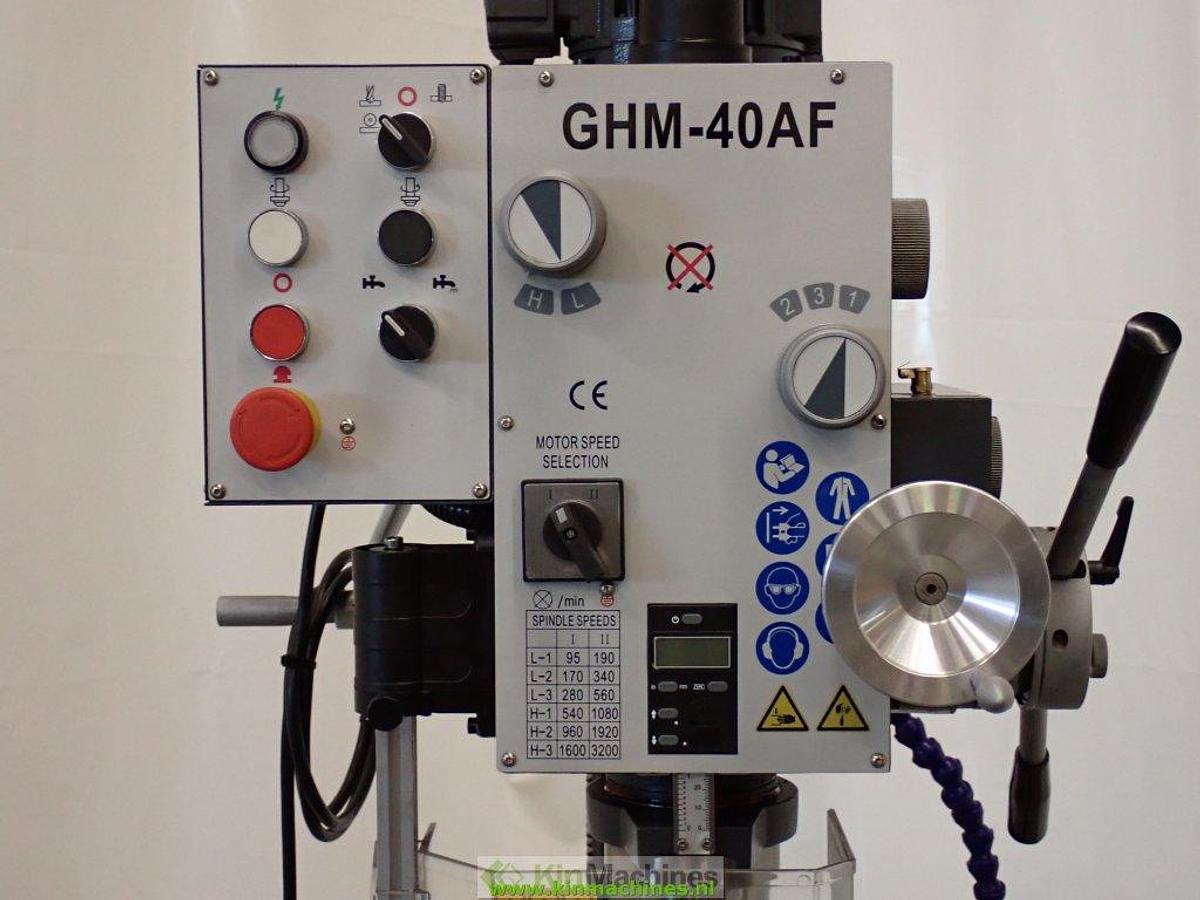

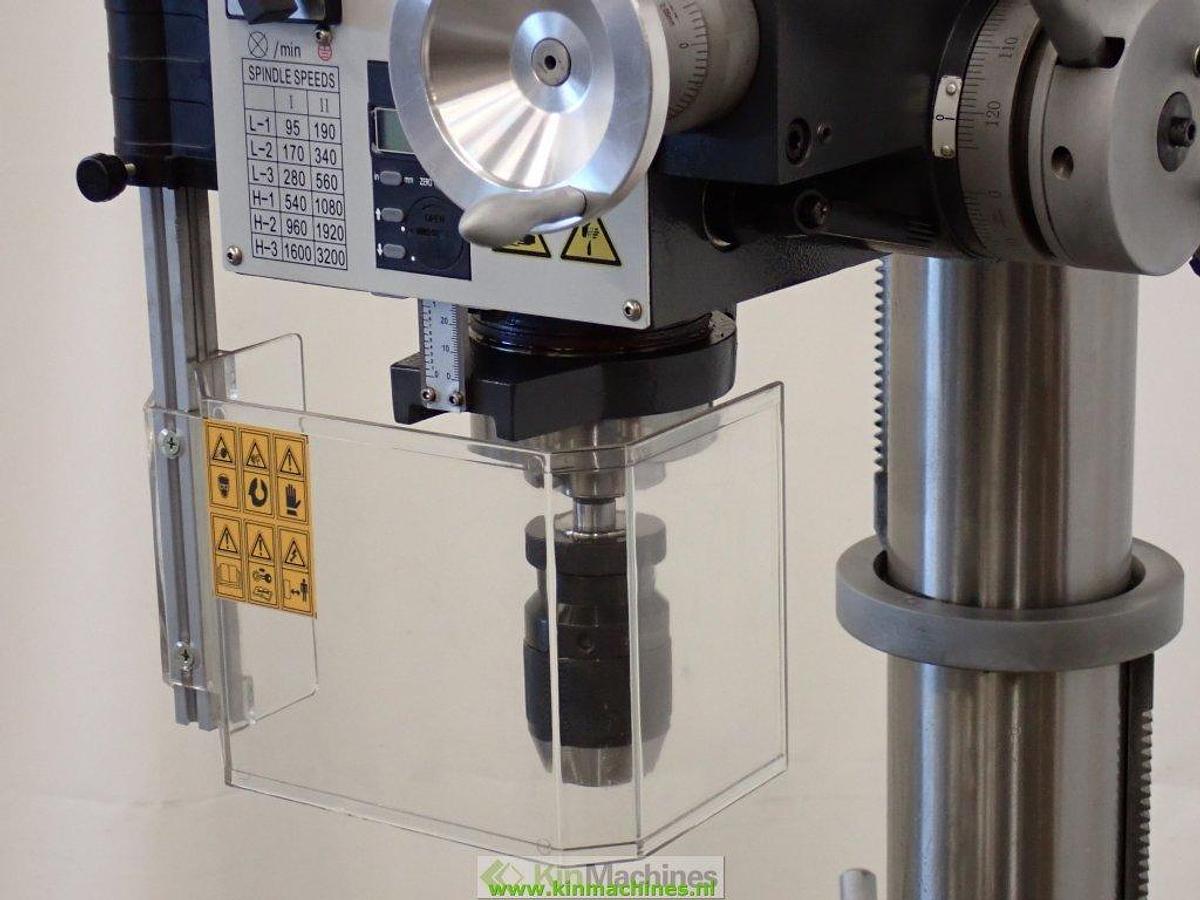

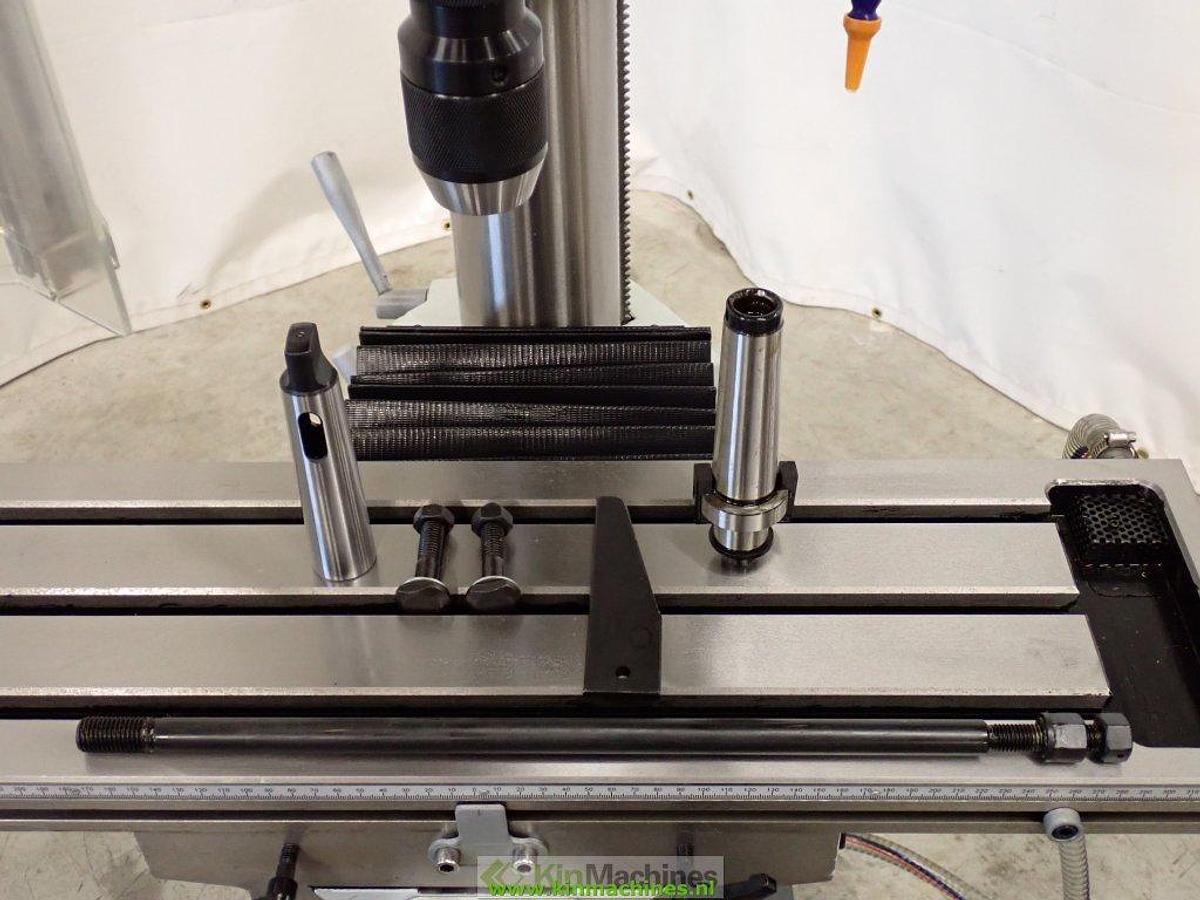

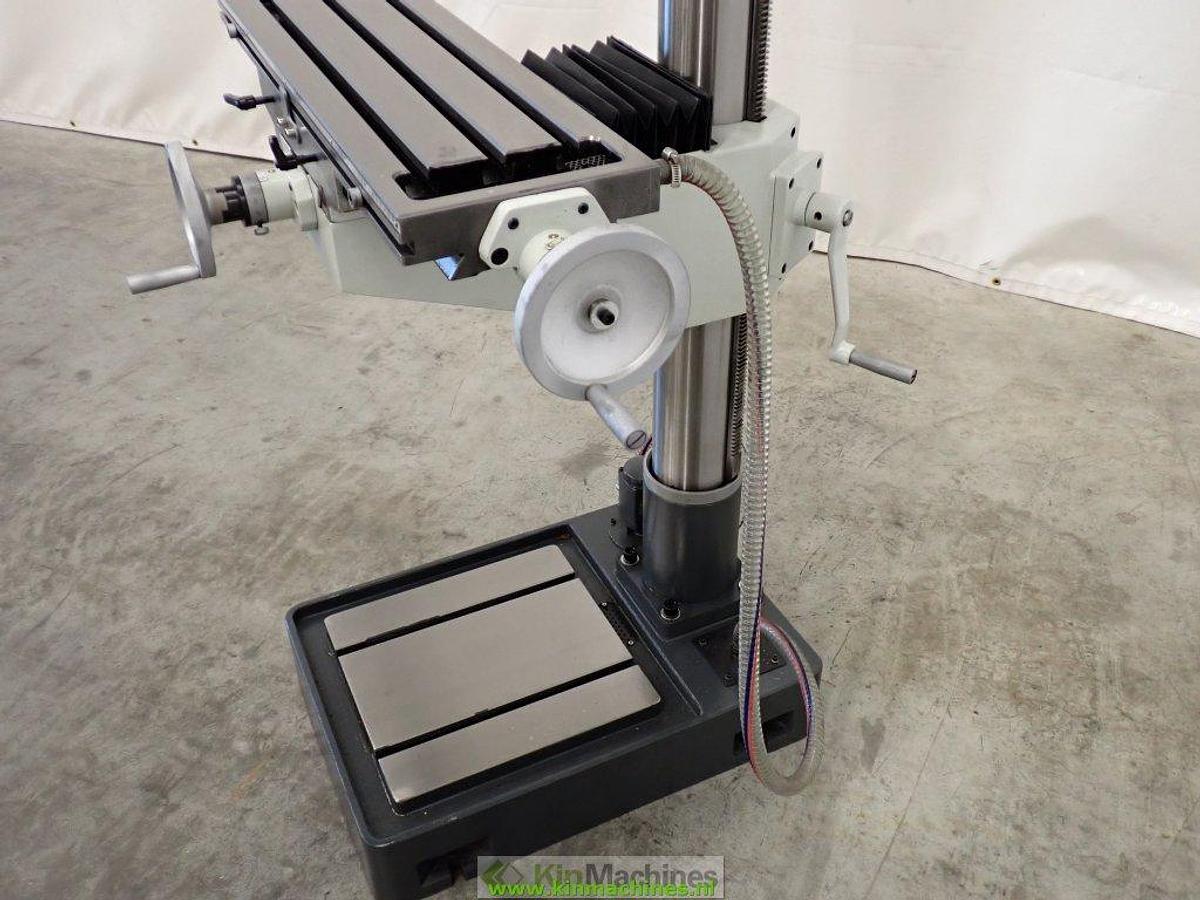

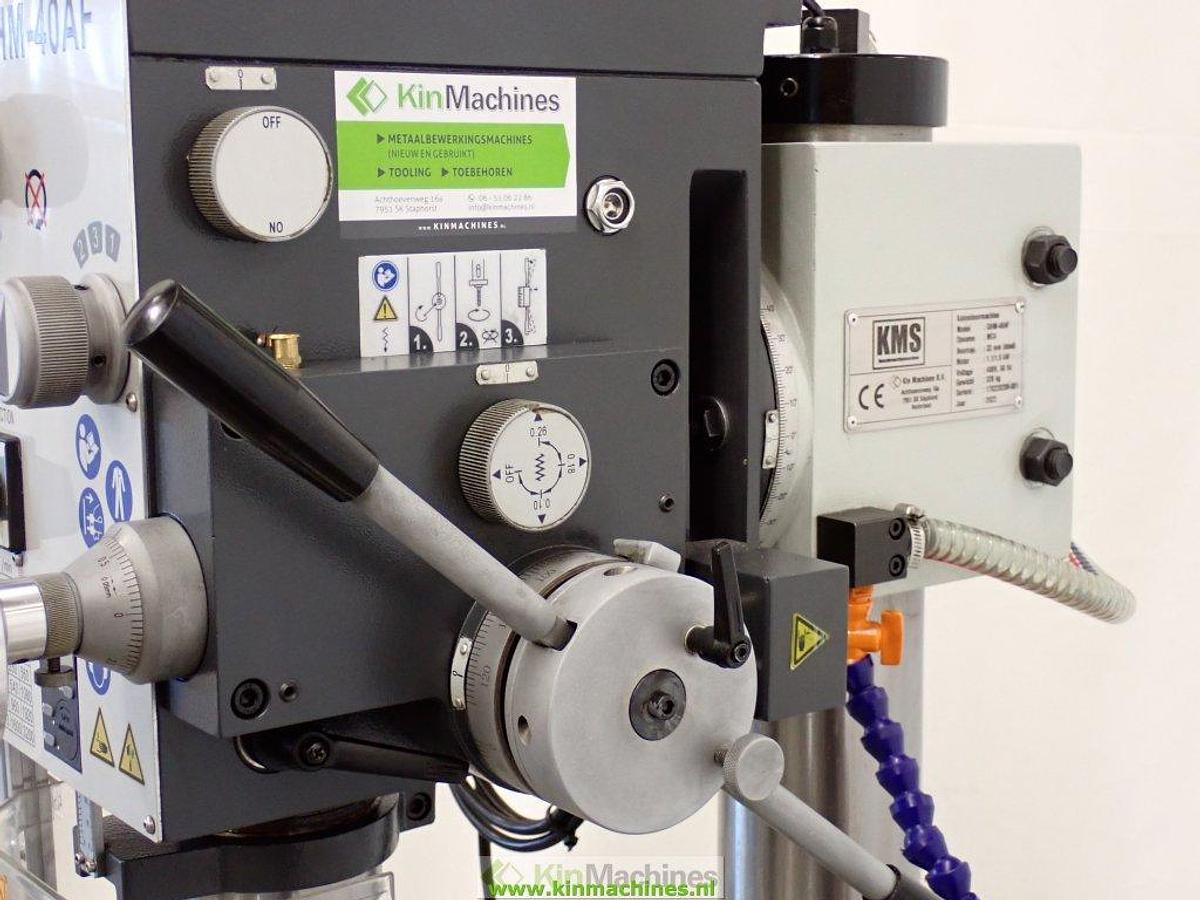

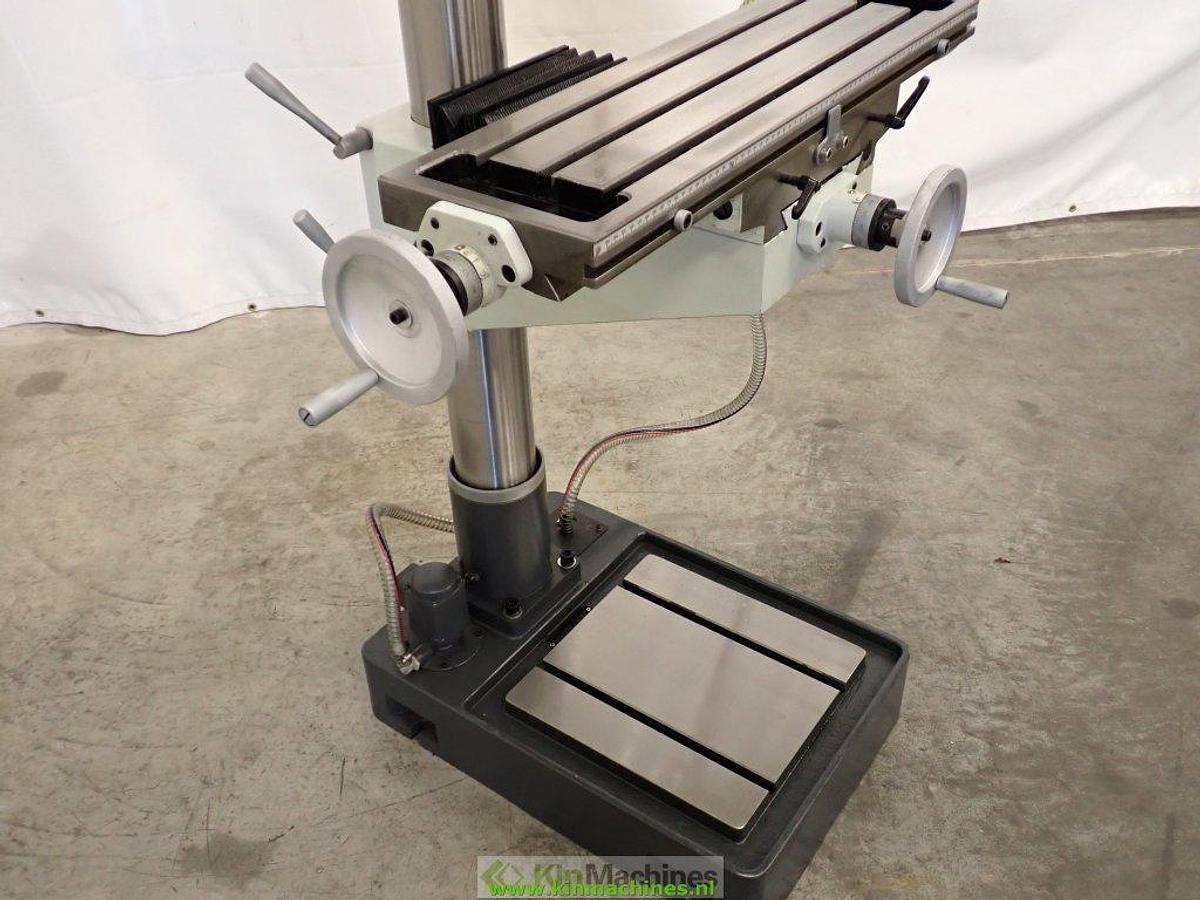

New column drill with cross table. Also suitable for light milling work. Milling head not included, but available. Includes: Automatic power supply Coolant device Filling device Emergency stop Shielding Head can be tilted and moved up/down. (Delivery machine ex Staphorst, ready for operation and tested)

Specifications

ManufacturerKMS
ModelGHM-40AF
ConditionNew
Spindle mountMC4
SoortColumn Drilling machine
Drilling capacityØ 32 mm (Steel St-37)
Column diameterØ115 mm
Distance spindle - column280 mm
Max. distance spindle to table630 mm
Max. distance spindle to base1180 mm
Spindle stroke120 mm

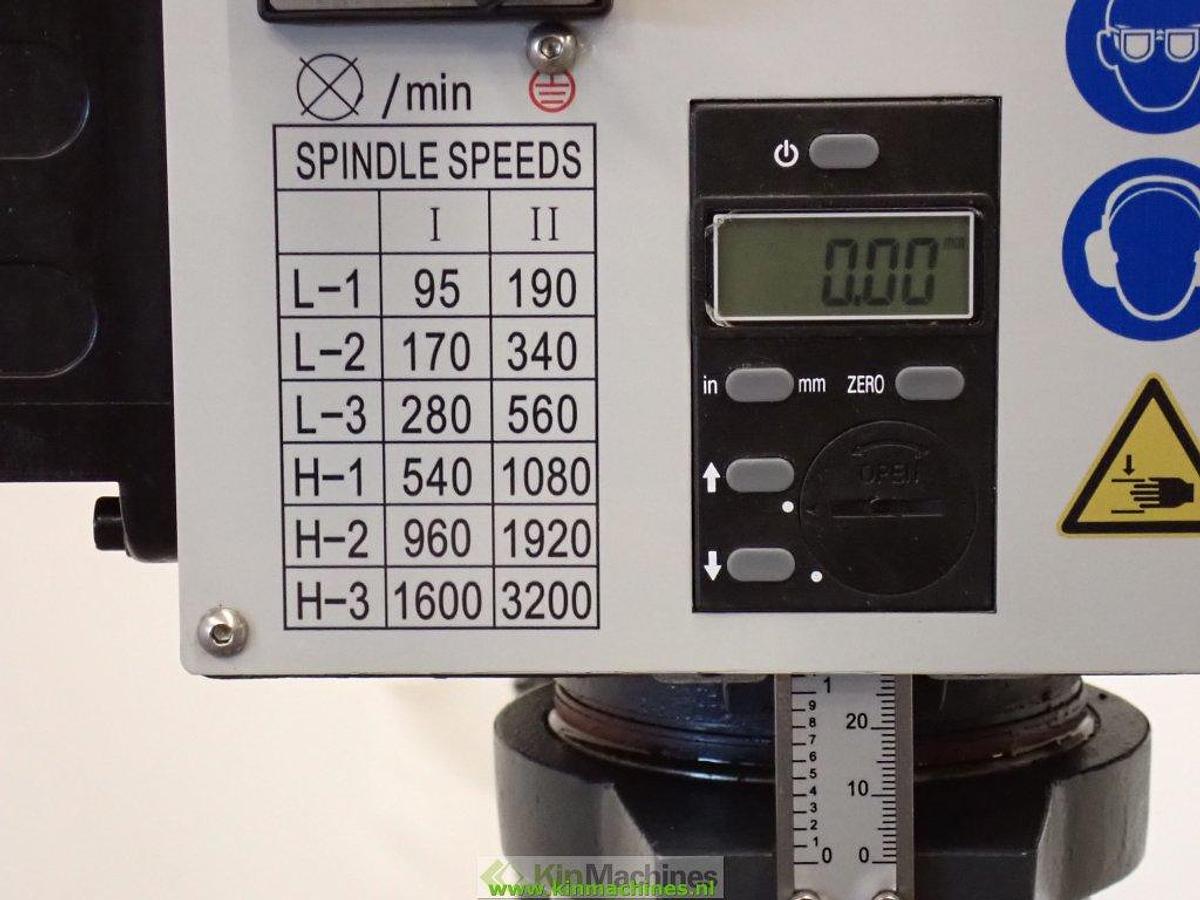

Speeds12 (95 - 3200 rpm)

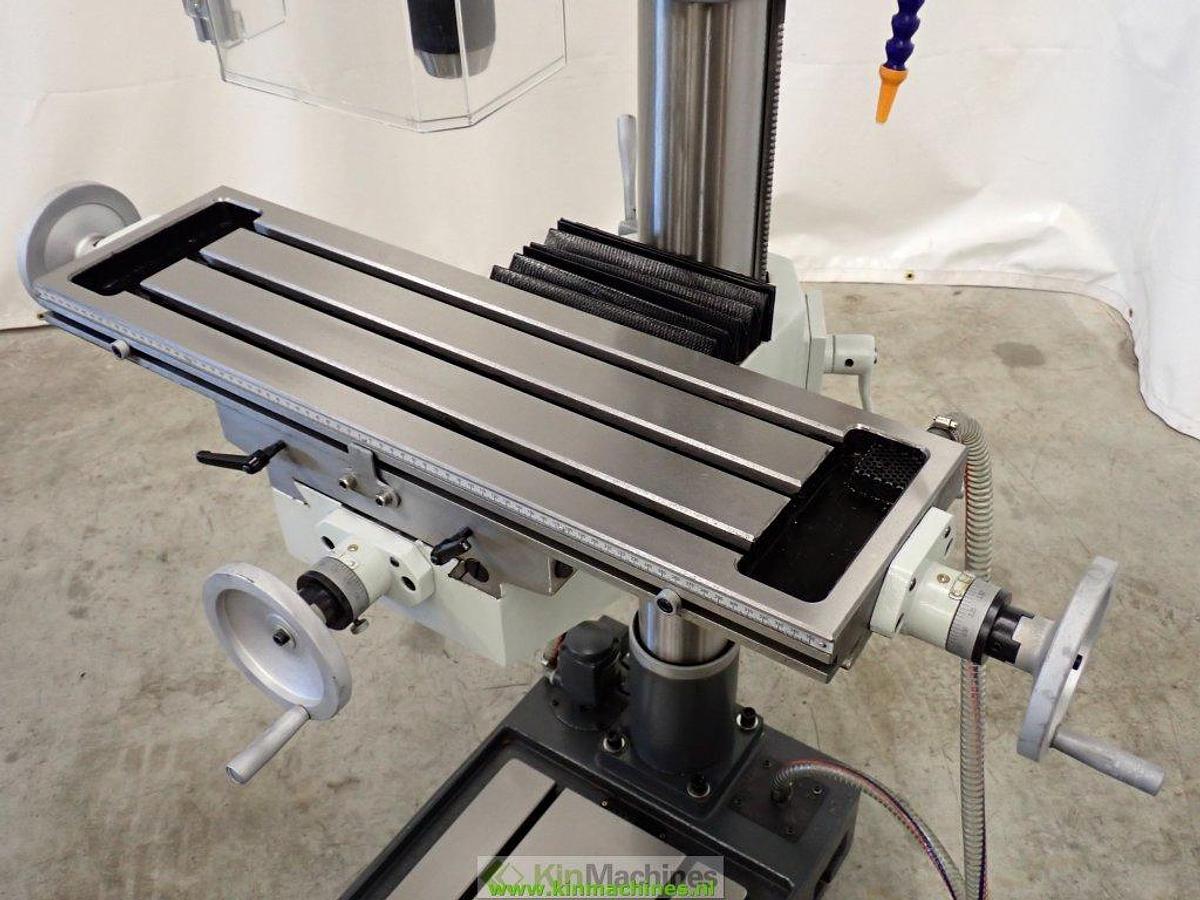

Table size730 x 210 mm
Displacement cross table480 x 195 mm
Weight320 kg
Engine power1.1 / 1.5 kW
