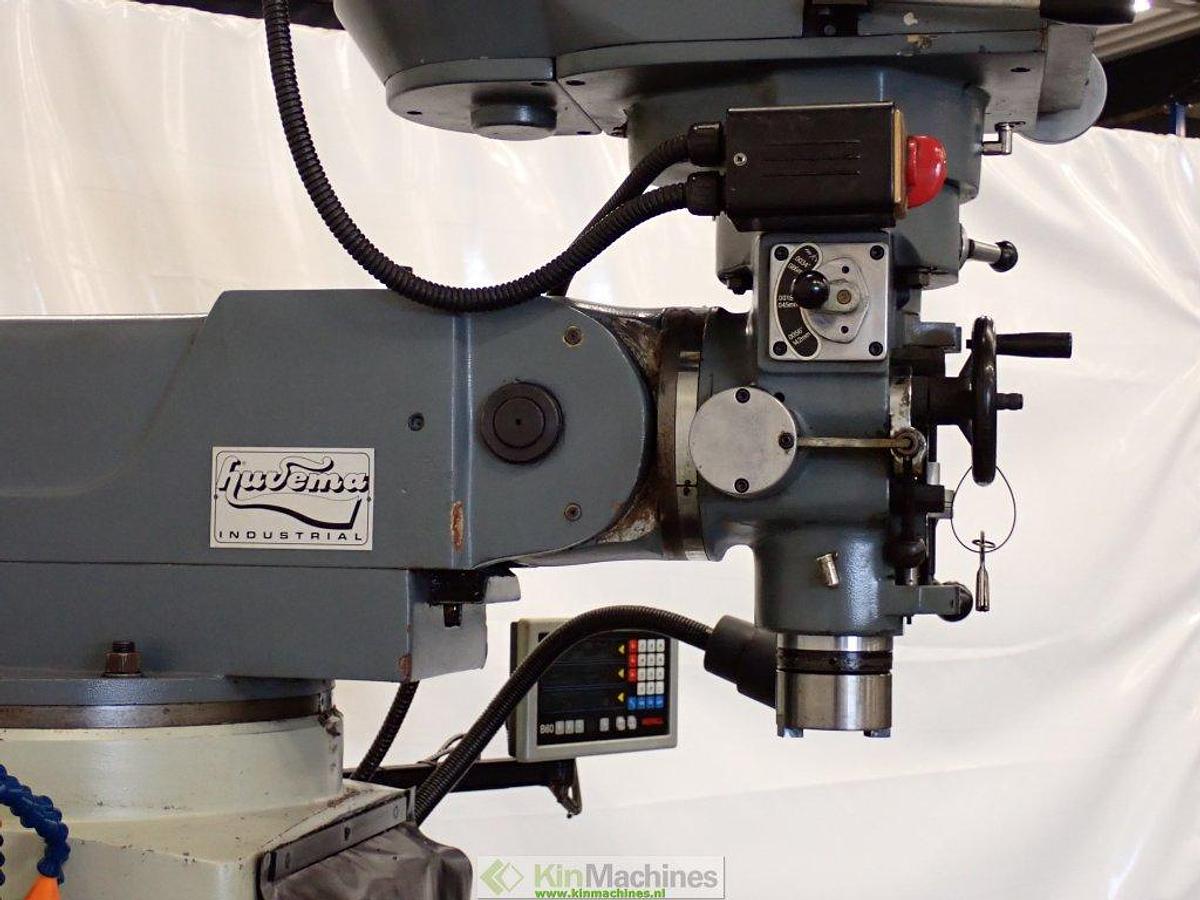

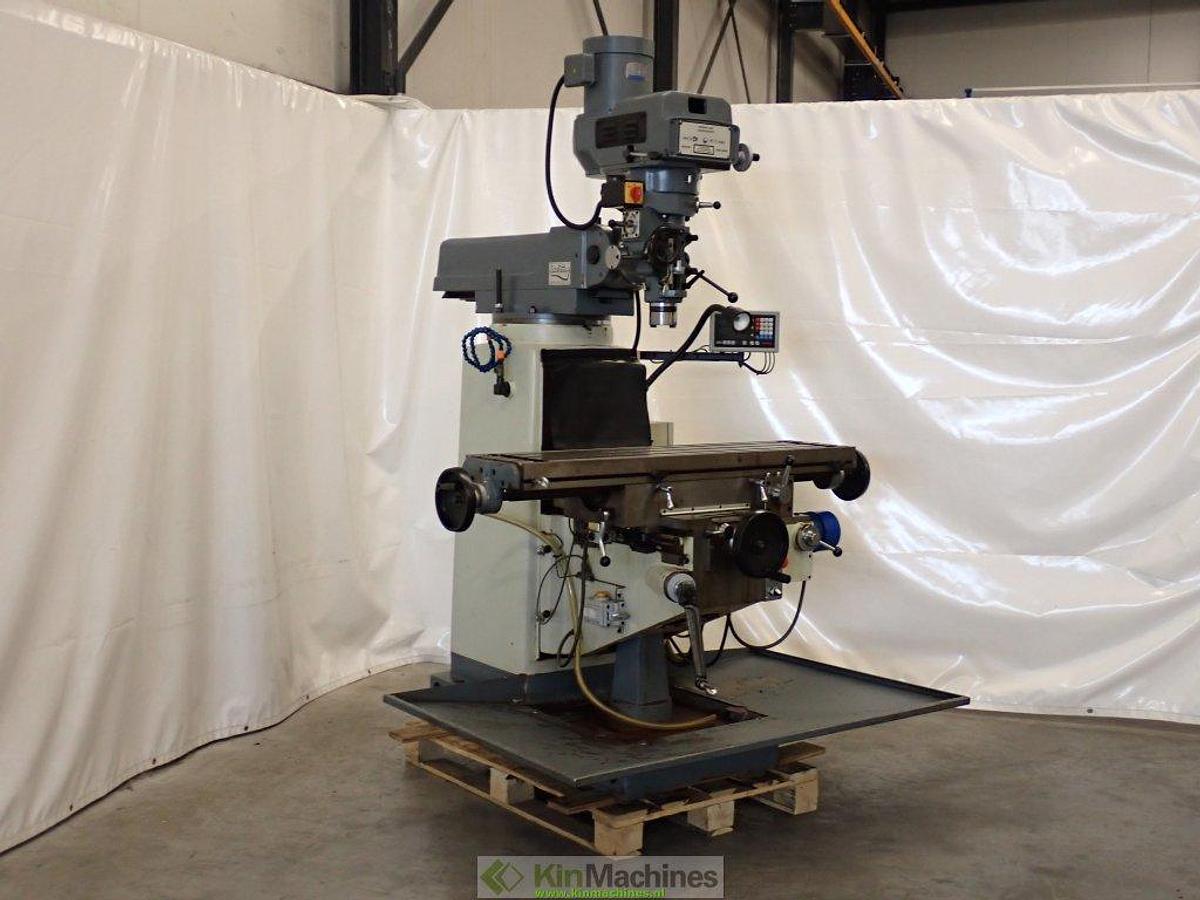

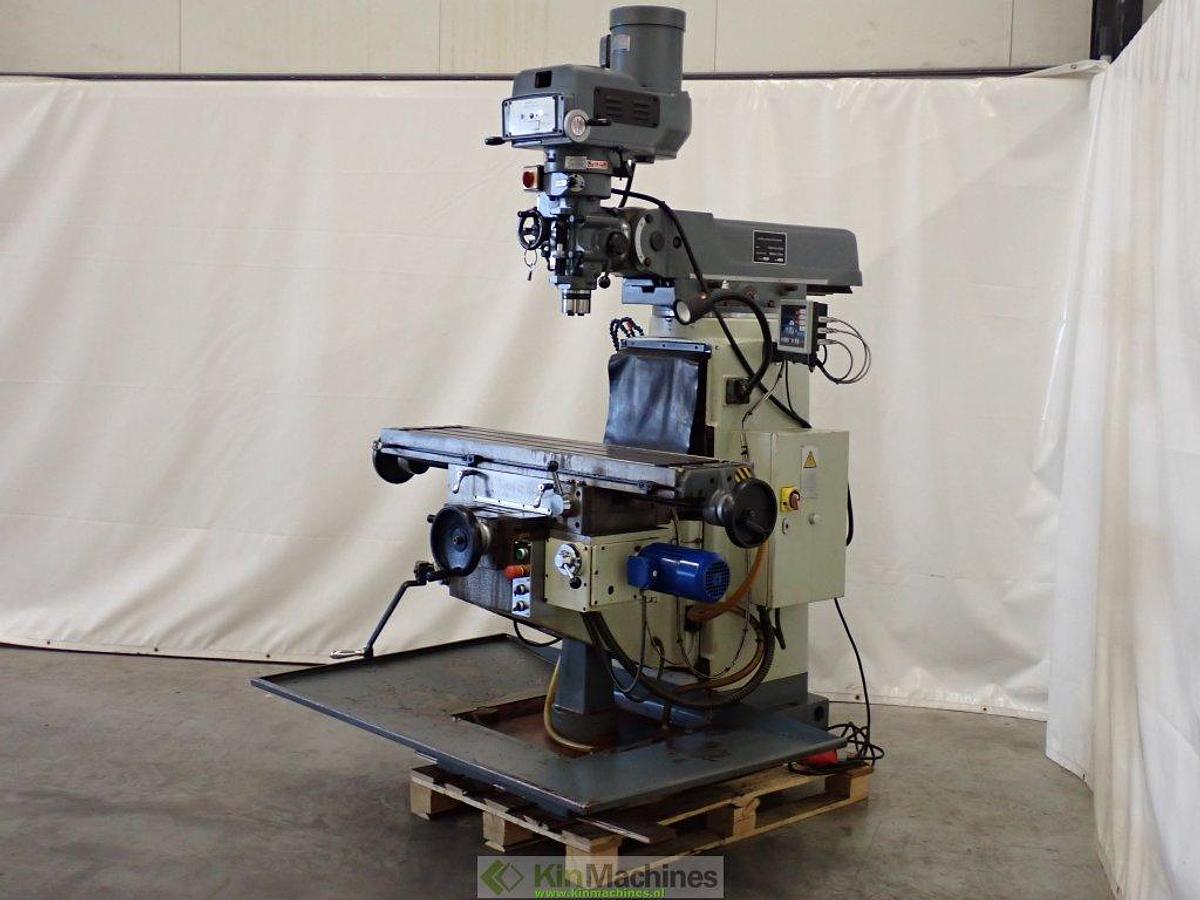

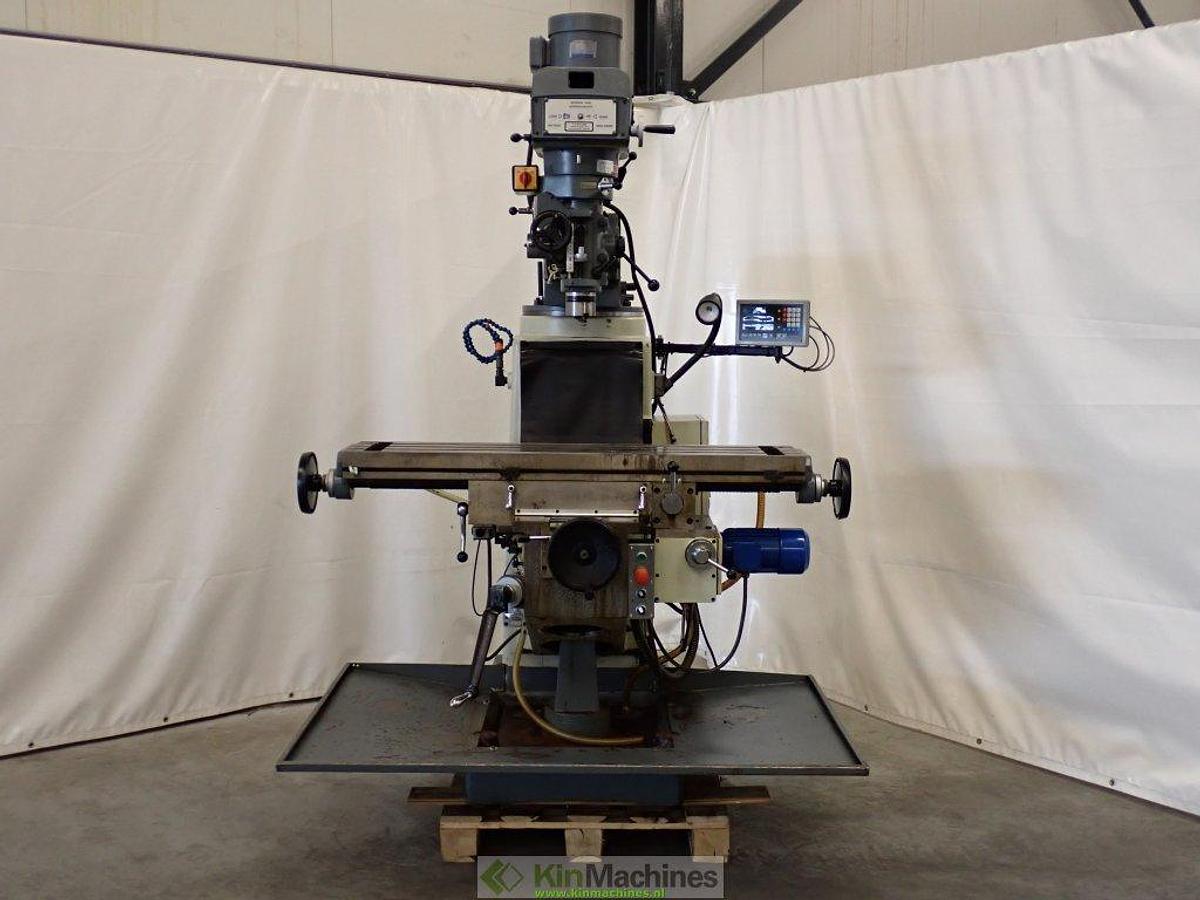

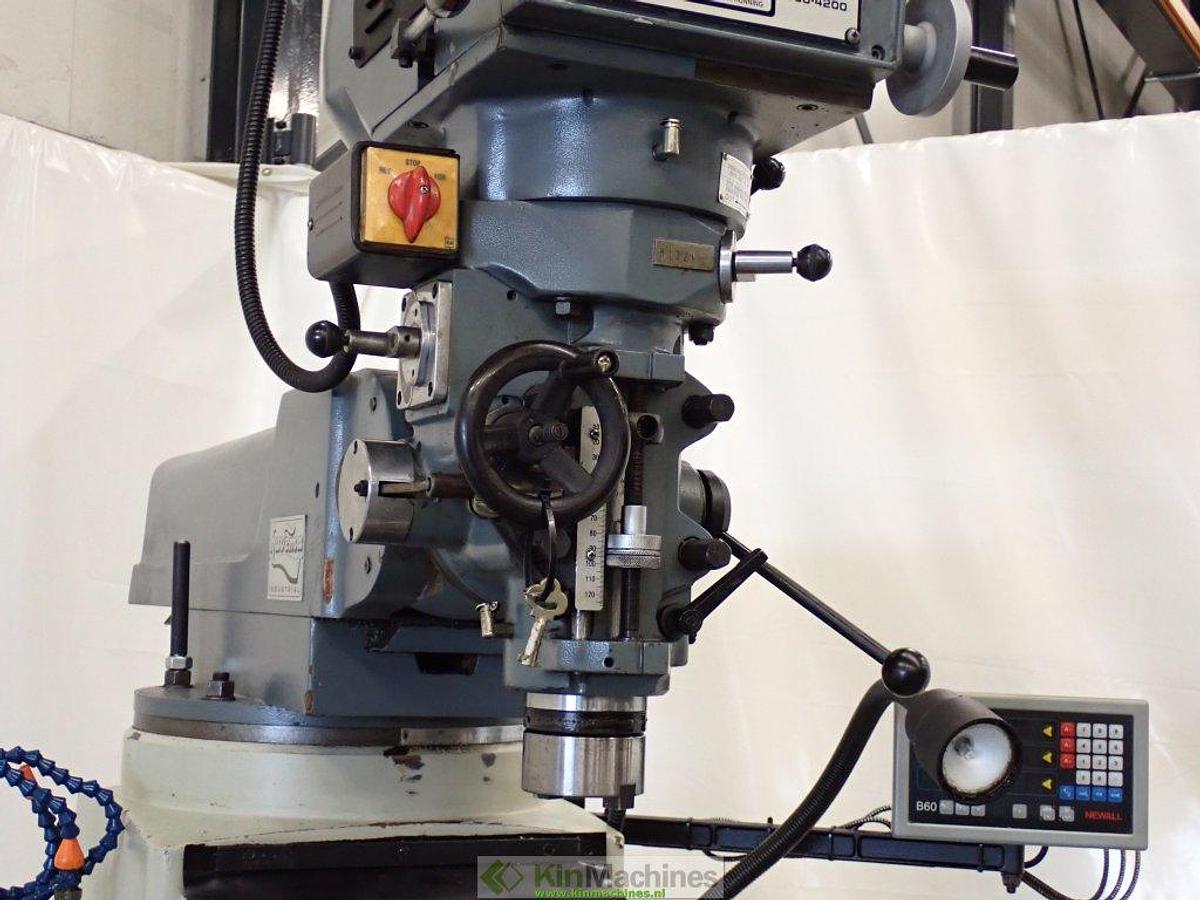

Huvema FG50 milling machine
Sold
Huvema FG50 milling machine
€3,762 (EUR)
Description
Used milling machine from Huvema with digital readout on 3 axes.
Equipped with automatic longitudinal and transverse feed, spindle feed.
Variable adjustable spindle speeds with a wide range.
Neat, working machine for various milling and drilling work.
Specifications
| Manufacturer | Huvema |
| Model | FG50 Vario |
| Year | 2006 |
| Condition | Used |
| Mains voltage | 400V |
| Kind | Milling machine |
| Engine | 5 hp / 3.7 kW |
| Spindle recording | ISO40 |
| Spindle speeds | Variable, 60 - 4200 RPM |
| Spindle stroke | 130 mm |
| Spindle power supplies | 3 (0.04 / 0.08 / 0.16 mm/omw.) |
| Distance spindle to table | 80 - 540 mm |
| Distance spindle center to column (unloading) | 355 - 825 mm |
| Displacements x / y / z | 650 / 400 / 350 mm |
| Displacement upper slide | 630 mm |
| Table feeds | 20 / 30 / 45 / 66 / 104 / 152 / 225 / 346 mm/om. |
| Machine dimensions | ± 2.5 x 1.8 x 2.2 m. |
| Machine weight | ± 1500 kg |
