Lagun FTV-4
Sold
Lagun FTV-4
€5,500 (EUR)
Description

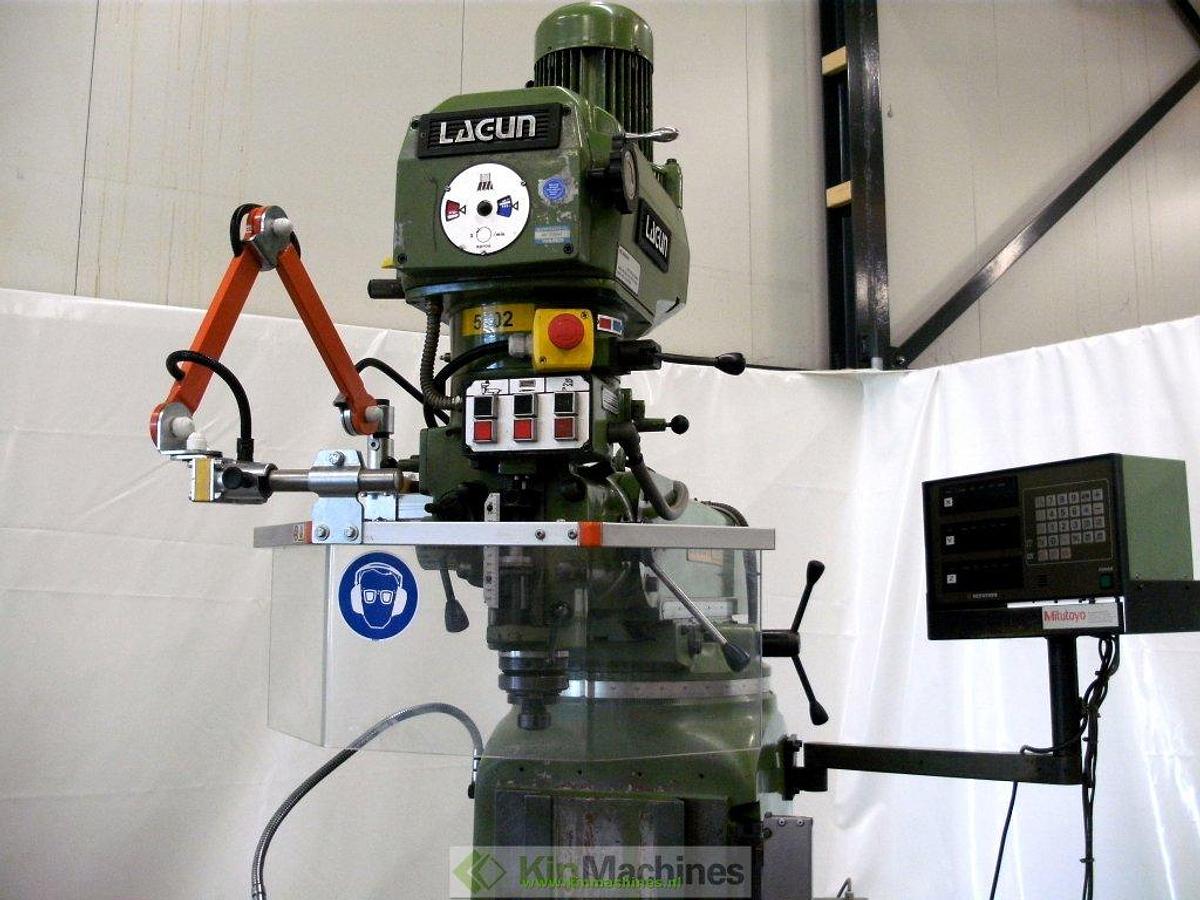

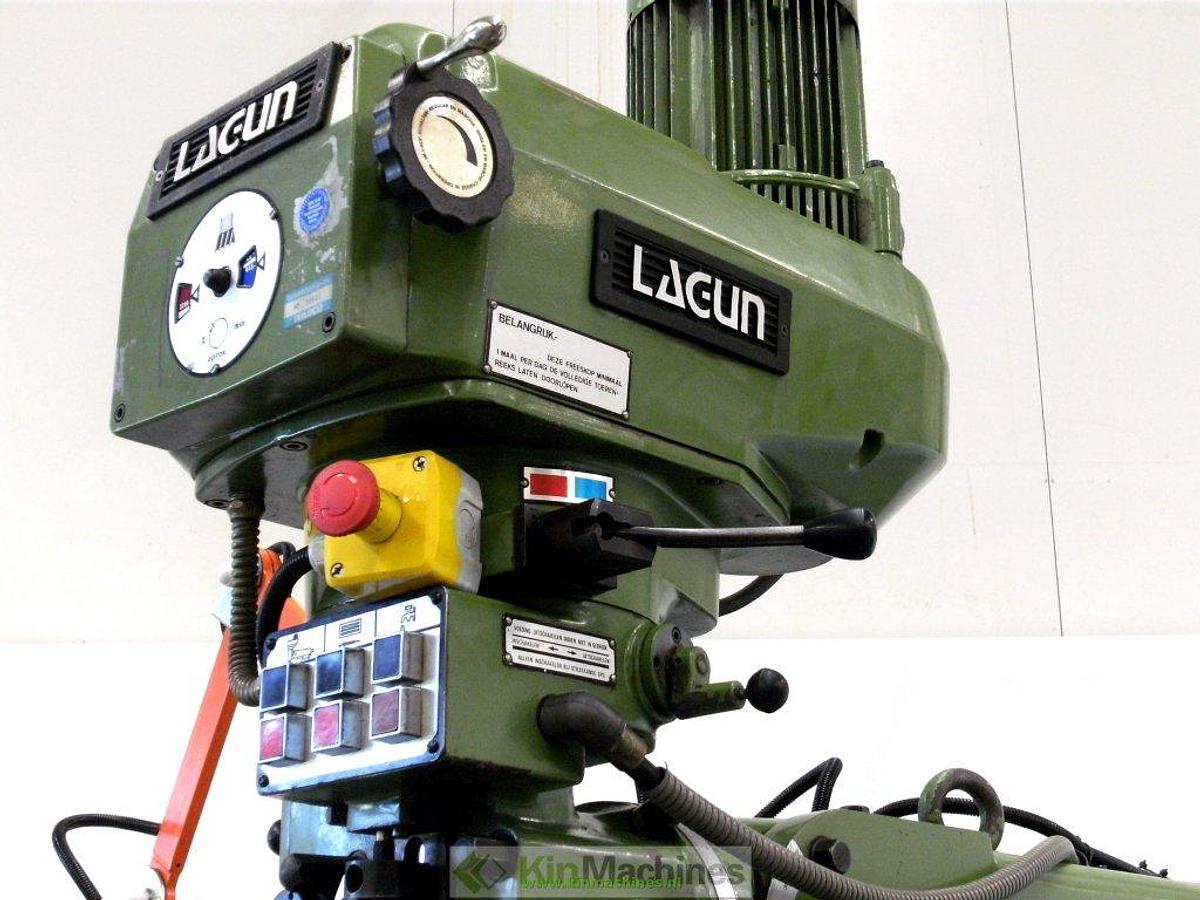

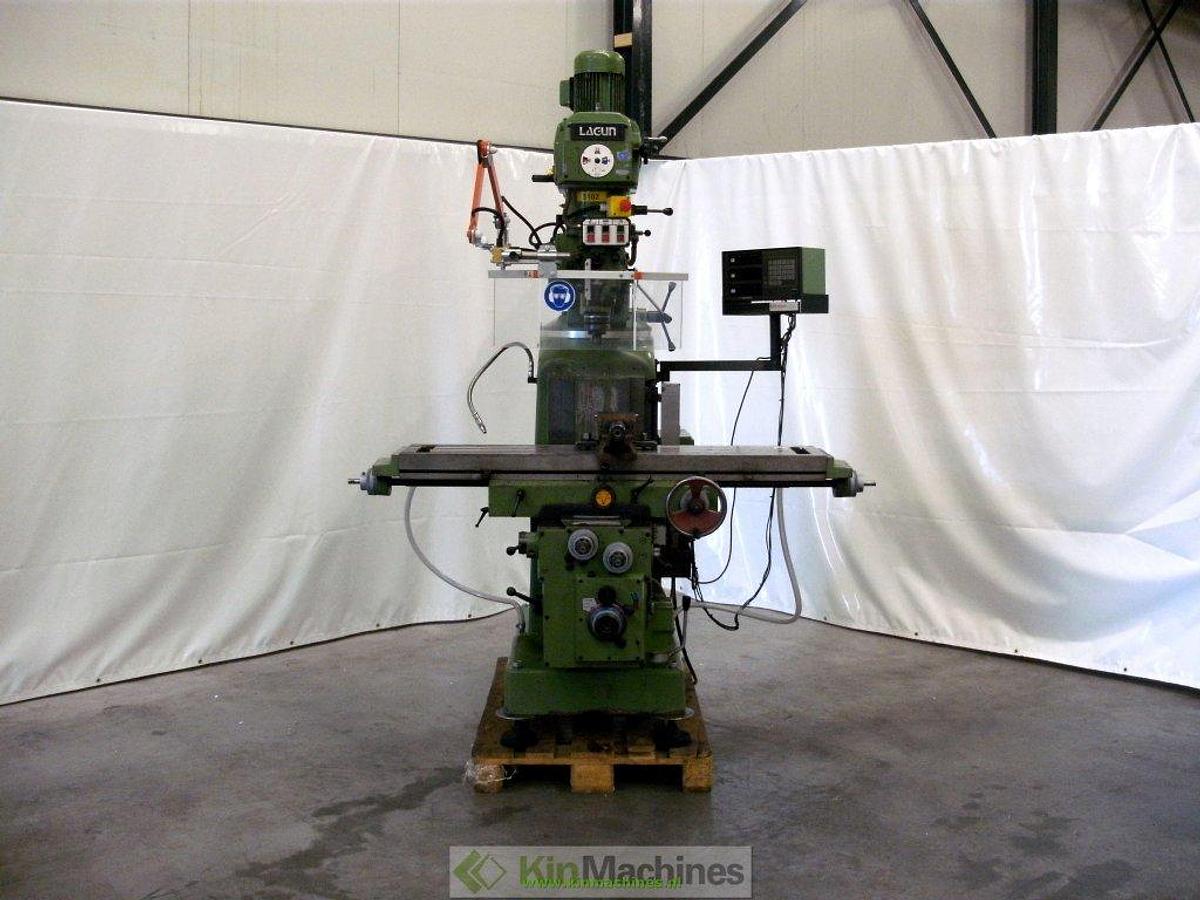

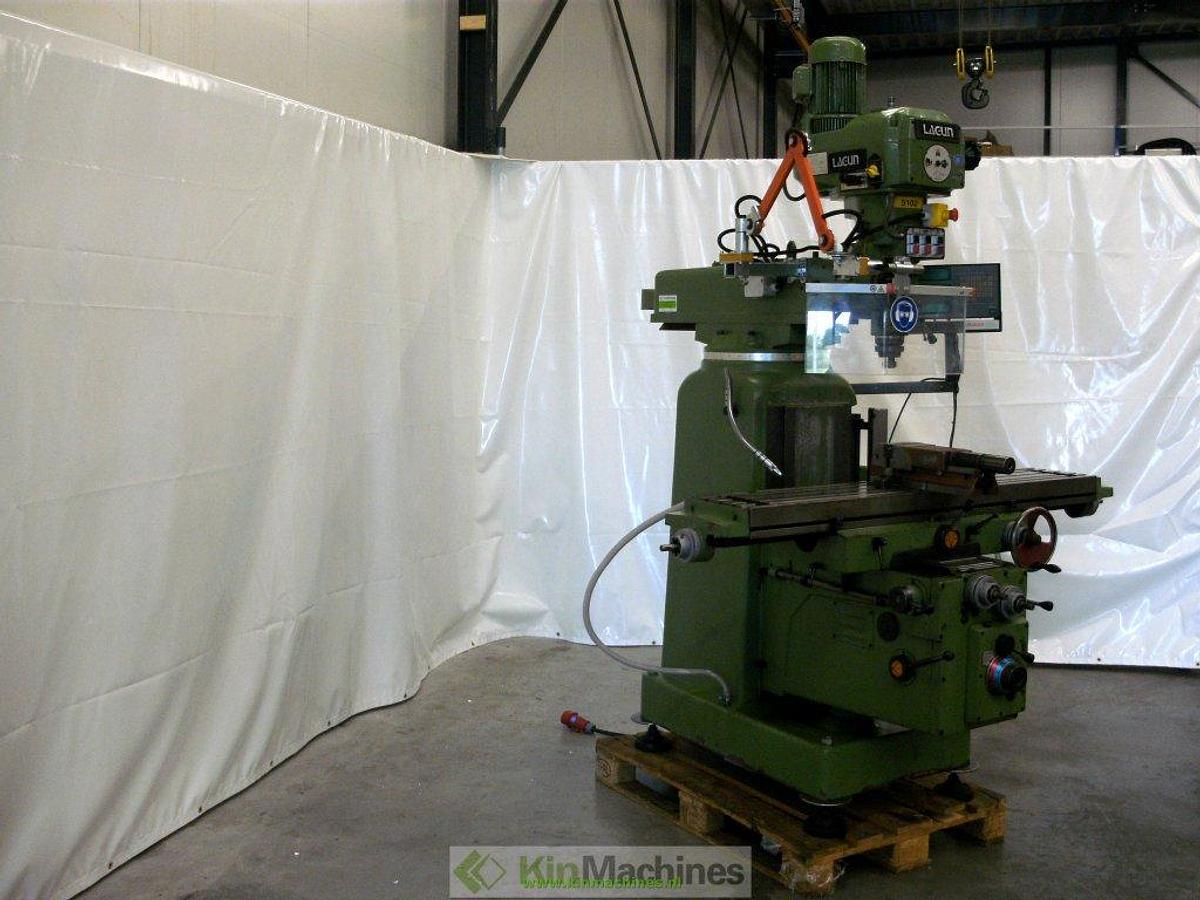

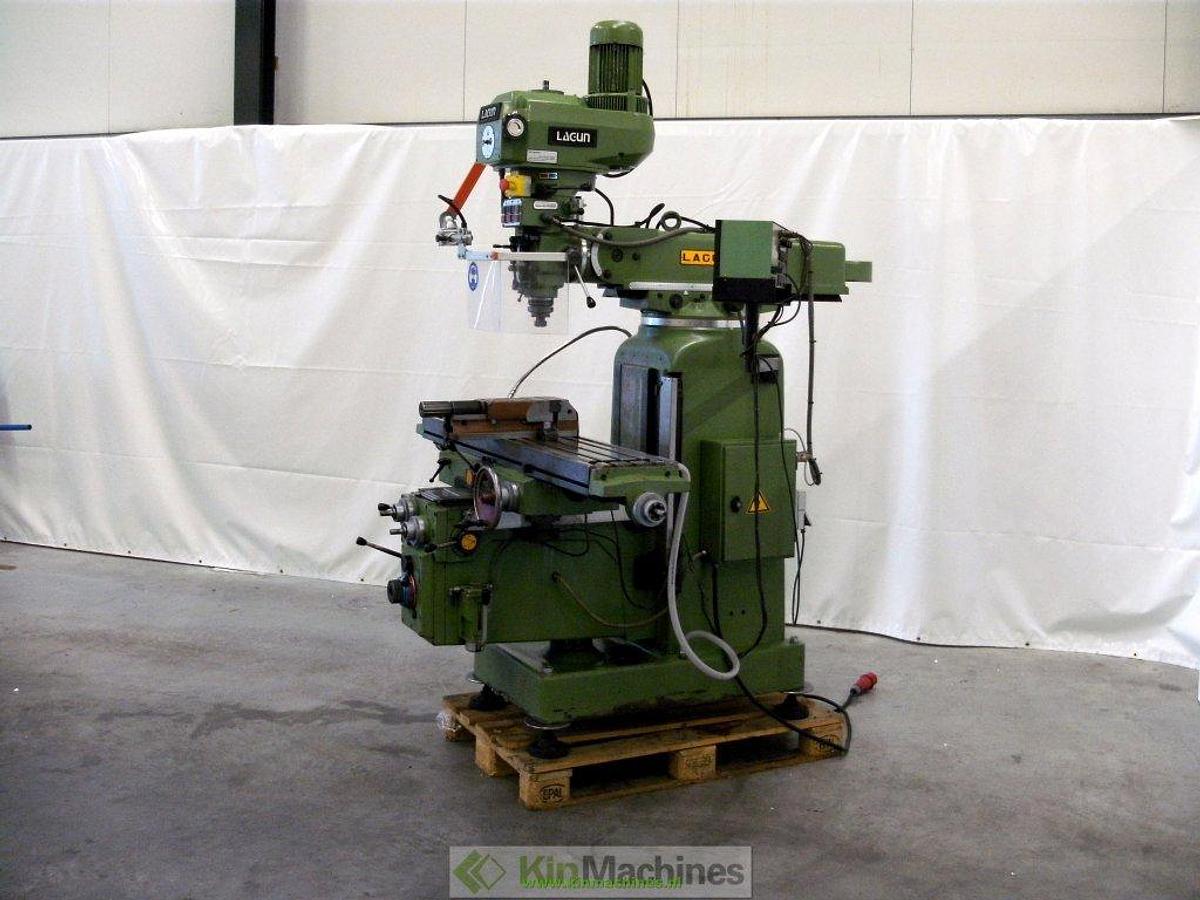

Very neat Lagun milling machine with various accessories.
Drive belt in variable head just replaced.
Characteristics:
Drill spindle
Spindle feeds
Table feeds (longitudinal, transverse, height)
Digital readout on 3 axes (Mitutoyo)
Variable spindle speed
Cooling pump
Emergency stop and guards working
To belong:
Heavy milling clamp
ISO 40 collet chuck + collets 2 - 16 mm
Ageha Zeatz turntable 320 mm
Positioning table with three-jaw chuck Ø160 mm
Corner plate ± 175 x 190 mm
(Video machine at the bottom of page)
Specifications
| Manufacturer | Lagun |
| Model | FTV-4 |
| Condition | Used |
| Mains voltage | 400V |
| Table dimensions | 1372 x 280 mm |
| T-slots (number and width) | 3 x 16 mm |
| Distance between slots | 63 mm |
| Table movements | Along 800 mm |
| Cross 345 mm | |
| Head displacement | 570 mm |
| Longitudinal and transverse feeds | 12 (12 - 576 mm) |
| Height feeding | 12 (3.6 - 173 mm) |
| Rapid | Along and across 1650 mm |
| Spindle recording | ISO 40 |
| Spindle speeds | Variable (50 - 3750 rpm) |
| Head rotatable left / right | 90 ° |
| Head can be rotated forwards backwards | 45 ° |
| Spindle feeds | 3 (0.04 / 0.08 / 0.16 mm) |
| Spindle stroke | 127 mm |
| Min / max distance center spindle - frame | 130/700 mm |
| Max distance spindle - table | 415 mm |
| Motor power milling head | 3 HP |
| Max. workpiece weight | 250 kg |
| Machine weight | 1450 kg |
| Item no. | 6922 |
