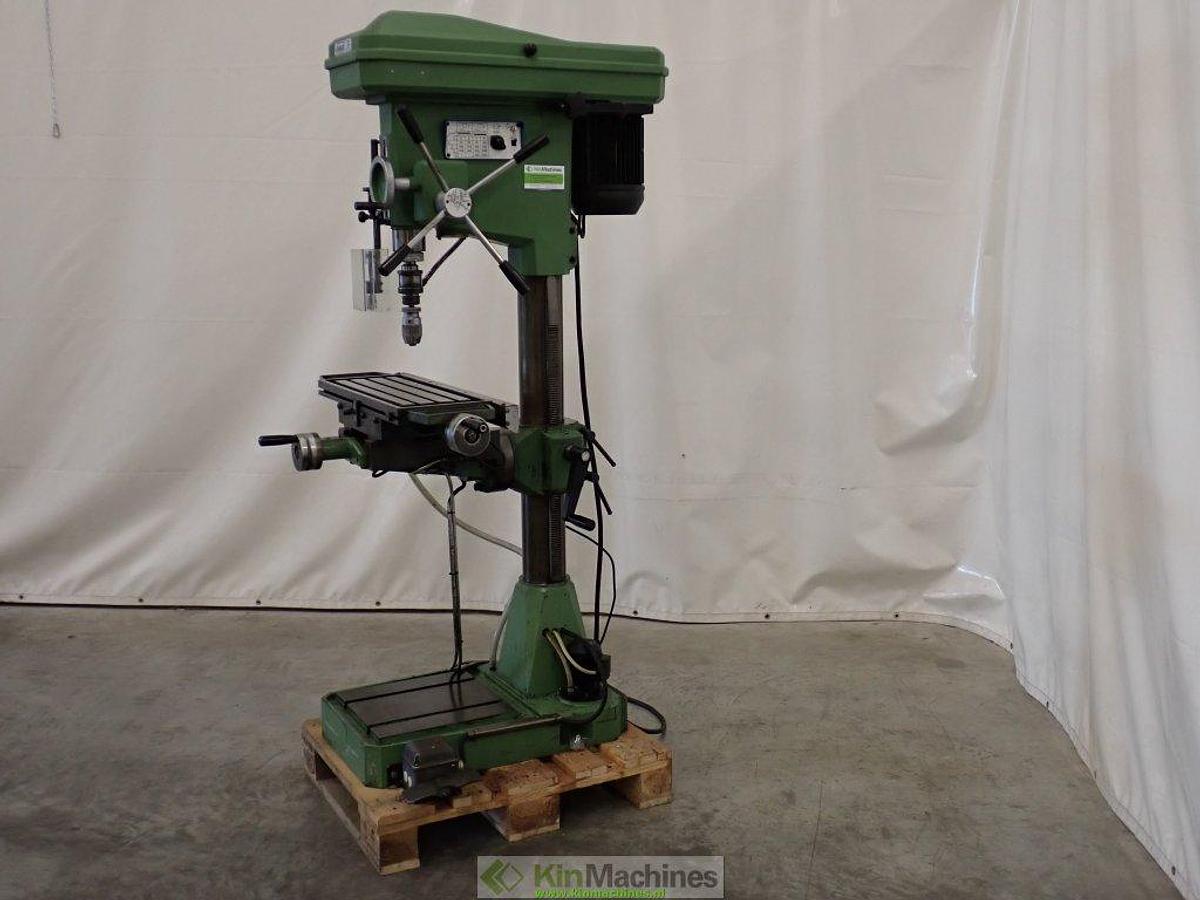

Column drilling machine with cross table and digital readout | Bimak Mod 35 MT/C

Column drilling machine with cross table and digital readout | Bimak Mod 35 MT/C

€2,750 (EUR)

Prijs
Ex.btw. / af Staphorst
Verzendkosten
Op aanvraag
Levering
Uit voorraad

Available quantity:1

Description

Very neat Bimak column drill with cross table. Equipped with Mitutoyo digital readout on 2 axes. Left/right rotation by foot pedal, very fast changeover. Laip quick change system with 10 holders (2x chuck, 7x collet holder, 1x centering point).

Specifications

ManufacturerBimak
ModelMod 35 mt c
ConditionUsed
Mains voltage400V
SoortColumn Drilling machine
DriveV-belt
Spindle mountMC4
Spindle stroke150 mm
Automatic spindle feedNo
Turning speeds14 ( 45 - 1650 rpm )
Digital readoutMitutoyo
Cooling pumpYes
Left/right turningYes
Dimension of cross table600 x 240 mm
Machine dimensions940 x 1100 x 1850 (Width x Depth x Height)
Space required due to moving cross table1420 mm
Engine:0.8 / 1.5 kW
