Plasma cutter | 70A | Soldatech PL70HG

Plasma cutter | 70A | Soldatech PL70HG
€800 (EUR)
or
Call +31 655 062 286
Description

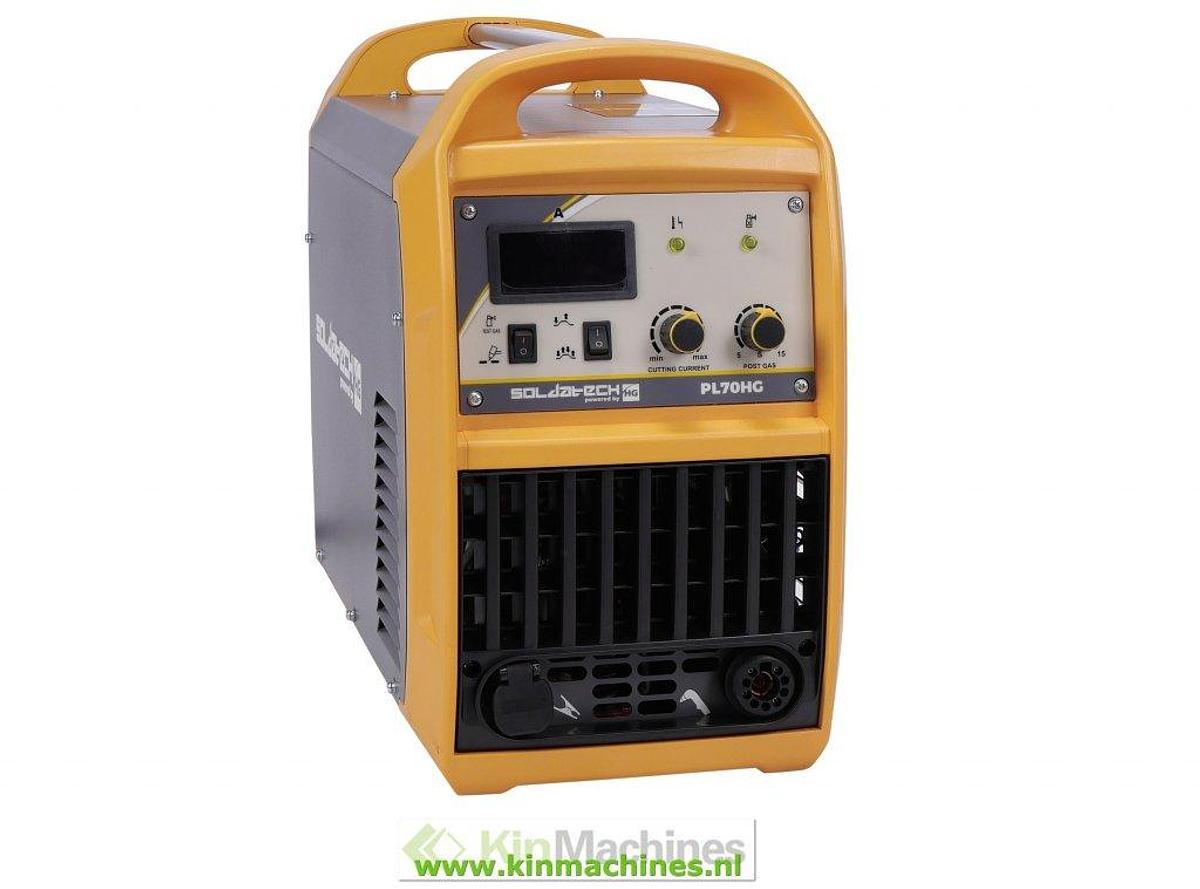

Plasma cutter
This Soldatech
powered by HG
plasma cutter cuts various materials with high-quality results. The PL70HG is a compact, powerful and easy to operate plasma cutter that features Pilot ARC pre-ignition. This in combination with the HF ignition ensures that this cutter ignites very easily and cuts through rusted, coated or textured material up to 25mm with ease.
The PL70HG features a user-friendly control panel and can be adjusted even during cutting operations to achieve the best cutting result.
Modern IGBT inverter technology not only ensures that the PL70HG delivers durable performance with more power, but it also makes the unit lightweight and portable. Overload protection combined with a built-in fan prevents overheating and ensures high-quality welding performance for a long time.
Ideal for cutting low alloy steels, stainless steels and aluminum alloys.
Each PL70HG comes standard including:
Soldatech PL80M5 plasma torch with 5m cable
Workpiece clamp with 2m 16mm² cable
4m gas line with hose clamps
5-pin 32A plug with 2.5m 4×2.5mm² cable
Standard 9mm Dinse cable fittings
Specifications
Manufacturer | Soldatech |
Model | PL70HG |
Condition | New |
Mains voltage | 400V |
Soort | Plasma cutter |
Frequency | 50/60 Hz |
Fuse | 20A B-car |
Input power | 9.4 kVA |
Power-on time (at 20 degrees ambient temperature) | 100% - 70A |
Power-on time (at 40 degrees ambient temperature) | 60% - 70A |
Cutting current range | 25 - 70A |
Max. no-load voltage | 330 V |
Max cutting thickness | 25 mm |
Recommended cutting thickness | 17 mm |
Air consumption | 220 L/min |
Protection class | IP21S |
Dimensions | 550 x 245 x 405 mm |
Shipping details
Width | 33.5 cm |
Height | 46 cm |
Length | 70 cm |
Weight | 29 kg |
