TIG Welding machine | AC DC 315A | Soldatech TL315ACHG | Water Cooling

TIG Welding machine | AC DC 315A | Soldatech TL315ACHG | Water Cooling
€2,250 (EUR)
or
Call +31 655 062 286
Description
TIG AC/DC welding inverter 315A / IGBT TIG AC/DC inverter / welding device / welding machine

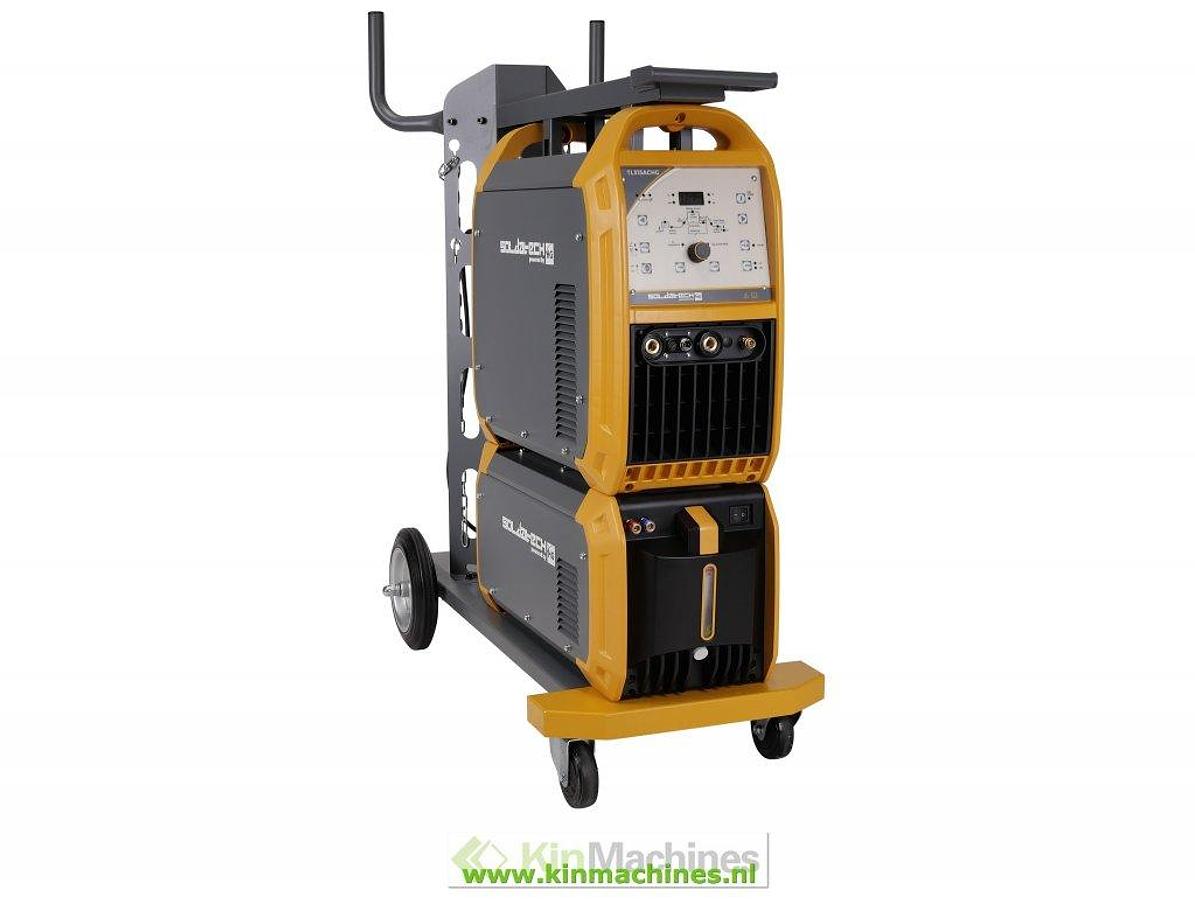

This Soldatech
powered by HG
TIG welding machine comes standard with a solid trolley that easily carries a 50L gas bottle and processes a huge range of materials with different welding processes including AC/DC Pulse, TIG and MMA welding. The adjustment and selection buttons make it easy to set all the parameters of the TL315ACHG correctly, ensuring that every welding job is completed with high-quality results.
Modern IGBT inverter technology ensures that the TL315ACHG delivers sustained performance with more power and higher duty cycle. Overload protection combined with a built-in fan prevents overheating and ensures high-quality welding performance for a long time.
The digital infinitely adjustable display shows welding processes and capabilities very clearly. Thanks to the HF ignition, the unit starts up at all times without any problems.
The included TLT18M4 torch is water-cooled for long service life when welding at high amperage.
The hot-start/anti-stick function quickly increases the welding current so that when ARC welding, the electrode does not stick to the workpiece.
Ideal for welding aluminum, stainless steel, carbon steel, low alloy steel, copper and special aluminum alloys.
Each TL315ACHG comes standard including:
Soldatech TLT18M4 TIG torch with water cooling and 4m cable
Workpiece clamp with 3m 25mm² cable
European dinse couplings 13mm
Gas line of 4m including hose clamp and quick connector (8mm inside diameter)
5-pin 32A plug with 2m 4×2.5mm² cable
Wear parts = 3x collet (1.6 / 2.0 / 2.4mm), 1x collet holder 3.2mm, 3x gas nozzle (6, 7, 8mm), 1x insulation ring, 1x sealing cap short and 1 sealing cap long
Specifications
Manufacturer | Soldatech |
Model | TL315ACHG |
Condition | New |
Mains voltage | 400V |
Soort | TIG Welding |
Frequency | 50/60 Hz |
Fuse | 25A B-car |
Input power | 13.8 kVA |
Start-up voltage | 70 V |
Power-on time (at 20 degrees ambient temperature) | 60% - 315A |
Power-on time (at 40 degrees ambient temperature) | 35% - 315A |
Welding current range dc tig | 10 - 315 A |
Welding current range ac tig | 20 - 315 A |
Welding current range mma | 20 - 250 A |
Cooling unit capacity | 6 ltr |
Protection class | IP21S |
Dimensions | 1110 x 520 x 1265 mm |
Weight | 94 kg |
