Stripping bender KMS HPZ 20 (20T)
Stripping bender KMS HPZ 20 (20T)
€7,450 (EUR)
Prijs
Ex.btw. / af Staphorst
Verzendkosten
Op aanvraag
Levering
Uit voorraad
Available quantity:1
or
Call +31 655 062 286
Description

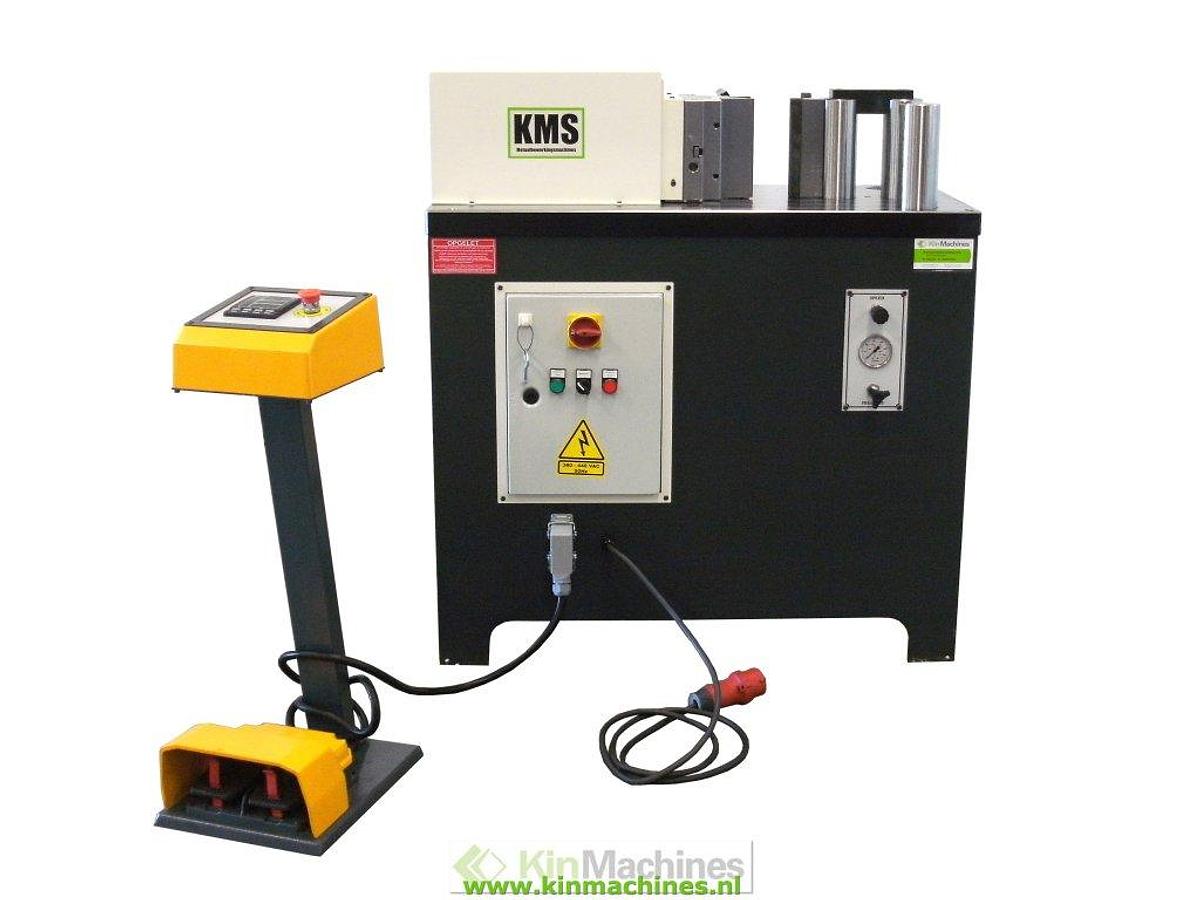

New strip bender with a capacity of 20 Ton.
Standard features include:
Full steel frame.
Stroke adjustment by digital readout.
Step by step or automatic cycle.
Induction hardened and ground tools and pins.
Foot pedal for machine operation.
1 set of tooling (V-groove 60, Knife R5).
English language user manual.
Cut/punch/targeting and bending tools are optional.
Click here for info Optional pipe bender
Machine also available as 10 / 30 / 40 / 50 Ton version
Specifications
| Manufacturer | KMS |
| Model | HPZ 20 |
| Condition | New |
| Capacity | 20 Ton |
| Soort | Strip bender |
| Standard tool height | 200 mm |
| Max. bending capacity st-37 | ± 200x8 mm (V60) |
| A larger V-groove is required for thicker board up to ± 15 mm. | |
| Mains voltage | 400V |
| Motor | 2.2 kW |
| Table dimensions | 480 x 1060 mm |
| Exterior dimensions machine | 530 x 1060 x 1200 mm (lxwxh) |
| Machine weight | 580 kg |
