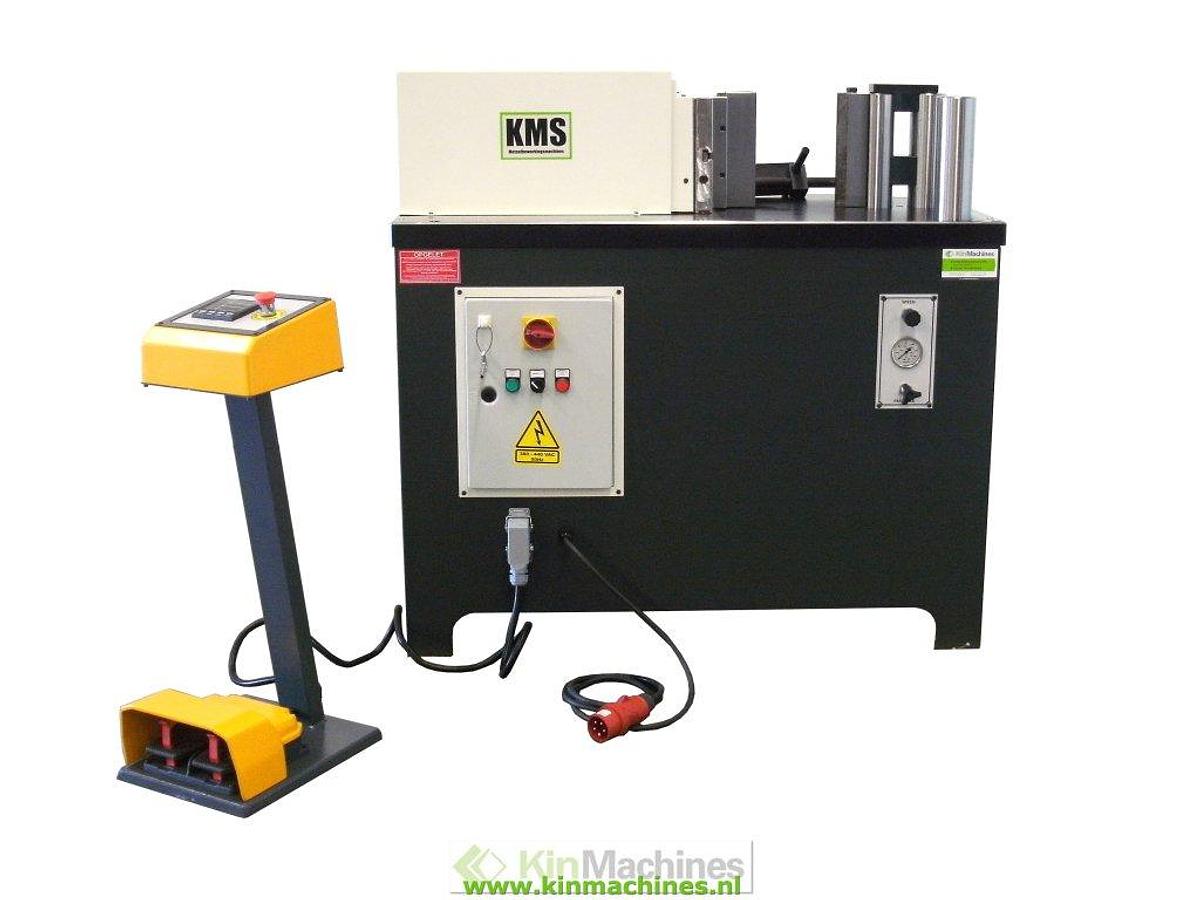

Stripping bender KMS HPZ 30 (30T)
Stripping bender KMS HPZ 30 (30T)
Contact us for price
or
Call +31 655 062 286
Description
New strip bender with a capacity of 30 Ton.
Standard features include:
Full steel frame.
Stroke adjustment by digital readout.
Step by step or automatic cycle.
Induction hardened and sharpened tools and pins.
Foot pedal for machine operation.
1 set of tooling (V-groove 60, Knife R5).
English language user manual.
Cut/punch/targeting and bending tools are optional.
Click here for info Optional pipe bender
Machine also available as 10 / 20 / 40 / 50 Ton version
Specifications
| Manufacturer | KMS |
| Model | HPZ 30 |
| Condition | New |
| Capacity | 30 Ton |
| Soort | Strip bender |
| Standard tool height | 250 mm |
| Max. bending capacity st-37 | ± 250x8 mm (V60) |
| A larger V-groove is required for thicker board up to ± 20 mm. | |
| Mains voltage | 400V |
| Motor | 3 kW |
| Table dimensions | 660 x 1250 mm |
| Exterior dimensions machine | 720 x 1250 x 1230 mm (lxwxh) |
| Machine weight | 850 kg |
