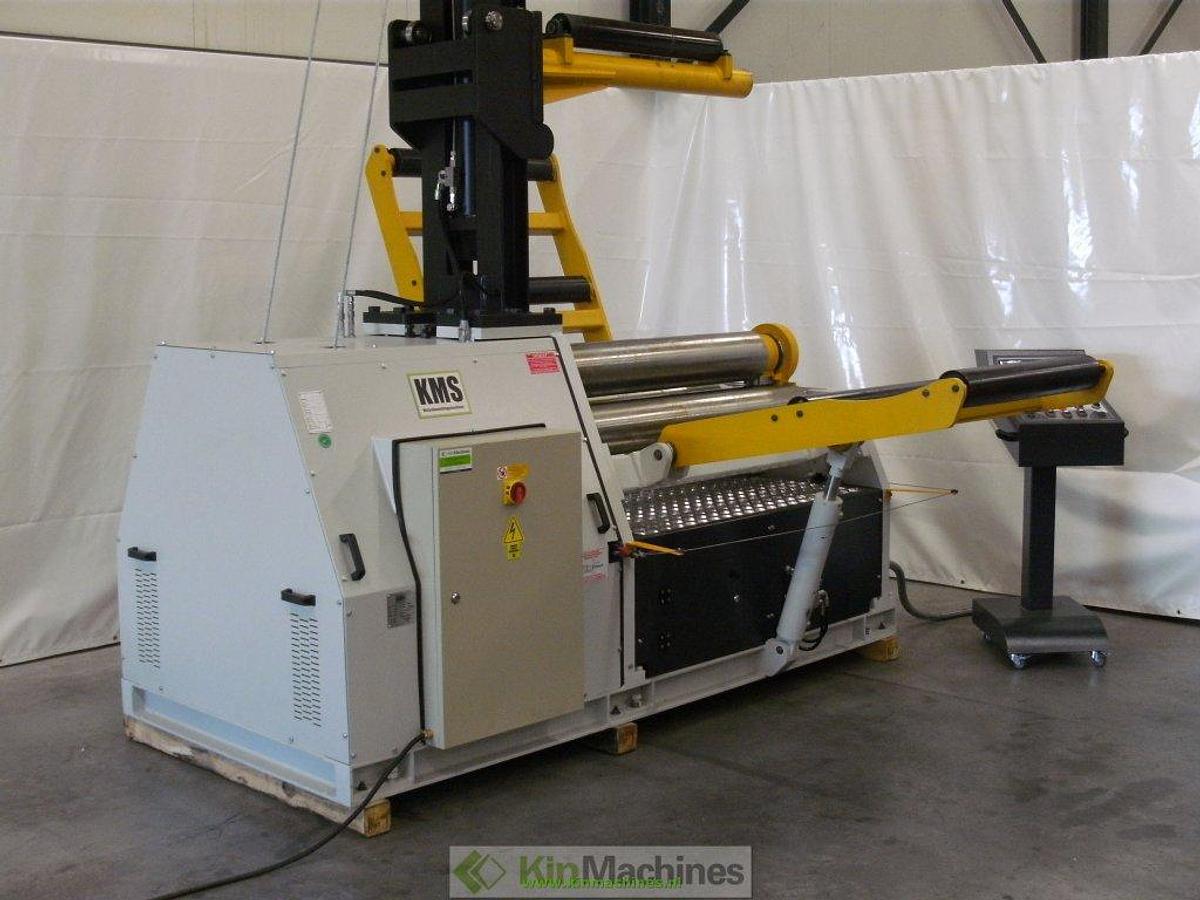

Hydraulic 4-roll plate roller KMS 4R HMR 1270×200 + crane and side support

Hydraulic 4-roll plate rollers available in various designs. Features: This machine is particularly suitable for machining small and medium sheets of Steel, stainless steel and aluminum up to various diameters. Lower clamping roller with hydraulic displacement. (movement up/down). Two side rollers move in pyramidal shape. Lower clamp roller and side rollers are equipped with balancing system to ensure correct parallelism and high quality production. Upper and lower rollers are driven by an electric motor via gearing and universal joints. Digital readout screens on the control panel are available to read the correct position of the bottom and side rollers. Hydraulically retractable end piece for removing cylindrical products. All operations can be performed from the mobile control panel. Heavy welded steel frame, tension relieved. Induction hardened rollers (SAE 1050-CK 45), made of high quality steel, heat treated and subjected to non-destructive structural checks. Possibility of tapered rolling. Hydraulic elements: Motor and pump, pressure valves, solenoid valves etc. of Dexter or Duplomatic components. Emergency stop system : Safety cord around the machine and emergency stop button. Electrical components: Siemens or Telemecanique. Reducers BREVINI or COMER (Italian). Built according to EC Safety Directives (CE) and ISO 9000 certified. User's manual in English Shown machine is a version with central rollers of Ø 200 mm and a working width of 1270 mm. This machine is also equipped with overhead crane and plate support on both sides on customer request. Roller capacity: Pre-bending capacity: With min. inside diameter 300 mm : Steel St-37 8 mm / stainless steel 4 mm With min. inside diameter 1000 mm : Steel St-37 10 mm / stainless steel 5 mm Capacity rollers: With min. inside diameter 300 mm : Steel St-37 10 mm / stainless steel 5 mm With min. inner diameter 1000 mm : Steel St-37 12 mm / stainless steel 6 mm Also interested? Contact Kin Machines using the contact form below or call 06 - 55 06 22 86
