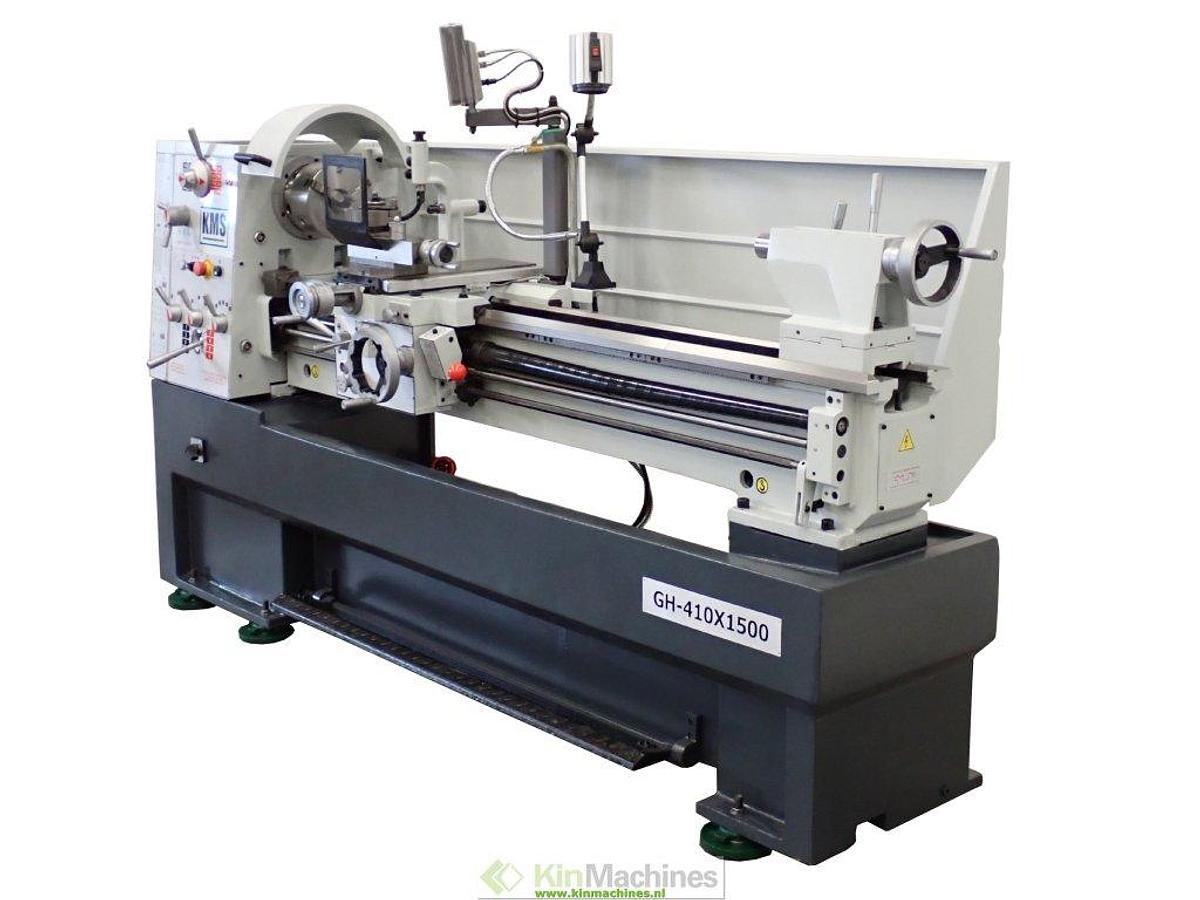

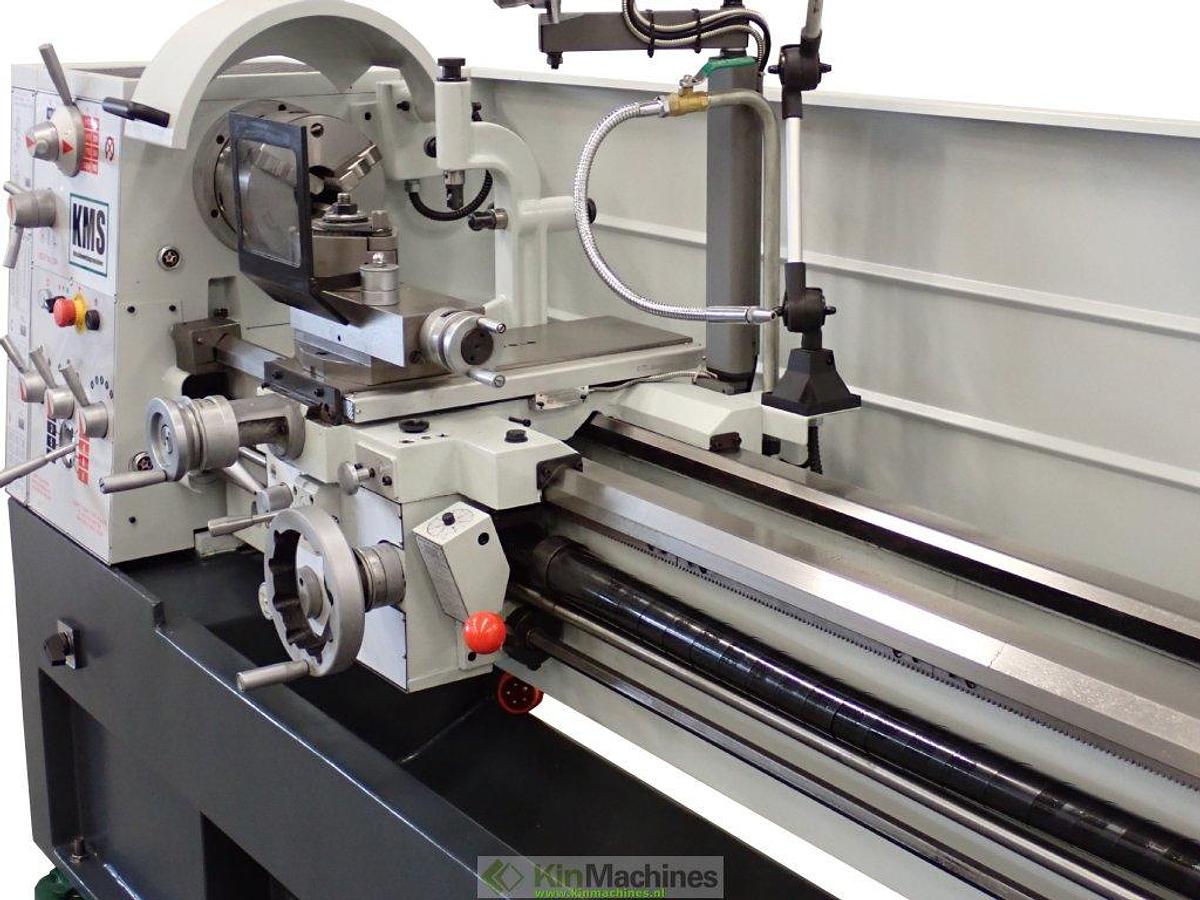

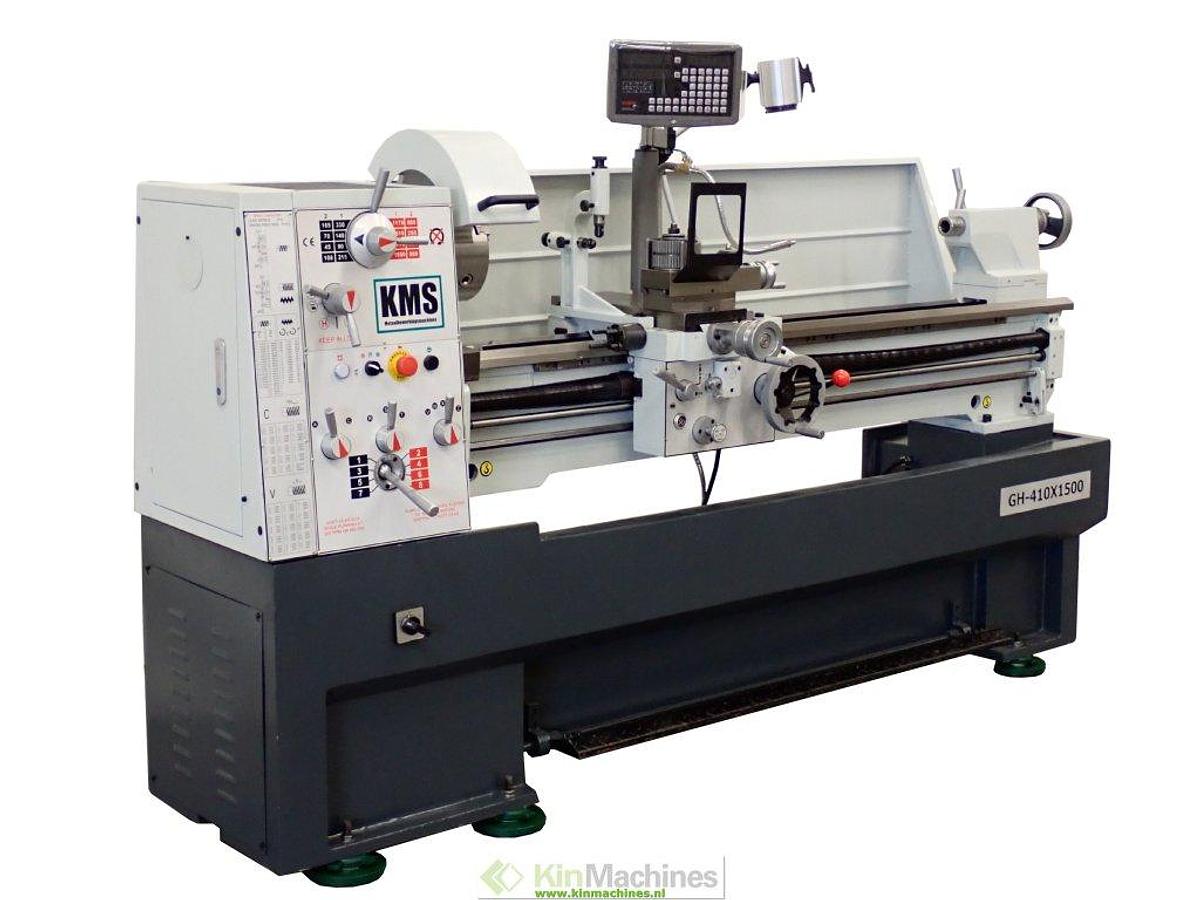

Lathe KMS GH-410 / 1500 | Digital readout | Cap.: Ø410 x 1500 mm.
Lathe KMS GH-410 / 1500 | Digital readout | Cap.: Ø410 x 1500 mm.
€10,645 (EUR)
Available quantity:1
or
Call +31 655 062 286
Description
Very complete new lathe.
Equipped with:
3-claw (Camlock)
4-claw (Camlock)
Multifix chisel holder + chisel holders
Spindle shield (CE)
Fixed glasses
Guiding spectacles
Digital readout on 2 axes
Foot brake
Cooling pump
Lighting
Specifications
| Manufacturer | KMS |
| Model | GH-410 |
| Condition | New |
| Bed width | 250 mm |
| Soort | Lathe |
| Chuck diameter | Ø 200mm |
| Turning diameter above bed | Ø 410 mm |
| Distance between centers | 1500 mm |
| Turning diameter over slide | Ø 255 mm |
| Pass through | 52 mm |
| Recording loose head | MC4 |
| Speeds | 16 ( 45 - 1800 rpm ) |
| Inch wire series | 45 ( 2-72 TPI ) |
| Metric thread series | 39 ( 0.2 -14 mm) |
| Motor | 2-speed motor ( 2.4 / 3.3 kW ) |
| Weight | ± 1350 kg |
| Kind | Lathe |
