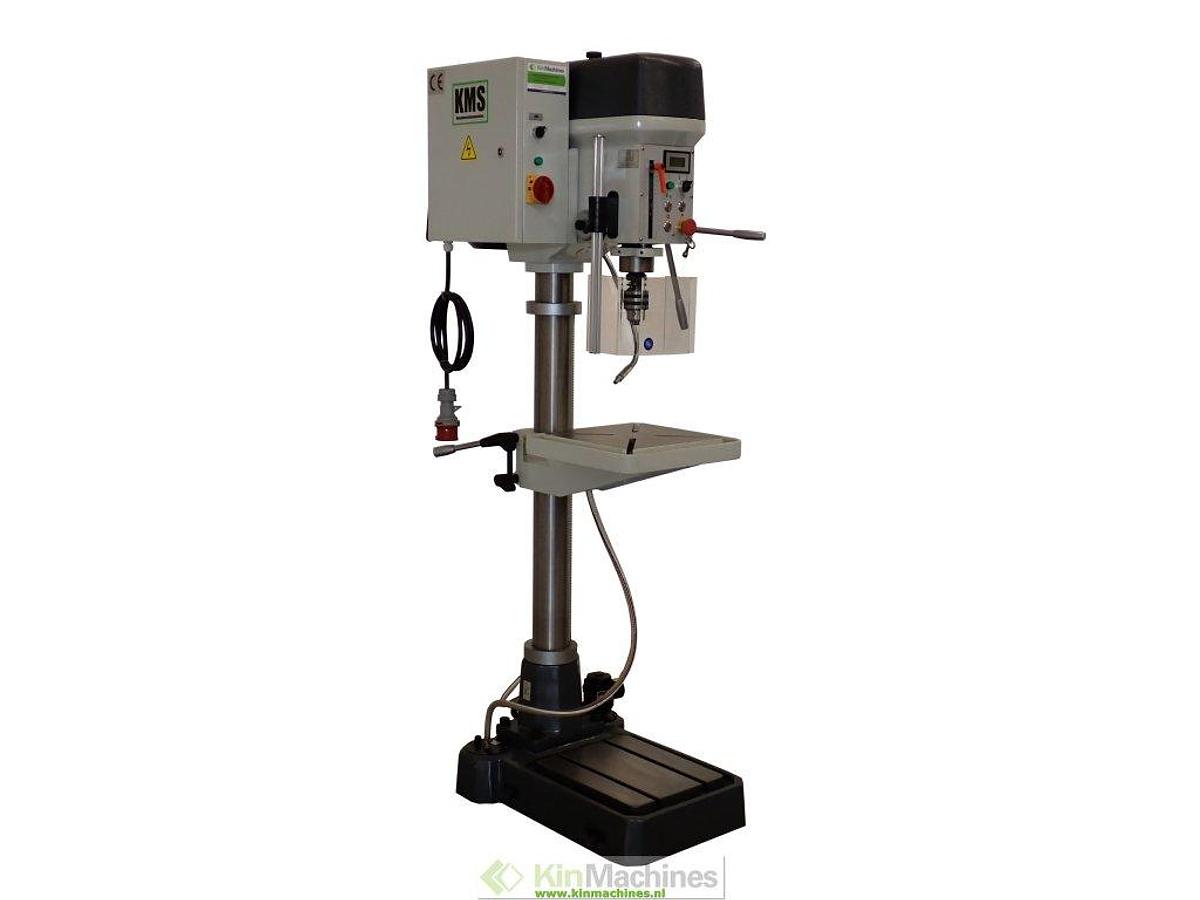

Column drilling machine V-belt driven KMS BMC32C
Column drilling machine V-belt driven KMS BMC32C
€1,900 (EUR)
Available quantity:2
or
Call +31 655 062 286
Description
Belt driven column drill.
Comes with:
Geared drilling head 5 - 20 mm
Cooling pump
Adapter sleeve MC3 / MC2
Digital speed readout
LED machine light
Protective cover
Specifications
| Manufacturer | KMS |
| Model | BMC 32C |
| Condition | New |
| Soort | Column Drilling machine |
| Mains voltage | 400V |
| Max. drilling capacity | 32 mm |
| Max tap capacity | M20 |
| Spindle mount | MC3 |
| Spindle speeds | 5 ( 320 - 1820 rpm ) |
| Spindle stroke | 150 mm |
| Unloading (spindle to column) | 265 mm |
| Table dimensions | 390 x 390 mm (ground part 330x330) |
| Max. displacement table vertical | 730 mm |
| Max. distance drill head - table | 700 mm |
| Turning circle table around column | 360 ° |
| Foot dimensions | 400 x 460 mm |
| Max. distance drill head - base | 1120 mm |
| Column diameter | 100 mm |
| Motor | 1.5 kW |
| Machine dimensions (w x d x h) | 570 x 940 x 1950 mm |
| Weight | 310 kg |
