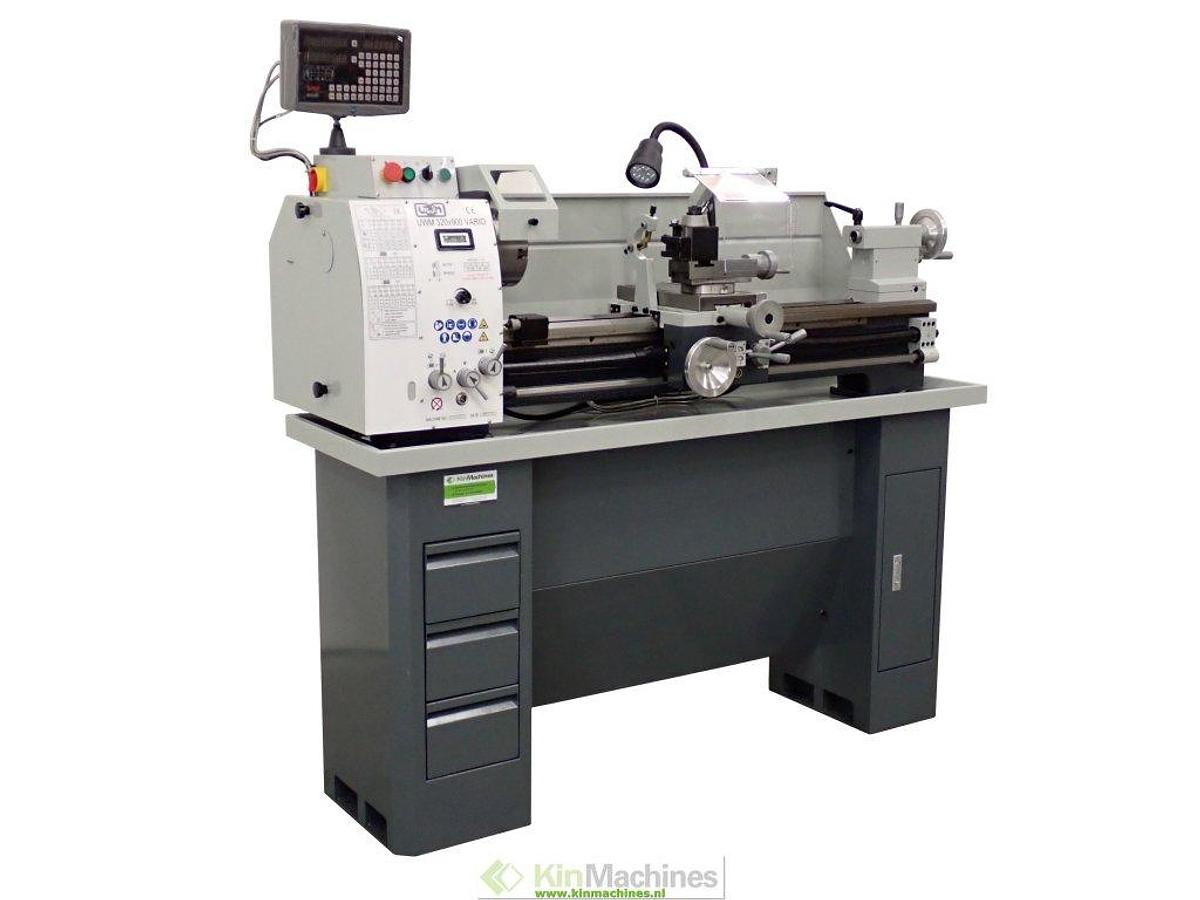

Lathe UWM 320×900 with variable speed
Lathe UWM 320×900 with variable speed
€4,150 (EUR)
or
Call +31 655 062 286
Description
New lathe, excellent for light and small turning work.
Also ideal for the advanced hobbyist.
Very quiet running machine with variable speed setting.
Supplied complete with:
3-claw with inner and outer jaws (Camlock)
4-claw (Camlock)
Clamping plate (Camlock)
Chisel holder with change holders
Digital readout on 2 axes
Worklight
Fixed spectacles
Guiding glasses
Documentation
(Price is for machine ready for operation, ex Staphorst)
Specifications
| Manufacturer | UWM |
| Model | 320 x 900 Vario |
| Condition | New |
| Soort | Lathe |
| Mains voltage | 400 V |
| Bed width | 180 mm |
| Diameter 3 chuck | Ø 160 mm |
| Turning diameter over bed | Ø 320 mm |
| Turning diameter over cross slide | Ø 200 mm |
| Distance between centers (tdc) | 900 mm |
| Spindle passage | 38 MM |
| Spindle speeds | Variable in 2 steps |
| - 75 - 500 rpm | |
| Displacement above carriage | 85 mm |
| Displacement cross slide | 165 mm |
| Displacement along carriage | 850 mm |
| Loose head spindle displacement | 80 mm |
| Spindle take-up loose head | MC3 |
| Thread cutting metric | 18 possibilities ( 0.2 - 3.5 mm) |
| Thread cutting inch | 21 options ( 8 - 56 TPI) |
| Feed rates crosswise | 0.017 - 0.25 mm/rev. |
| Feed rates along | 0.07 - 0.72 mm/om. |
| Motor | 1.5 kW |
| Machine dimensions | 1600 x 750 x 1350 mm (L x W x H) |
| Machine weight | 330 kg |
