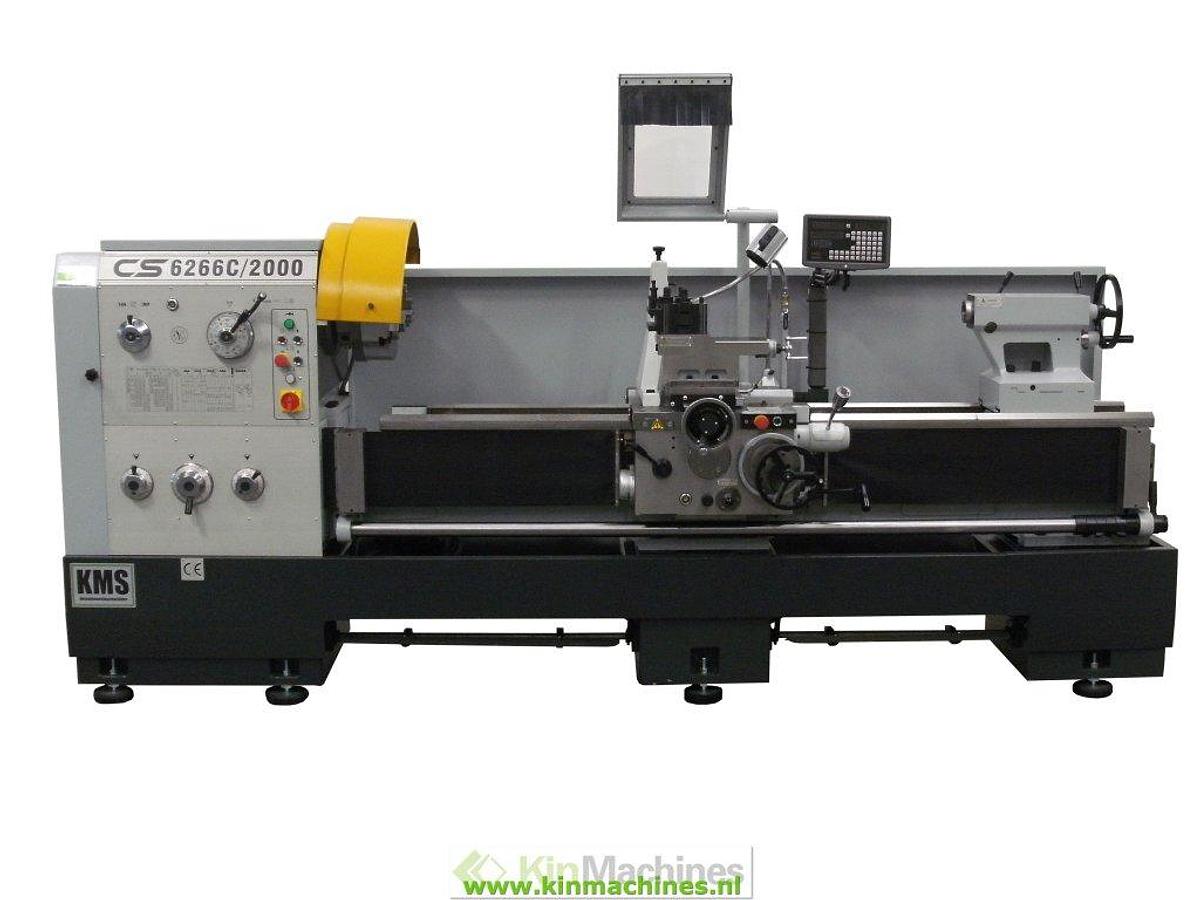

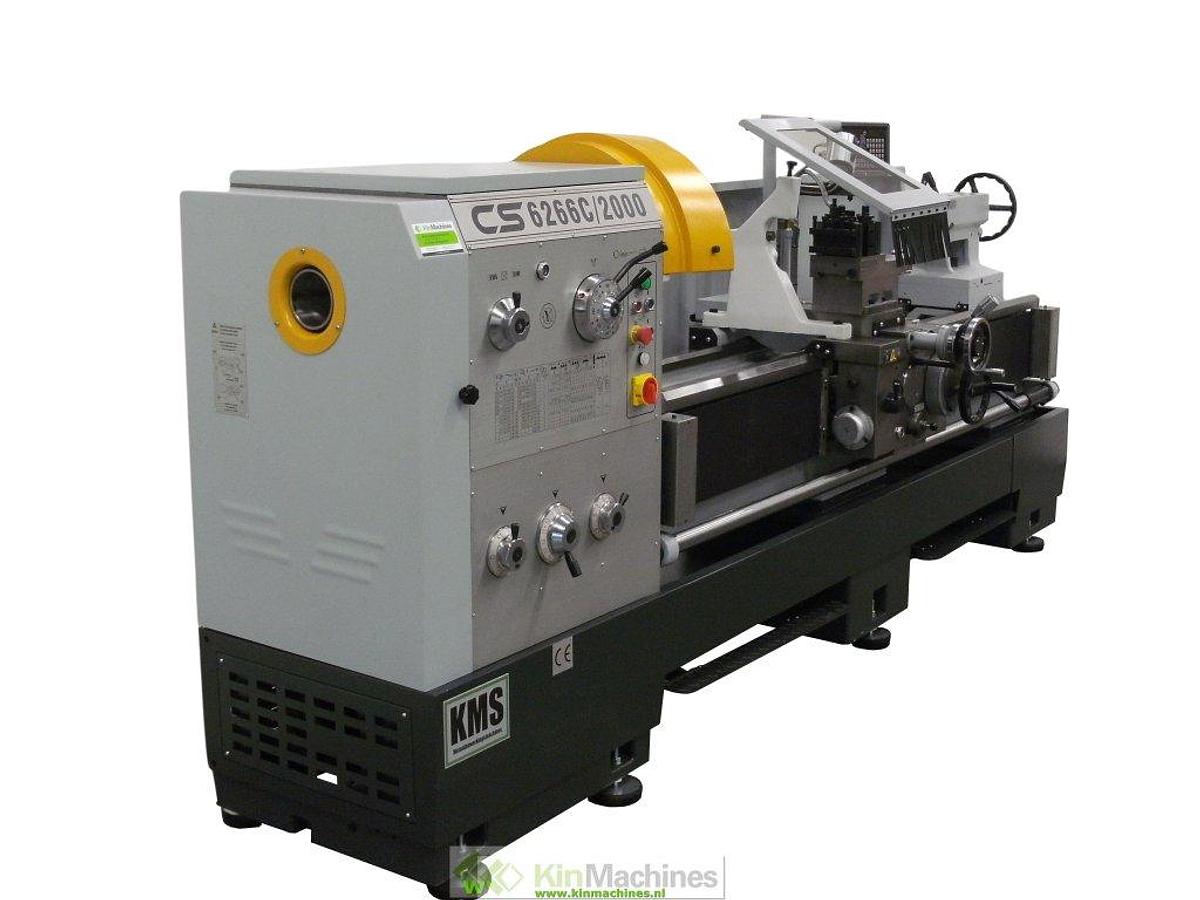

Lathe KMS CS6266C / 2000 (Ø 660 mm turning diameter)
Lathe KMS CS6266C / 2000 (Ø 660 mm turning diameter)
Contact us for price
Levering
Uit voorraad
Available quantity:1
or
Call +31 655 062 286
Description
New lathe with big spindle thru-hole.
Machine equipped with:

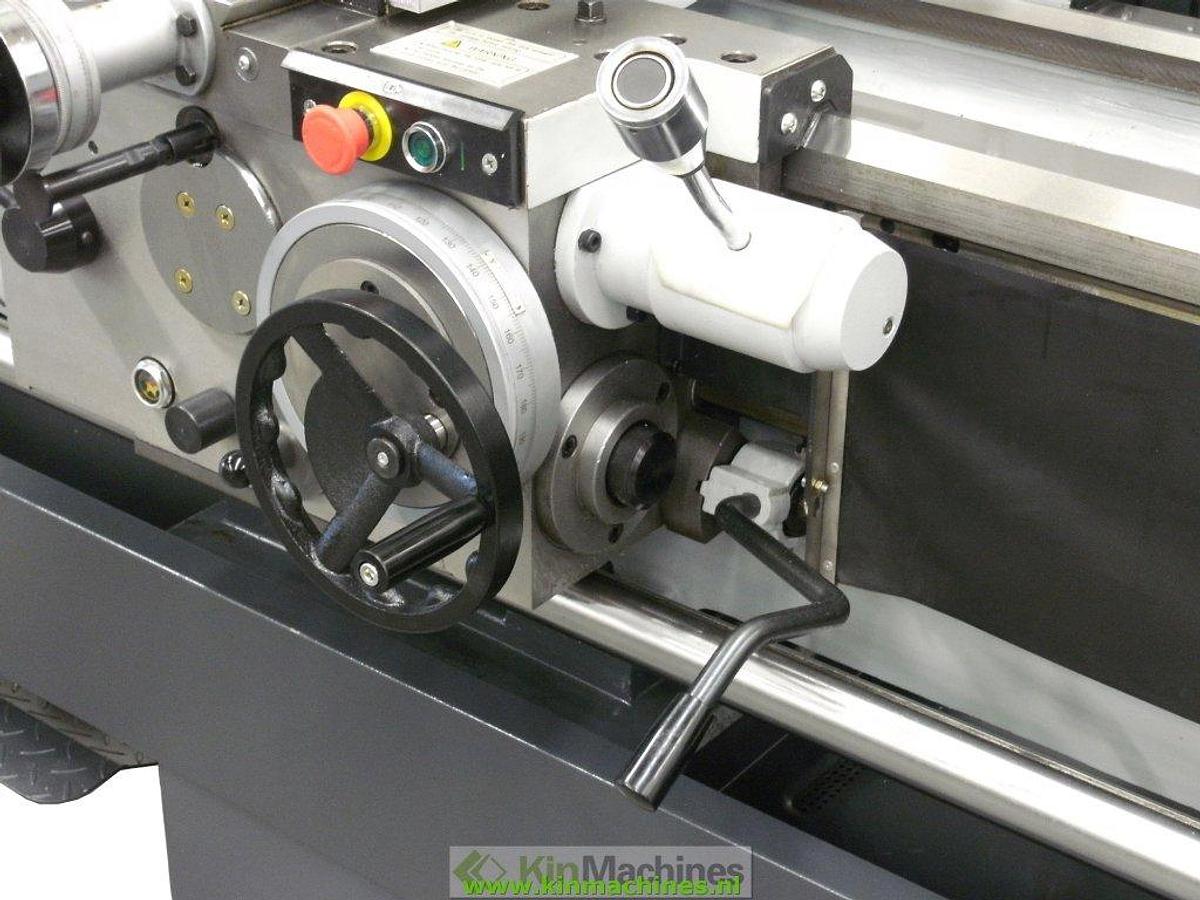

- Longitudinal and transverse feed.
- Rapid traverse on longitudinal and transverse feed.
- Moveable and adjustable stops for automatic longitudinal feeding.

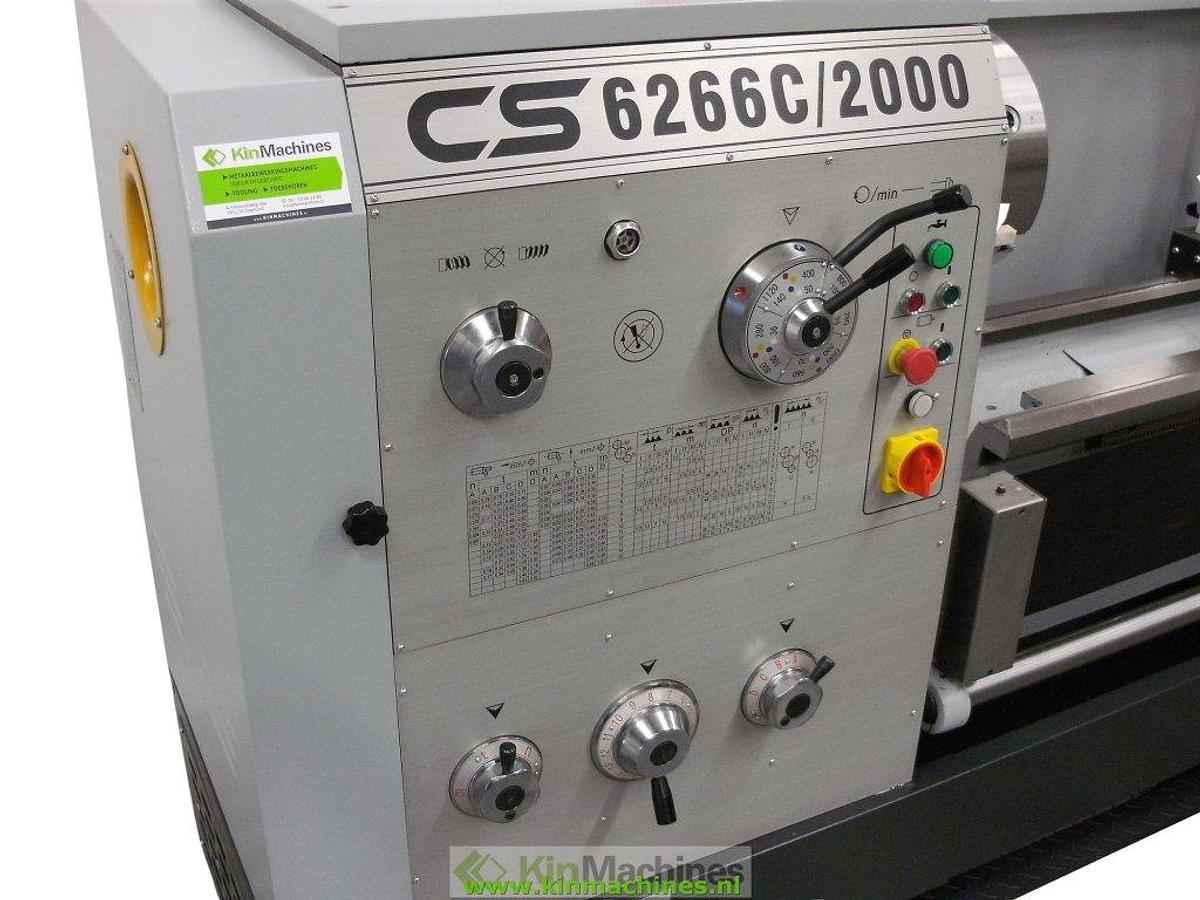

- Thread cutting spindle (cutting of Metric/Inch/Module/DP threads possible.

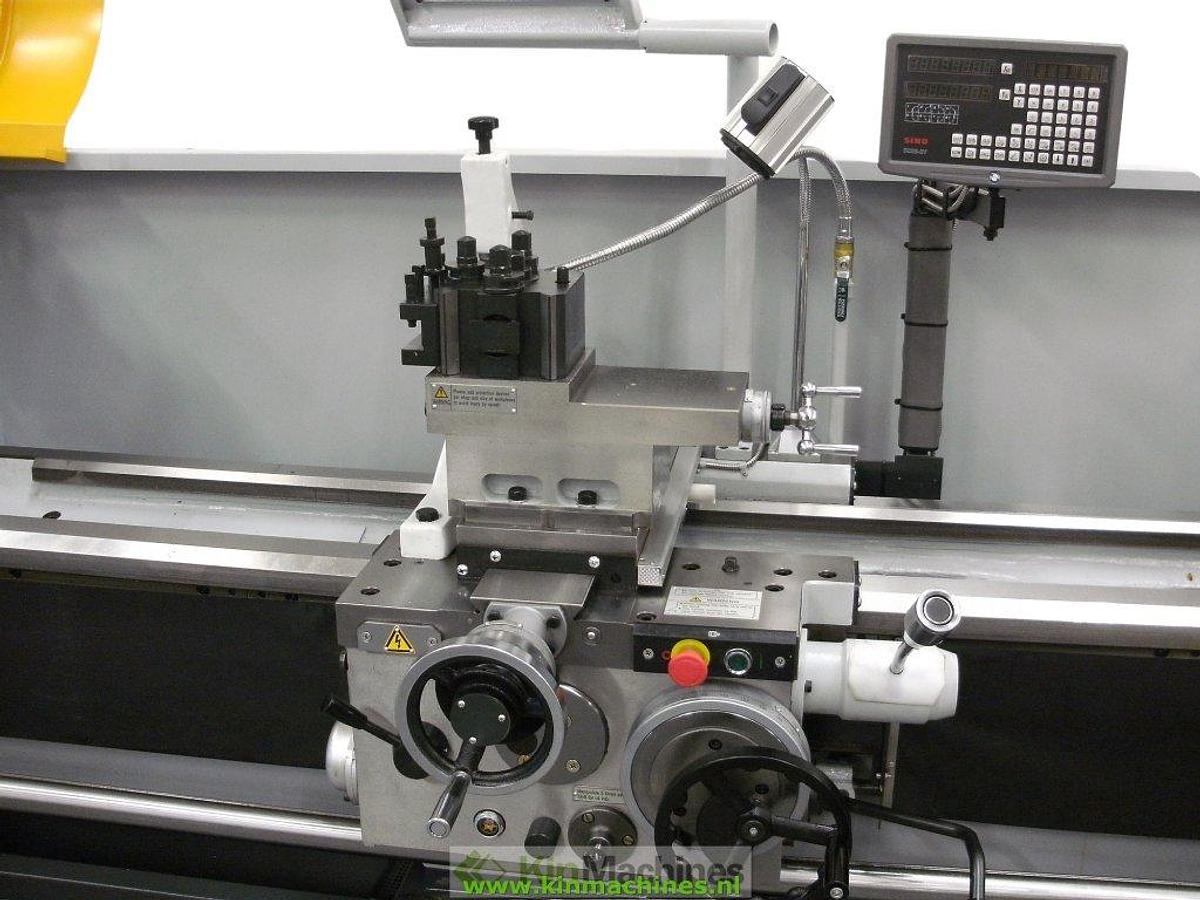

- Italian-type quick-change tool holder. (Multifix-type optionally available)
- 2-axis digital readout (Brand: Sino).

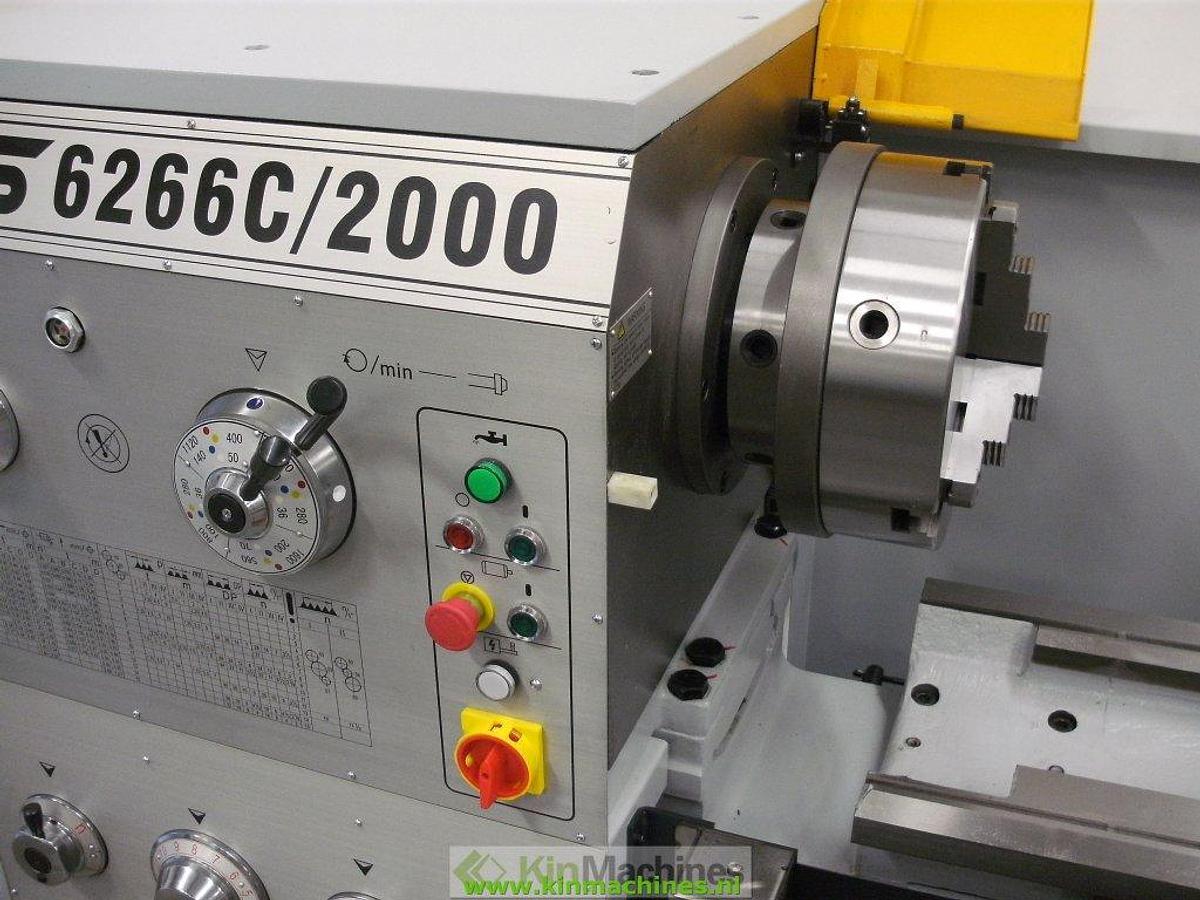

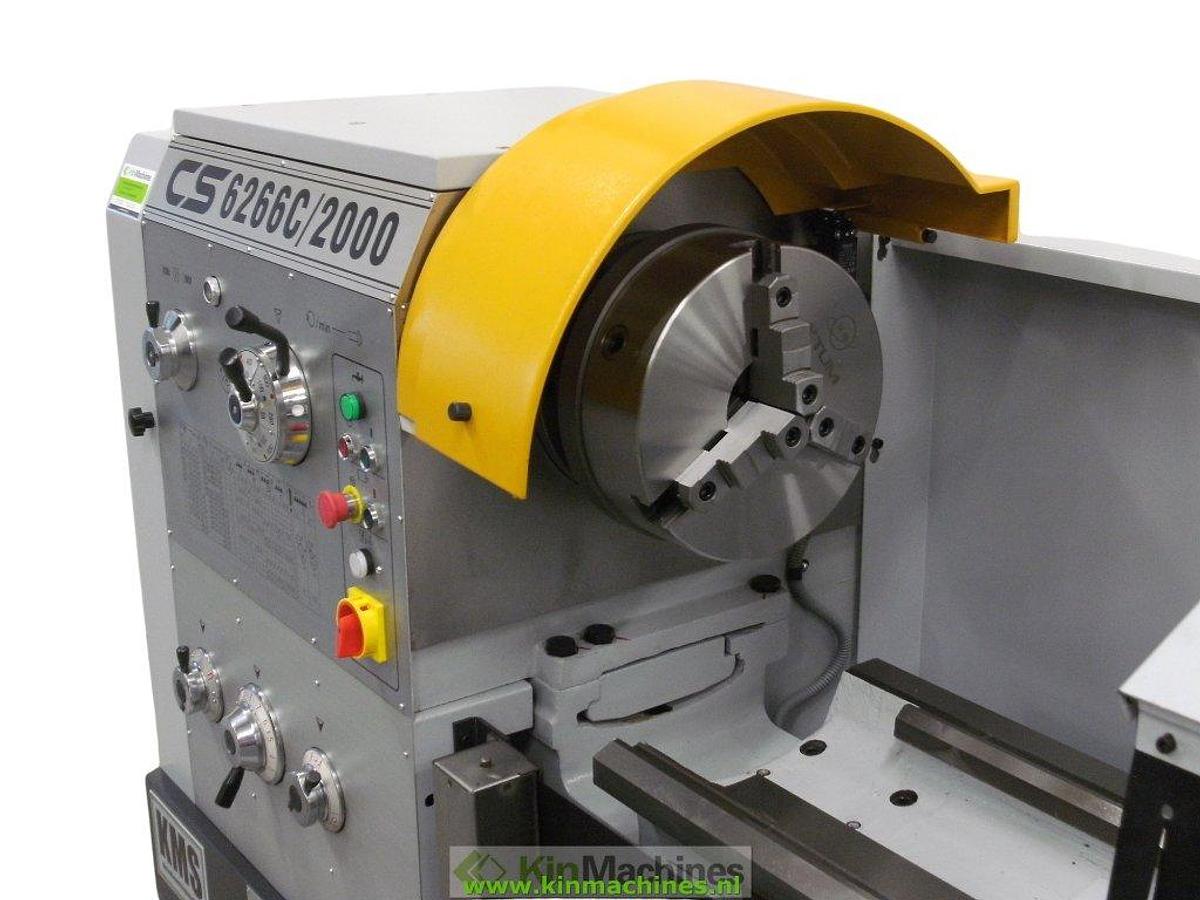

- 3-jaw chuck Ø 315 mm, thru-hole 100 mm (Camlock).
- 4 chuck Ø 400, thru-hole 105 mm (Camlock).
- Carrier plate Ø 630 mm (Camlock).
- Steady rest Ø 120- Ø 260 mm.

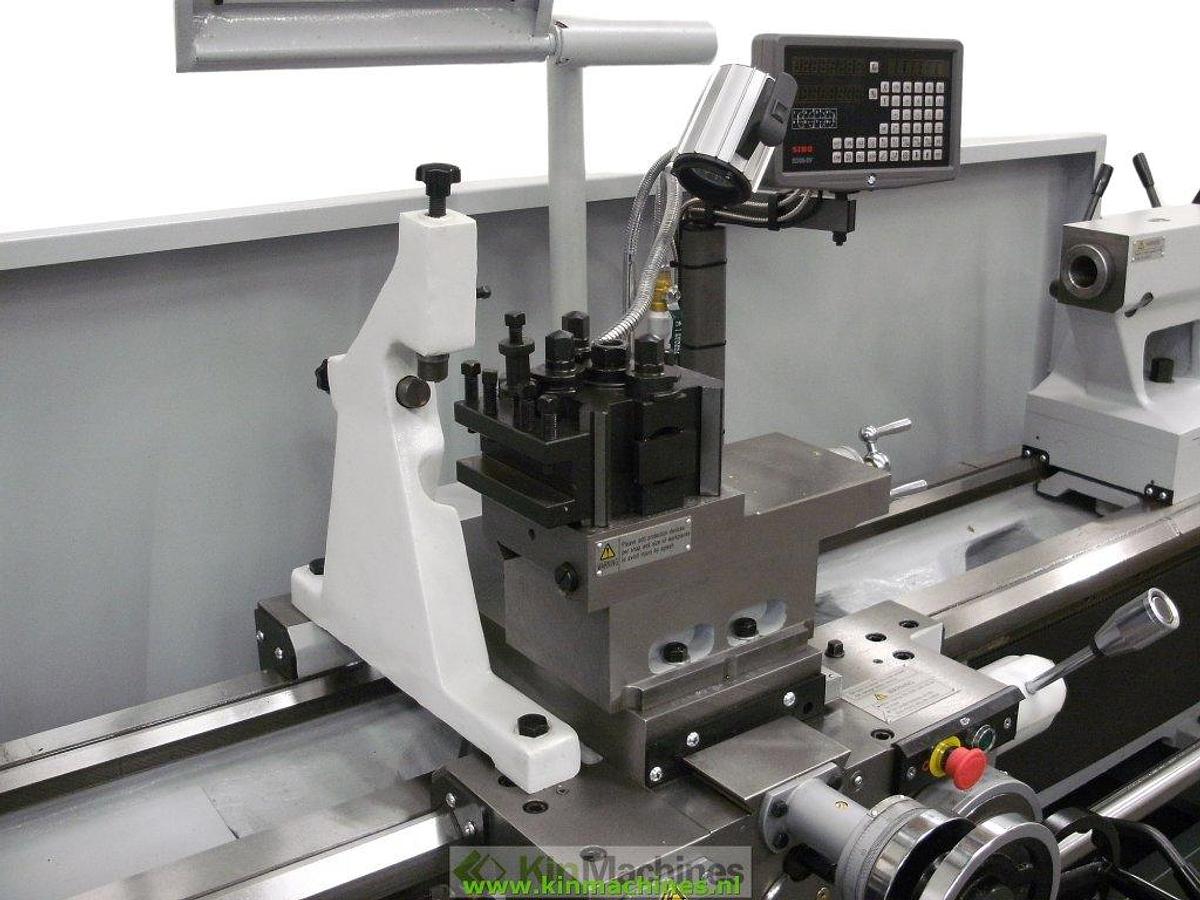

- Follow rest Ø 20 - Ø 80 mm.
- Coolant device.
- Dutch language manual.
Specifications
| Manufacturer | KMS |
| Model | CS6266C |
| Condition | New |
| Soort | Lathe |
| Tdc | 2000 mm |
| Turning diameter over bed | Ø 660 mm |
| Turning diameter over slide | Ø 420 mm |
| Turn diameter in bag | Ø 870 mm |
| Turning length in bag | 240 mm |
| Bed width | 390 mm |
| Passage spindle | Ø 105 mm |
| Spindle speeds | 12 ( 36 - 1600 rpm ) |
| Spindle thru-hole | Ø 105 mm |

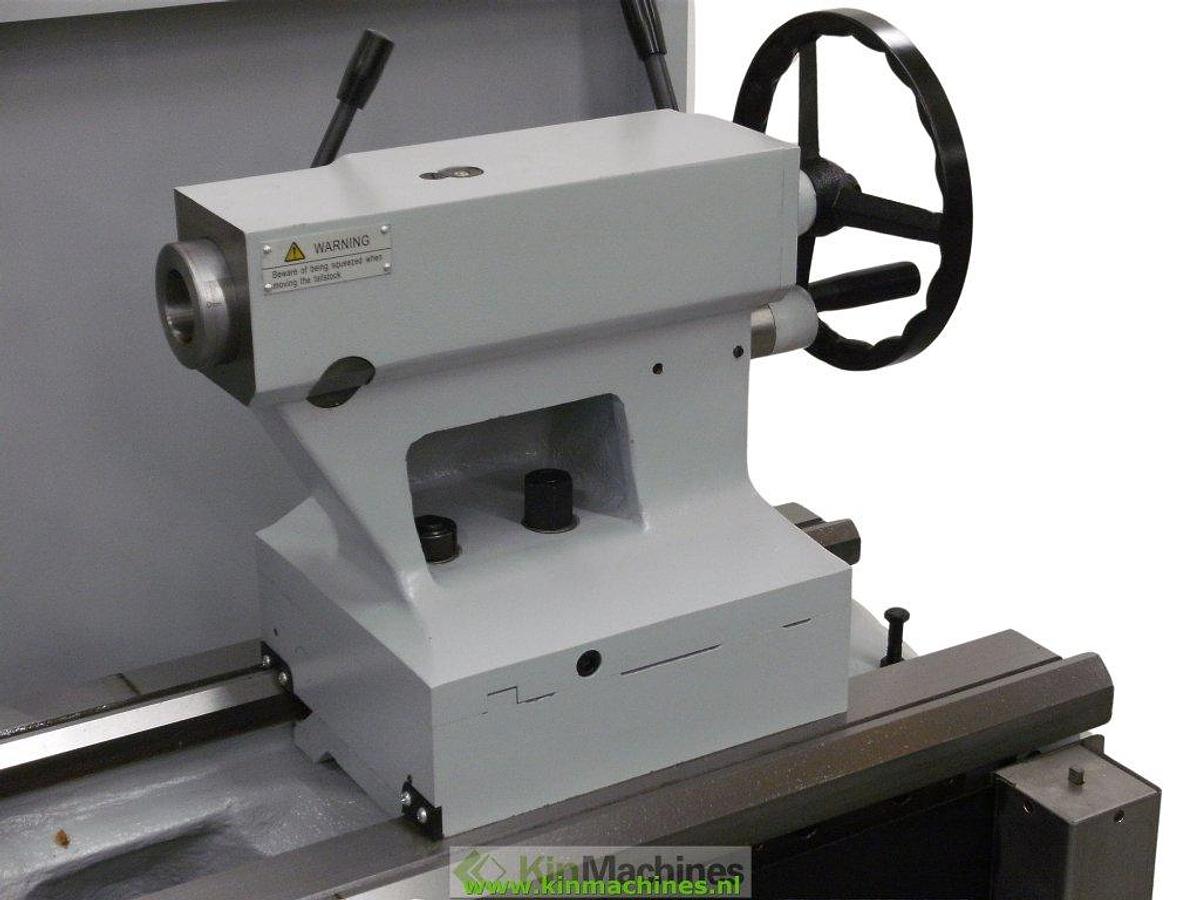

| Tail stock spindle diameter | 75 mm |
| Tail stock range | 150 mm |
| Tail stock taper | MT5 |
| Machine dimensions | ± 2600 x 975 x 1450 ( L x W x H ) |
| Machine weight | ± 3100 kg |
