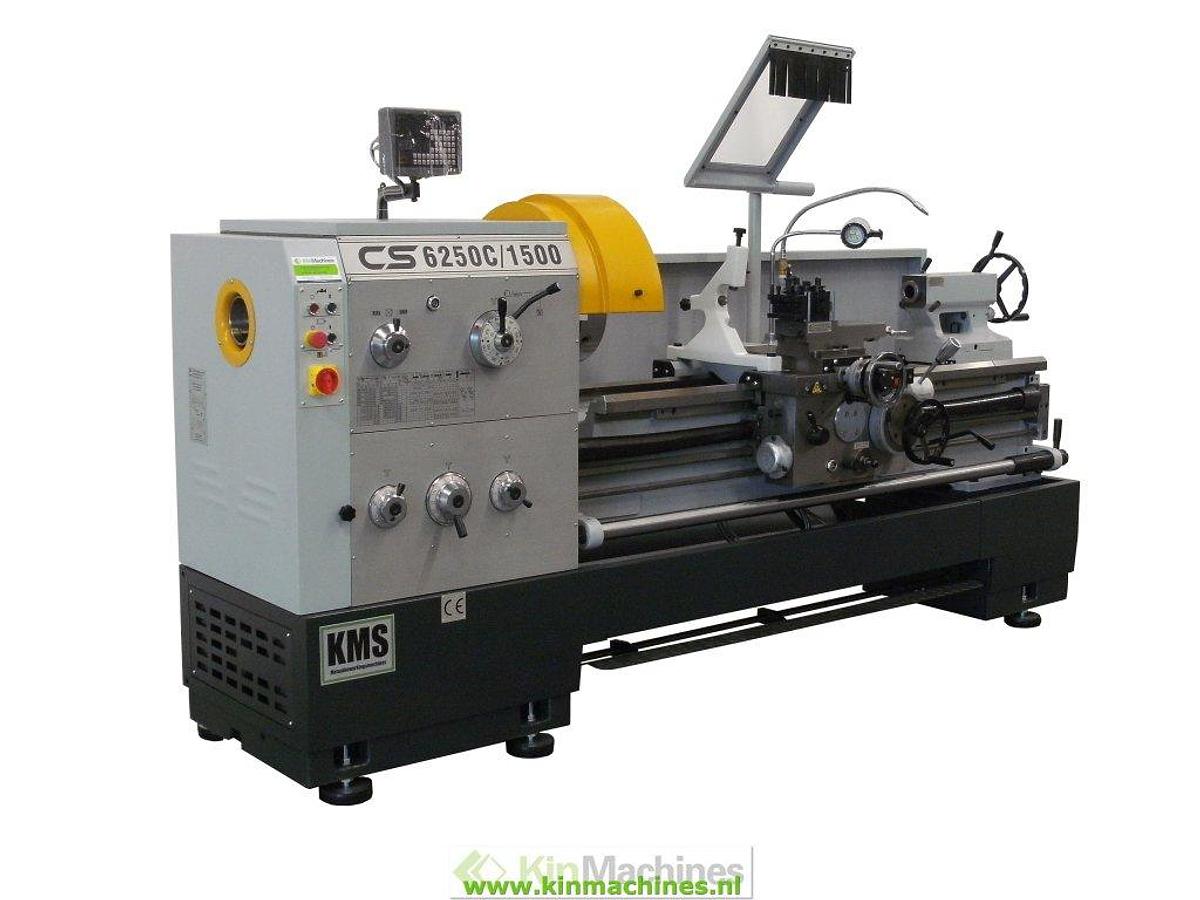

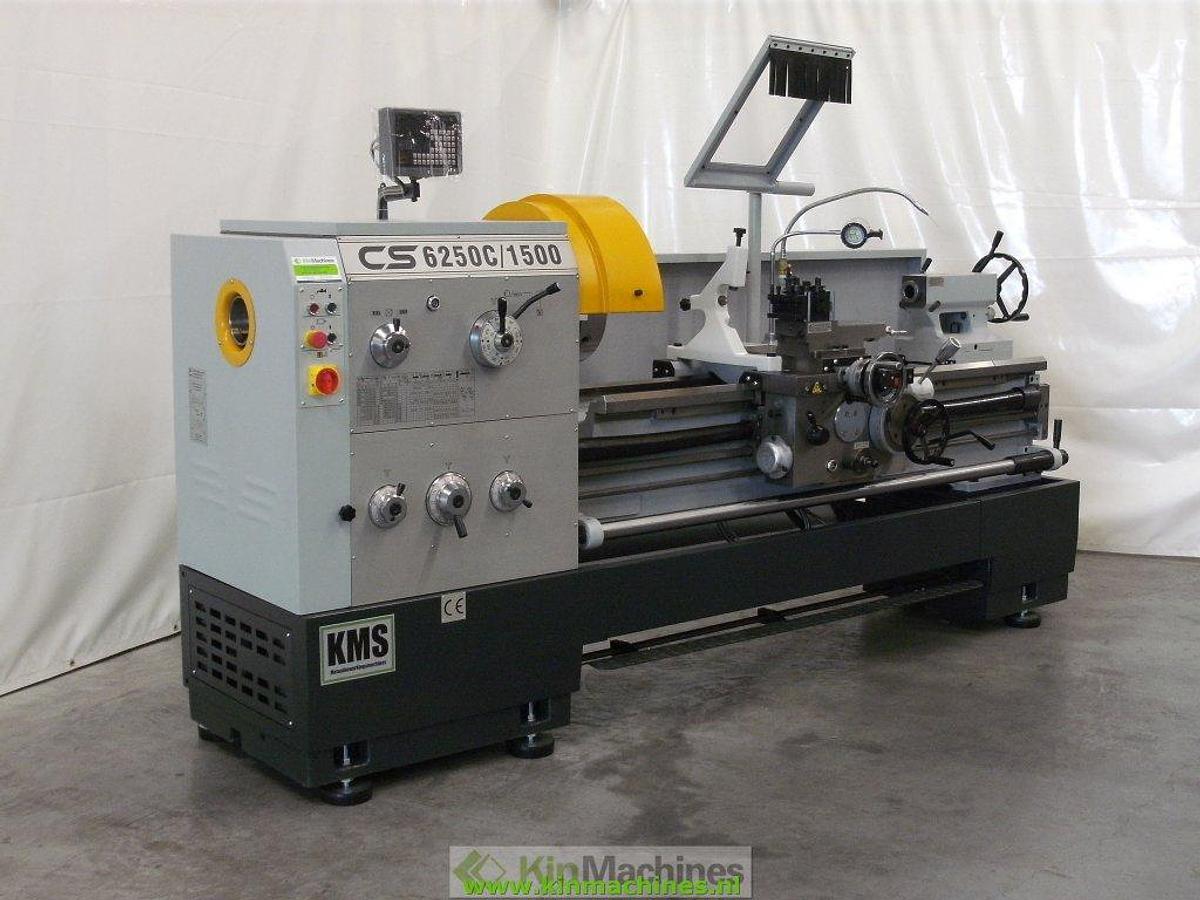

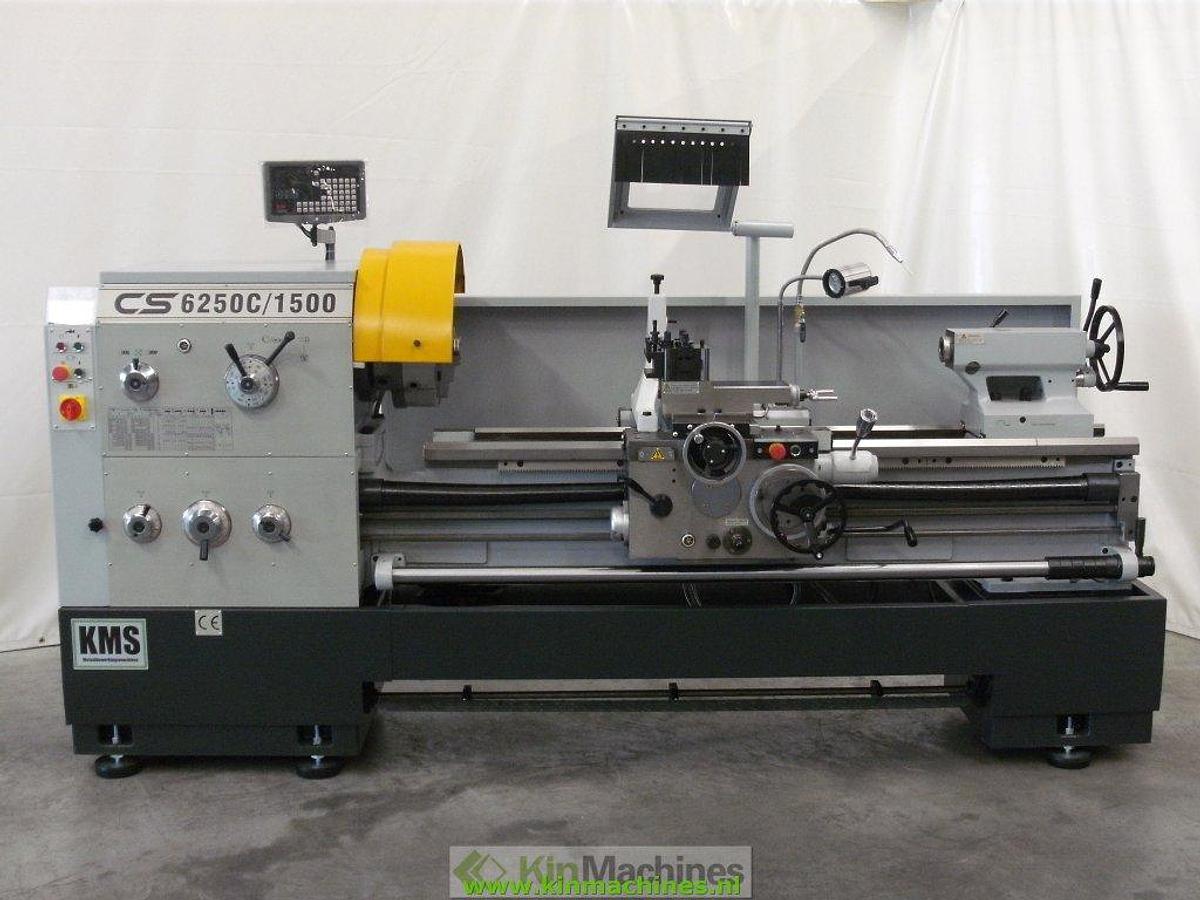

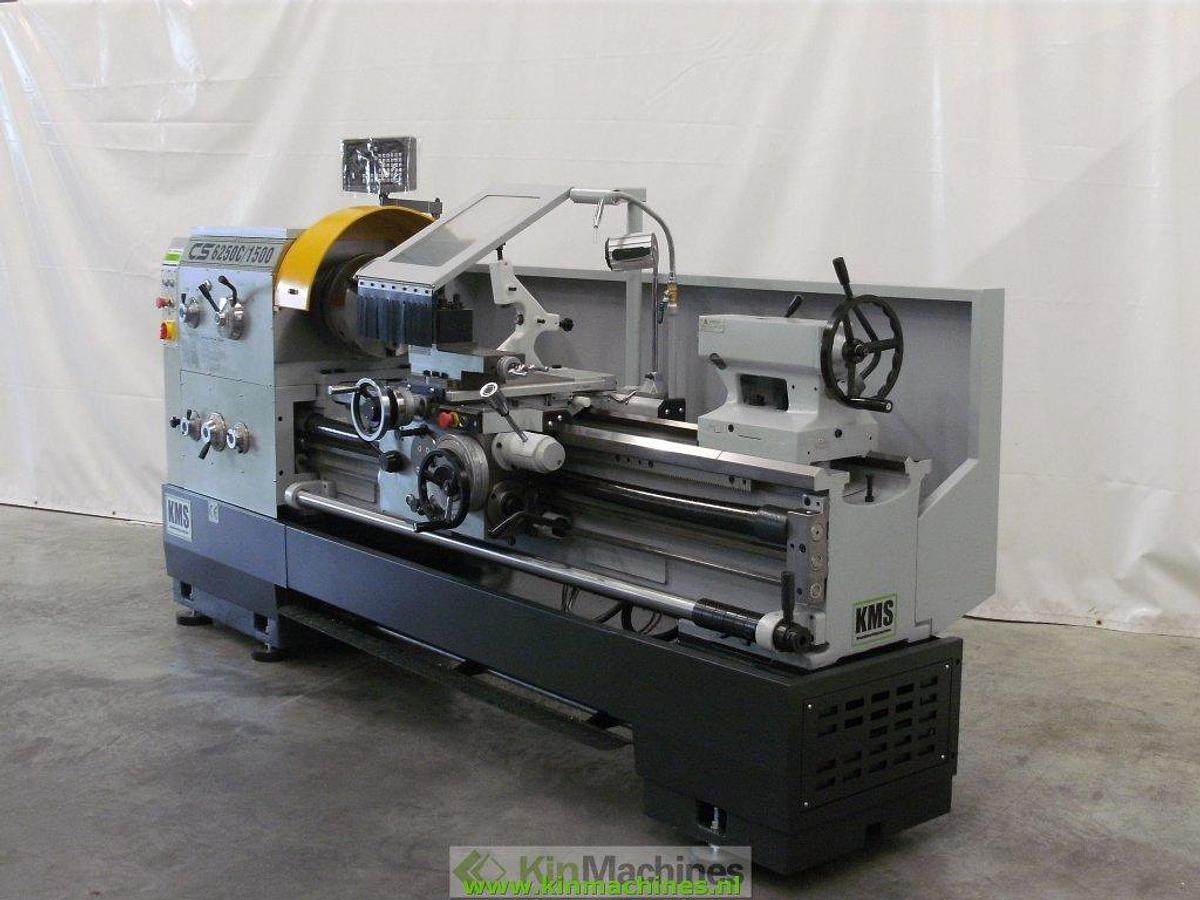

Lathe KMS CS6250C / 1500 (Ø 500 mm turning diameter)

Lathe KMS CS6250C / 1500 (Ø 500 mm turning diameter)

Contact us for price

or
Call +31 655 062 286

Description

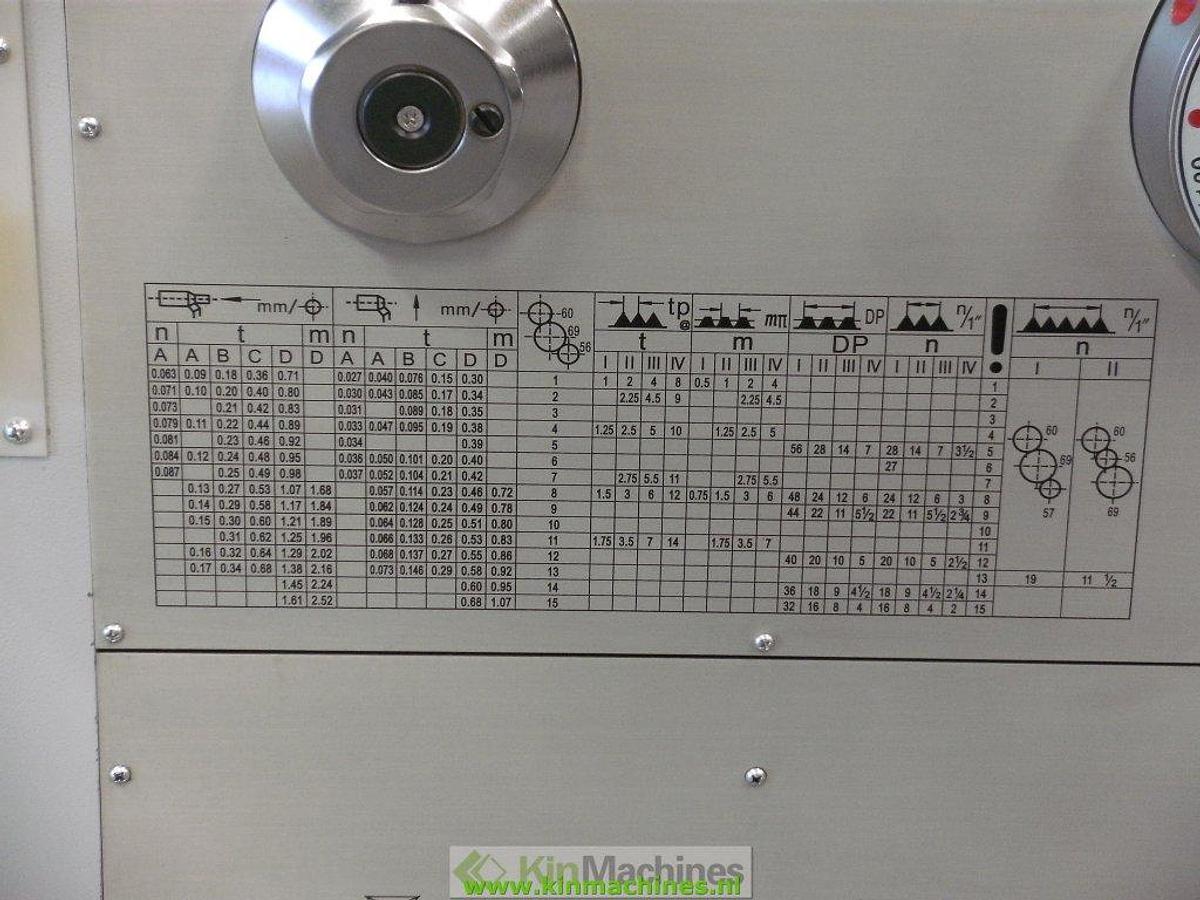

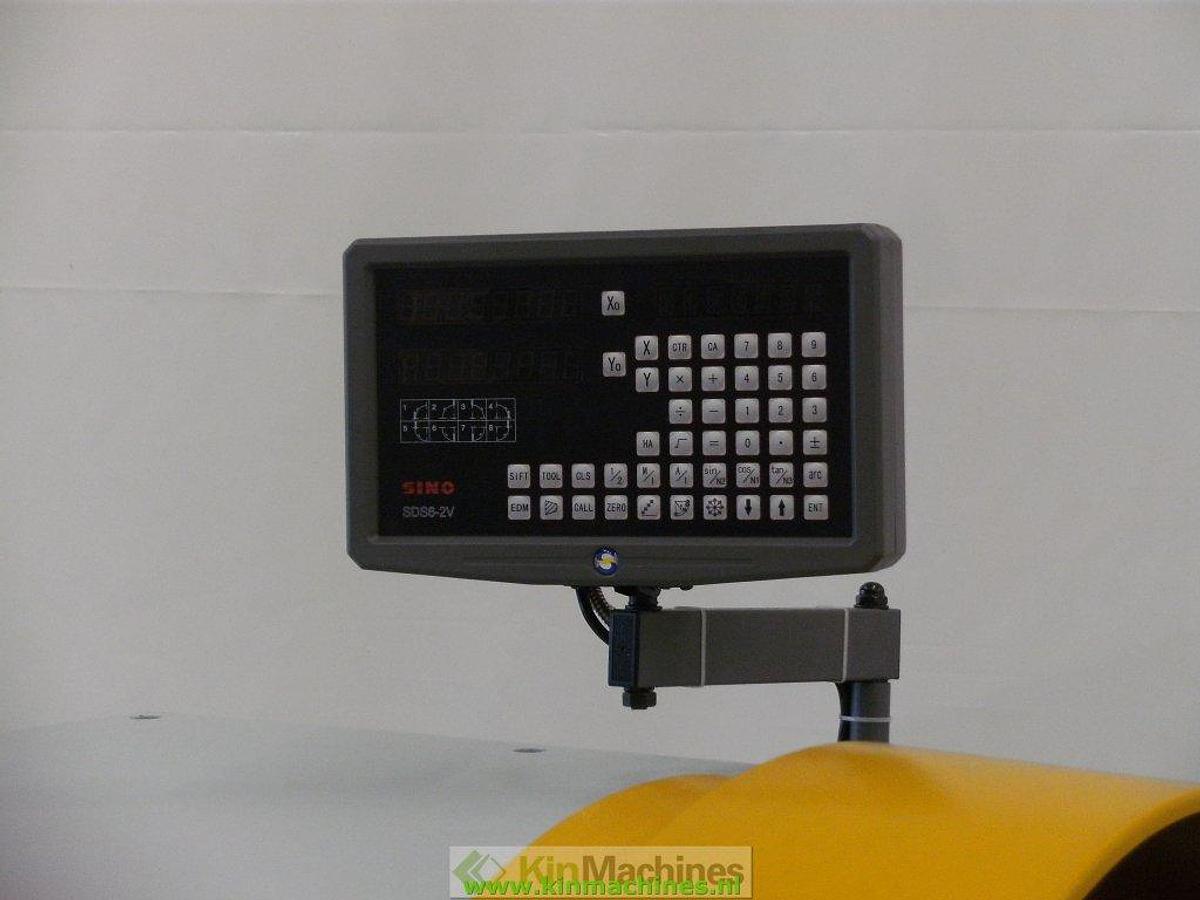

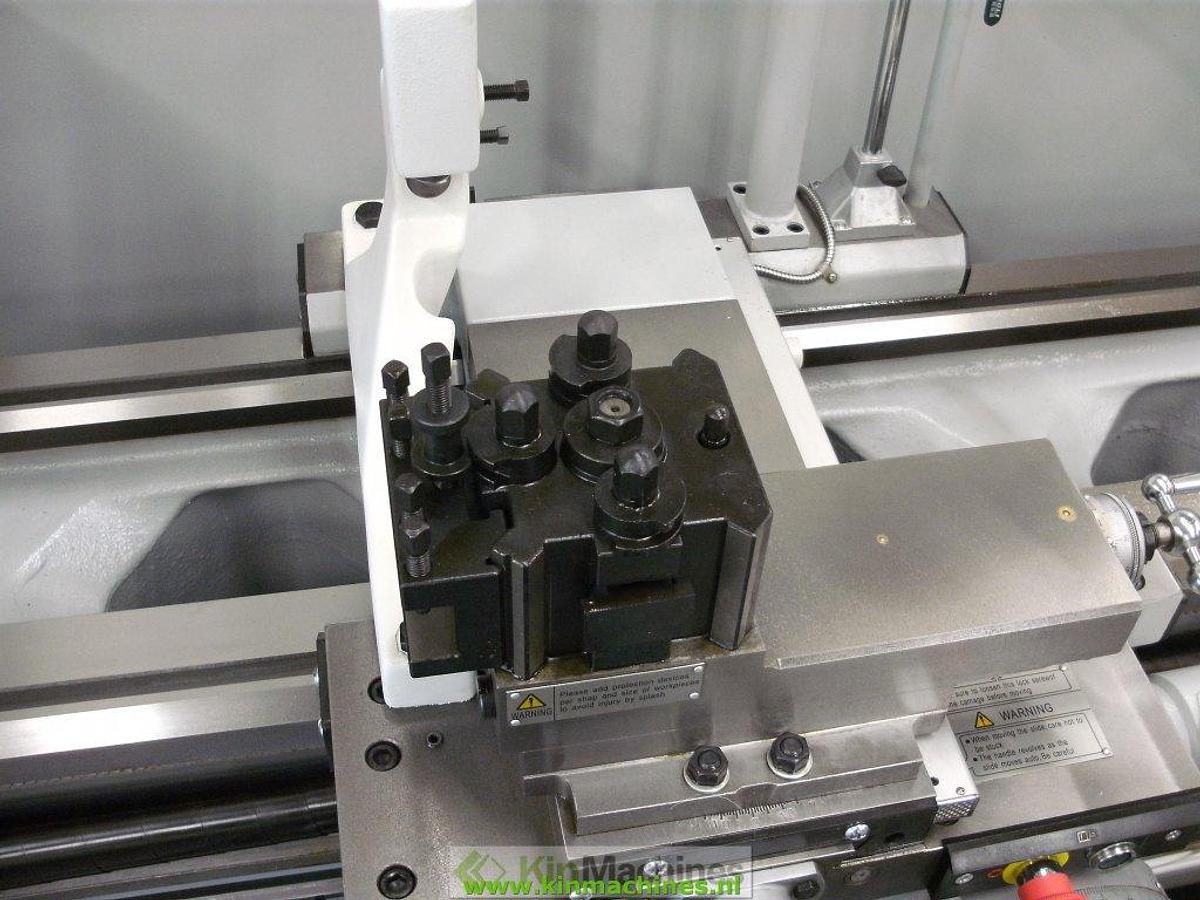

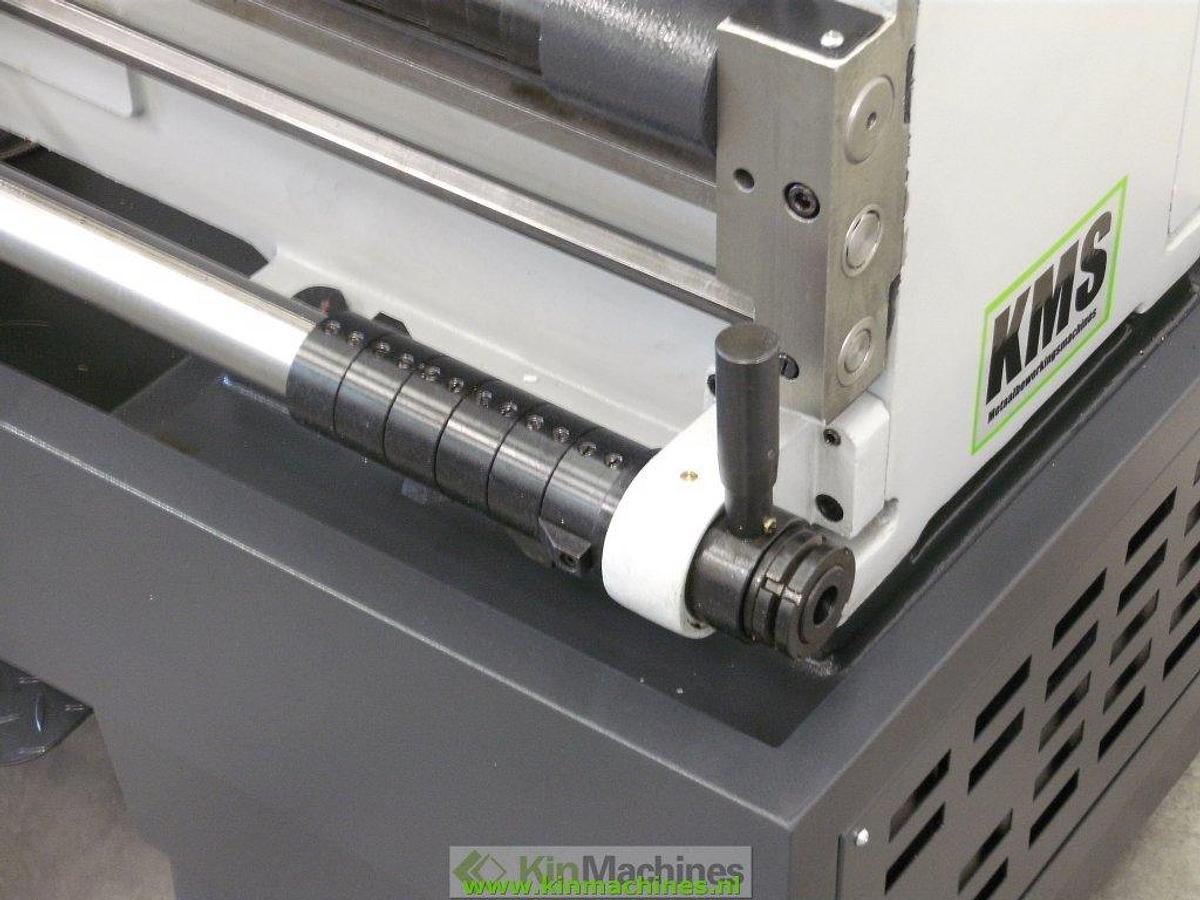

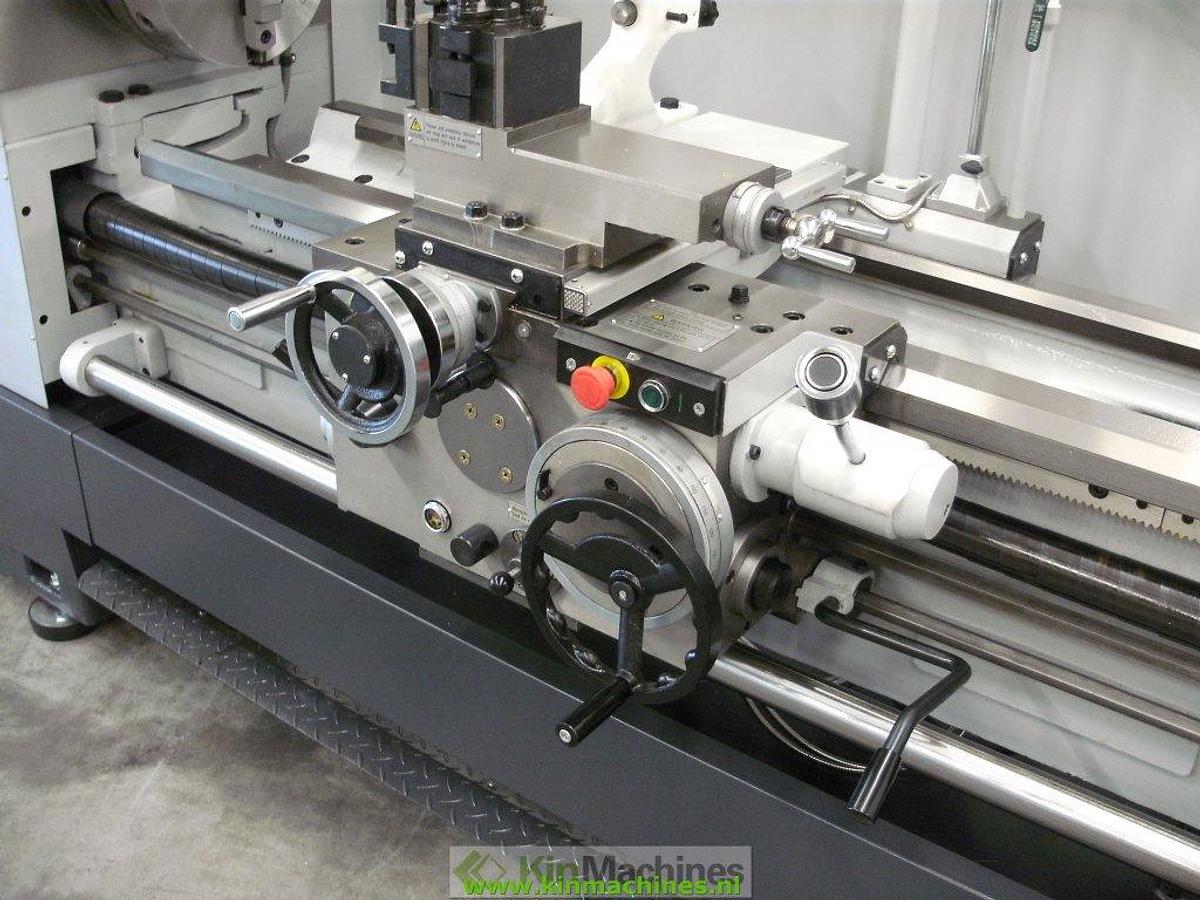

New lathe with large passage. Machine equipped with: Longitudinal and transverse feed. Icing on longitudinal and transverse feed. Moveable and adjustable stops for automatic longitudinal feeding. Thread cutting spindle (cutting of Metric/Inch/Module/DP threads possible. Quick-change tool holder. 2-axis digital readout (Brand: Sino). 3-claw chuck Ø 315 mm, passage 100 mm (Camlock). 4 chuck Ø 400, passage 105 mm (Camlock). Slide-in chuck Ø 630 mm (Camlock). Fixed spectacles Ø 120- Ø 260 mm. Guiding goggles Ø 20 - Ø 80 mm. Coolant device. Dutch language manual.
Show All

Specifications

ManufacturerKMS
ModelCS6250C
ConditionNew
Tdc1500 mm
SoortLathe
Turning diameter over bedØ 500 mm
Turning diameter over slideØ 300 mm
Turn diameter in bagØ 710 mm
Turning length in bag240 mm
Bed width390 mm

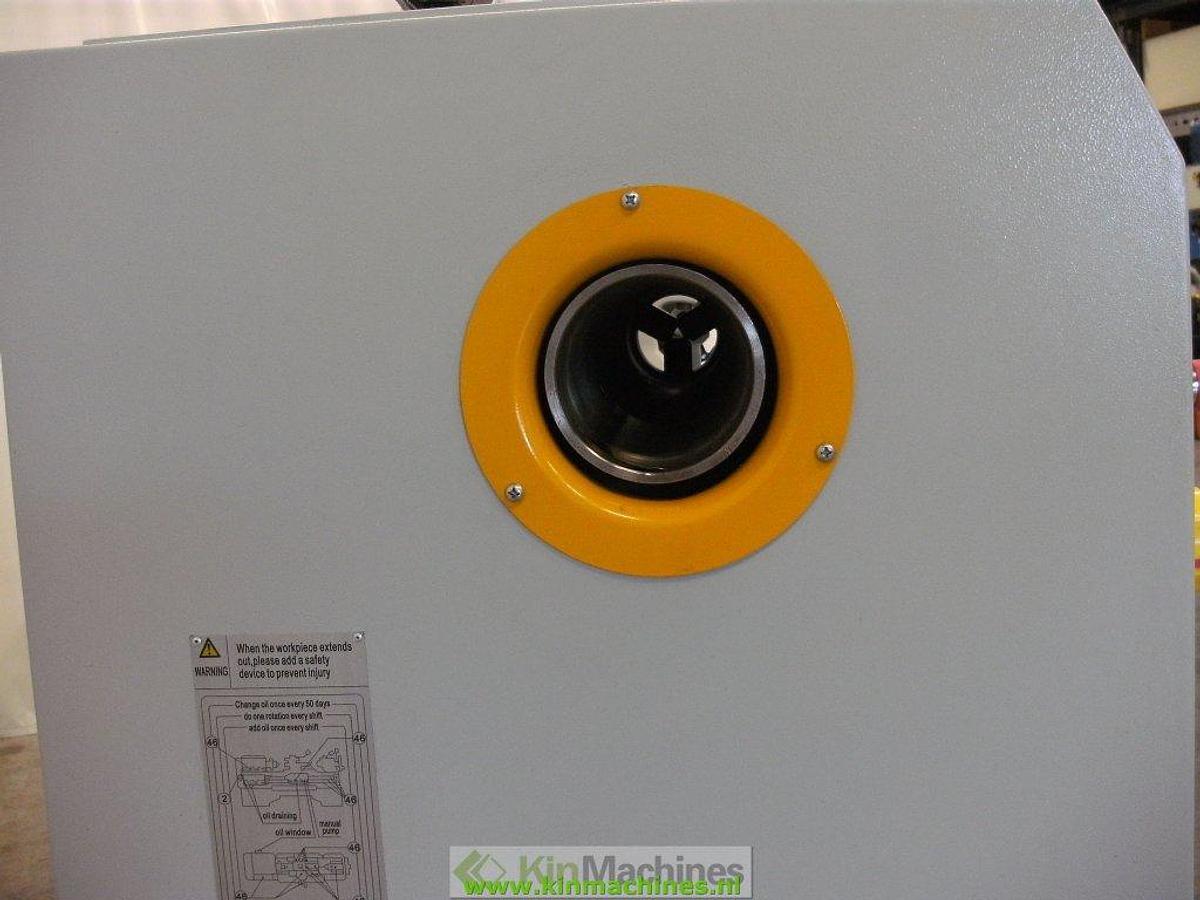

Passage spindleØ 105 mm

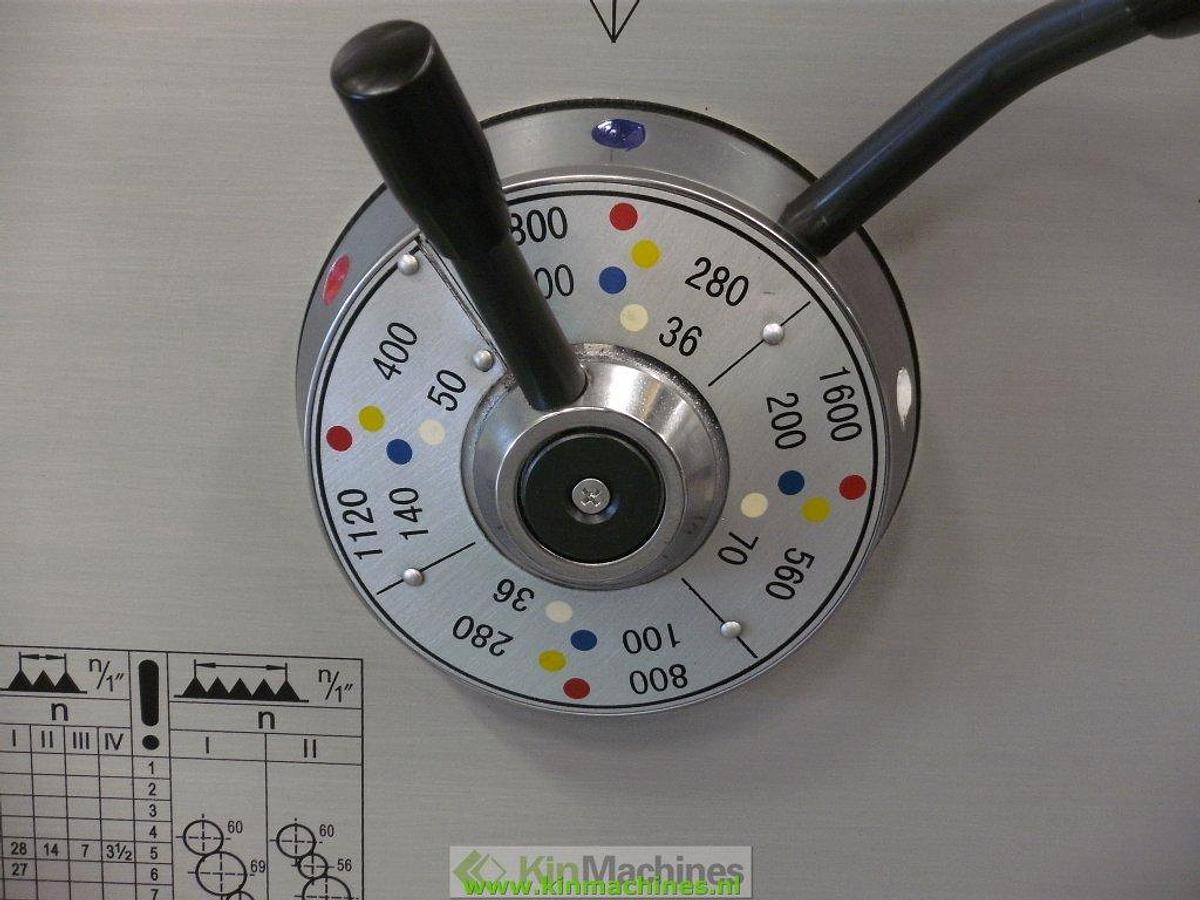

Spindle speeds12 (36 - 1600 rpm)

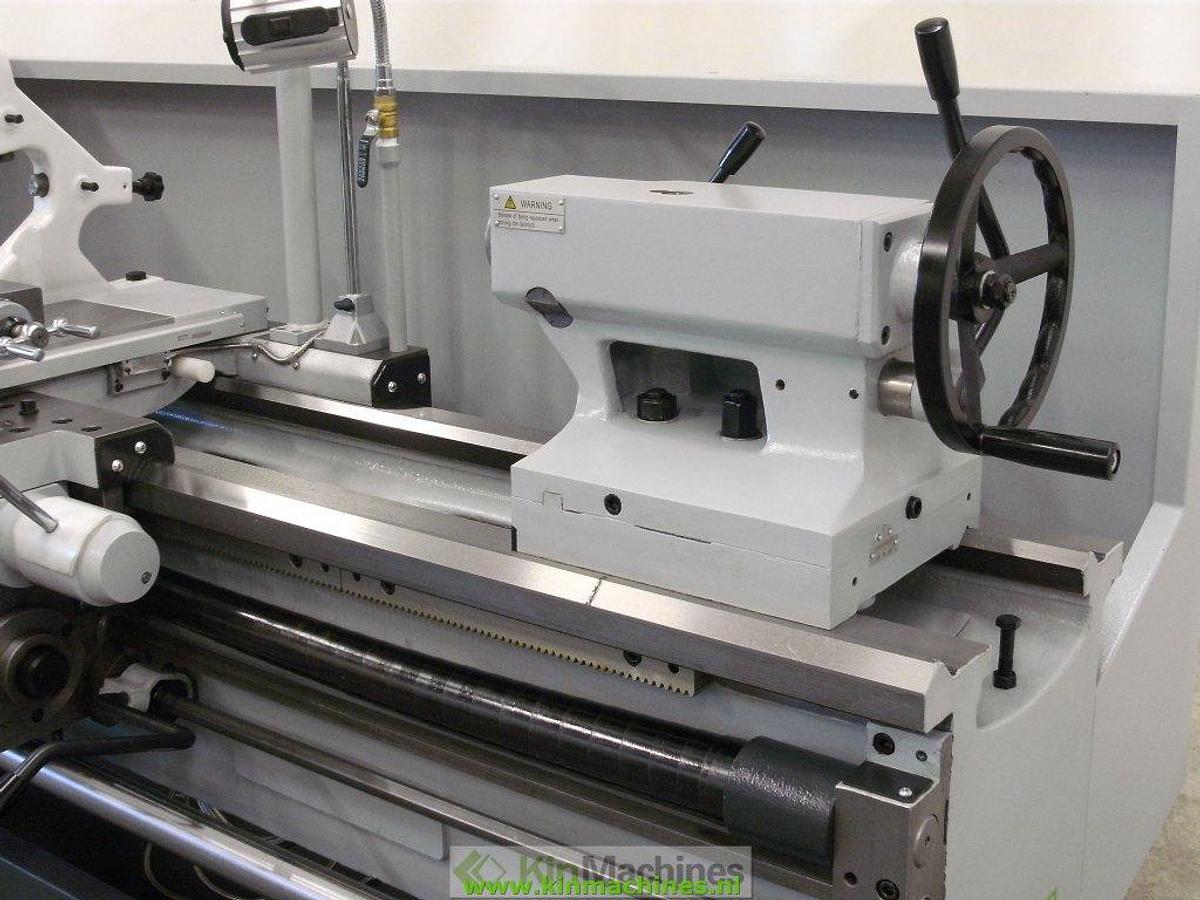

Loose head spindle diameter75 mm
Loose head range150 mm
Recording loose headMC5
Machine dimensions± 3132 x 975 x 1270 mm (L x W x H)
Machine weight± 2600 kg
