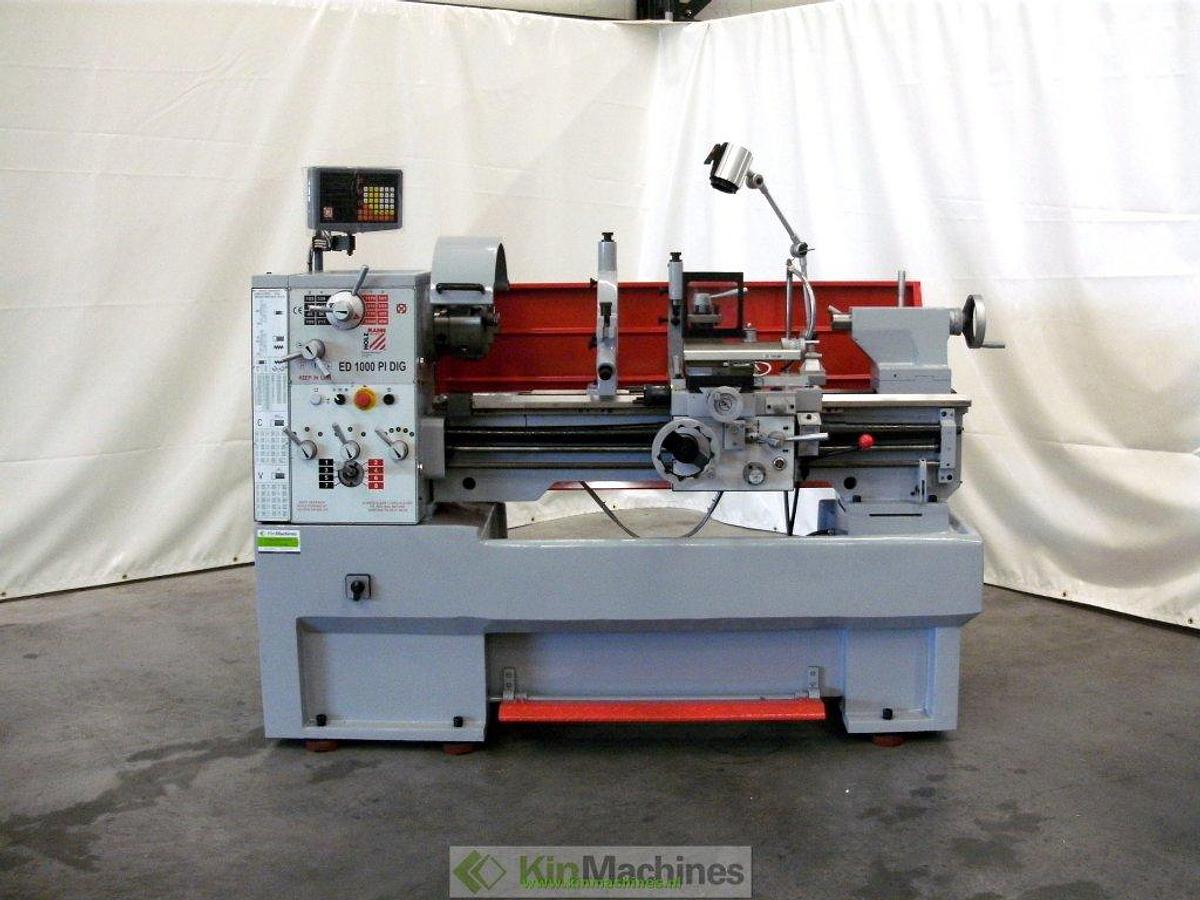

Lathe Holzmann ED1000PIDIG_400V with digital readout.

Lathe Holzmann ED1000PIDIG_400V with digital readout.
Contact us for price
or
Call +31 655 062 286
Description
New Holzmann lathe.
Digital readout on 3 axes
Heavy industrial machine with cast iron base
Wide (250 mm), induction-hardened and ground machine bed
Thread cutting spindle shielded
Convenient and easy operation by clear control panel
Removable bed for machining larger workpieces
Adjustable guides
Camlock spindle adaptor
Oil-filled gearbox with hardened and ground gears
Foot brake and automatic machine shutdown
Cooling pump
Working light
Supplied including:
3-claw chuck Ø 200 mm with inner and outer jaws
4 chuck Ø 250 mm
Chuck Ø 350 mm
Reduction sleeve MC6/MC4
2 fixed center points MC4
Fixed spectacles passage 15 - 160 mm
Guiding frame diameter 14 - 70 mm
Longitudinal stop
Thread cutting bell
4-way rotatable chisel holder
(Multifix chisel holder available as an option)
Specifications
Manufacturer | Holzmann |
Model | ED1000PIDIG_400V |
Condition | New |
Mains voltage | 400V |
Soort | Lathe |
Spindle speeds | 16 ( 45 - 1800 rpm ) |
Max turning diameter above bed | Ø 410 mm |
Max turning diameter above slide | Ø 250 mm |
Max turning diameter in bag | Ø 590 mm |
Distance between centers | 1000 mm |
Spindle bore | Ø 52 mm |
Spindle attachment loose head | MC4 |
Intake main spindle | MC6 |
Camlock recording | D1-6, DIN 55029 |
Long feed | 0.05 - 1.7 mm/omw |
Cross-feed | 0.025 - 0.85 mm/omw |
Metric thread series | 0.2 - 14 mm |
Inch wire series | 2 - 72 pitch/inch |
