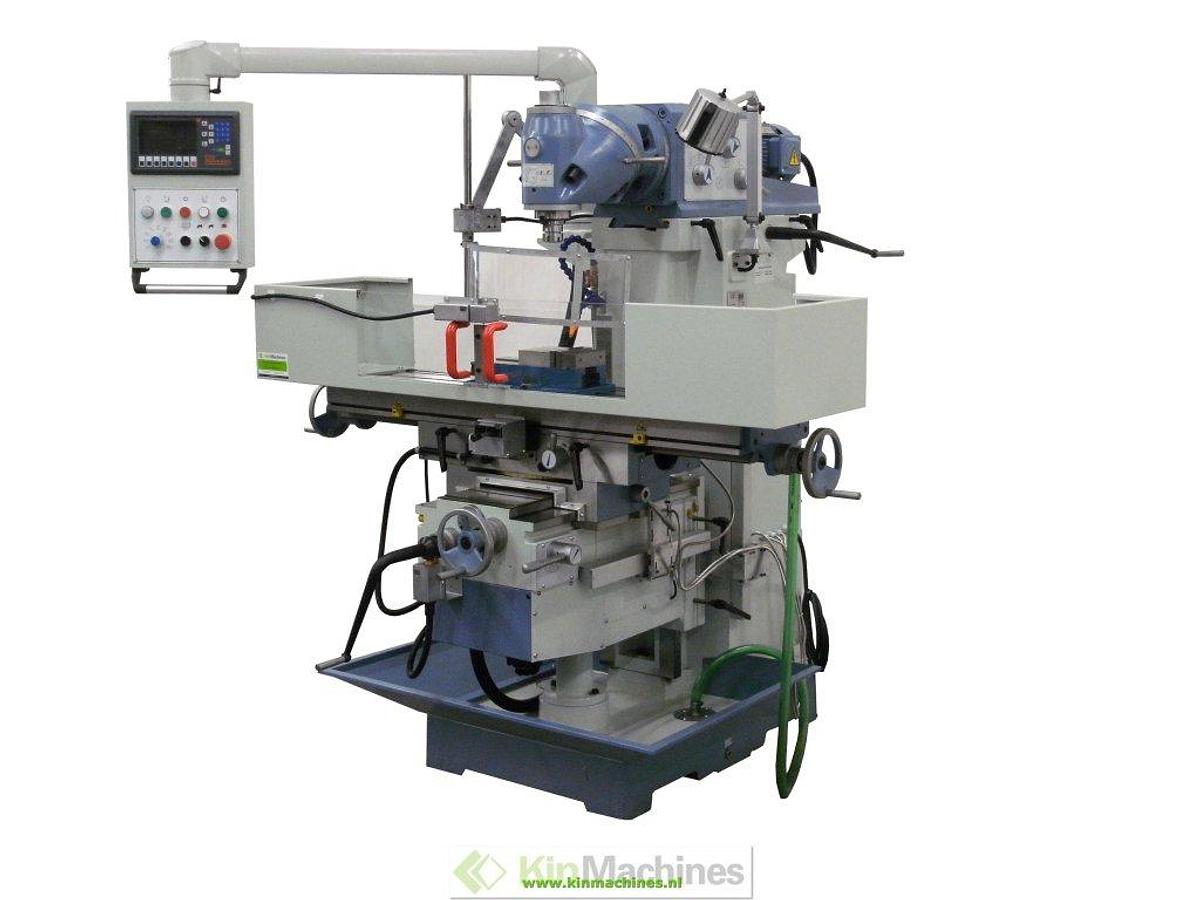

Milling machine KMS FU-300 (Servo drive power supplies)

Description

Universal milling machine for light and medium milling operations with Huron type milling head. Stable machine due to heavy cast iron machine frame. Because of the rotatable control panel always the control in the right place to perform the operations properly. All axes (X, Y and Z) are equipped with automatic feed in 8 speeds and rapid traverse. Driven by servo motor. Table is adjustable to the left and right at an angle of 45°. Delivery incl: Digital readout on 3 axes (Easson LCD screen with Sino rulers). Machine illumination Cooling pump Shield spindle Coolant container base Splash guard around table Central lubrication system (manually operated) Tension bar to fix tools Machine clamp Collet set ISO-40 with ER-32 collets 6, 8, 10, 12, 16 and 20 mm Push-on routing mandrel ISO-40 Accessories for horizontal milling (counter bearing and long cutter mandrel)

Specifications

Manufacturer	KMS
Model	FU-300
Condition	New
Mains voltage	400V, 50Hz
Soort	Milling machine
Spindle mount	ISO 40
Spindle speeds	11 ( 45 - 1660 rpm)
Table dimensions	1270 x 300 mm
T-slots (number / width / distance)	3 / 14 mm / 80 mm
Table swiveling	-45° ~ +45°
Distance from spindle to table	50 - 450 mm
Displacement table x / y / z	720 / 300 / 400 mm
Displacement head vertical	400 mm
Table power supplies x / y	8 (30 - 830 mm/min)
Table food z	8 (23 - 625 mm/min)
Calibration table x / y / z	1335 / 1335 / 1000 mm/min
Motor	3 kW
Servomotor	10 Nm
Weight	± 1700 kg
