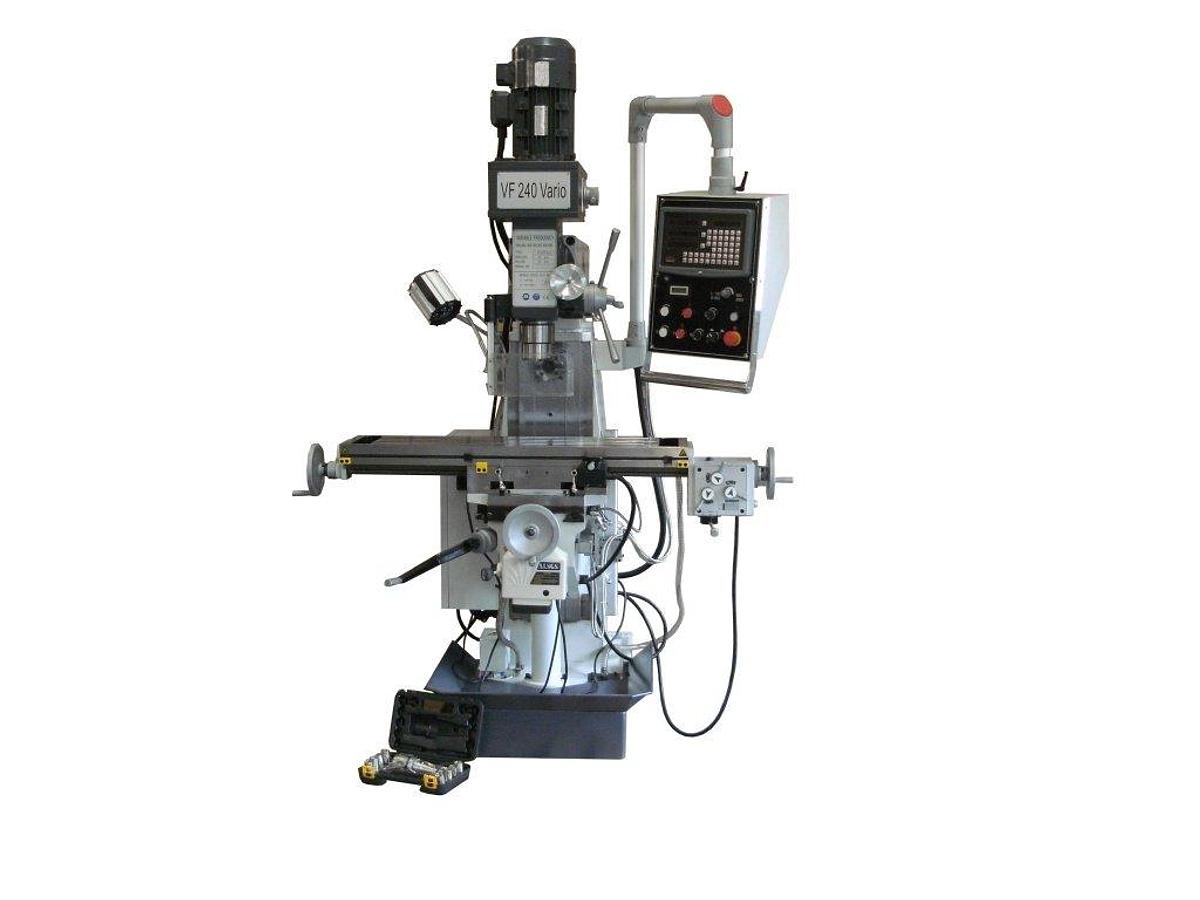

KMS VF 240 Vario milling machine
KMS VF 240 Vario milling machine
€7,950 (EUR)
Available quantity:1
or
Call +31 655 062 286
Description
Universal milling machine with variable speed on vertical axis.
Horizontal axis speed adjustable by means of V-belts.
Machine is supplied including:
Digital readout on 3-axis (Sino)
Power supply on longitudinal and transverse table
Hold bar M16
Collet set
Drill chuck 3 - 16 mm incl. ISO40 B18 holder
Adapter sleeve ISO40-MC3
Adapter sleeve ISO40-MC2
Cooling pump
Worklight
Horizontal routing mandrel ISO40 - Ø22/Ø27
T-slot bolts M14x55 (for fixing accessories on the table)
Price is for turnkey machine, Af Staphorst.
Specifications
| Manufacturer | KMS |
| Model | VF 240 Vario |
| Condition | New |
| Spindle mount | ISO 40 |
| Soort | Milling machine |
| Spindle speed | Vertically Variable ( 100-600 / 350-2000 rpm ) |
| Horizontal 9 pieces ( 600-1350 rpm) | |
| Distance vertical spindle - column | Adjustable 250 - 650 mm |
| Distance vertical spindle - table surface | 60 - 360 mm |
| Distance horizontal spindle - table surface | 20 - 320 mm |
| Spindle displacement vertical | 120 mm |
| Table size | 1000 x 240 mm |
| Table displacement | 580 x 230 mm |
| Motor | Vertical spindle 2.2 kW (3 hp) |
| Machine dimensions | 1500 x 1220 x 2100 mm |
| Machine weight | 850 kg |
| Mains voltage | 400V |
