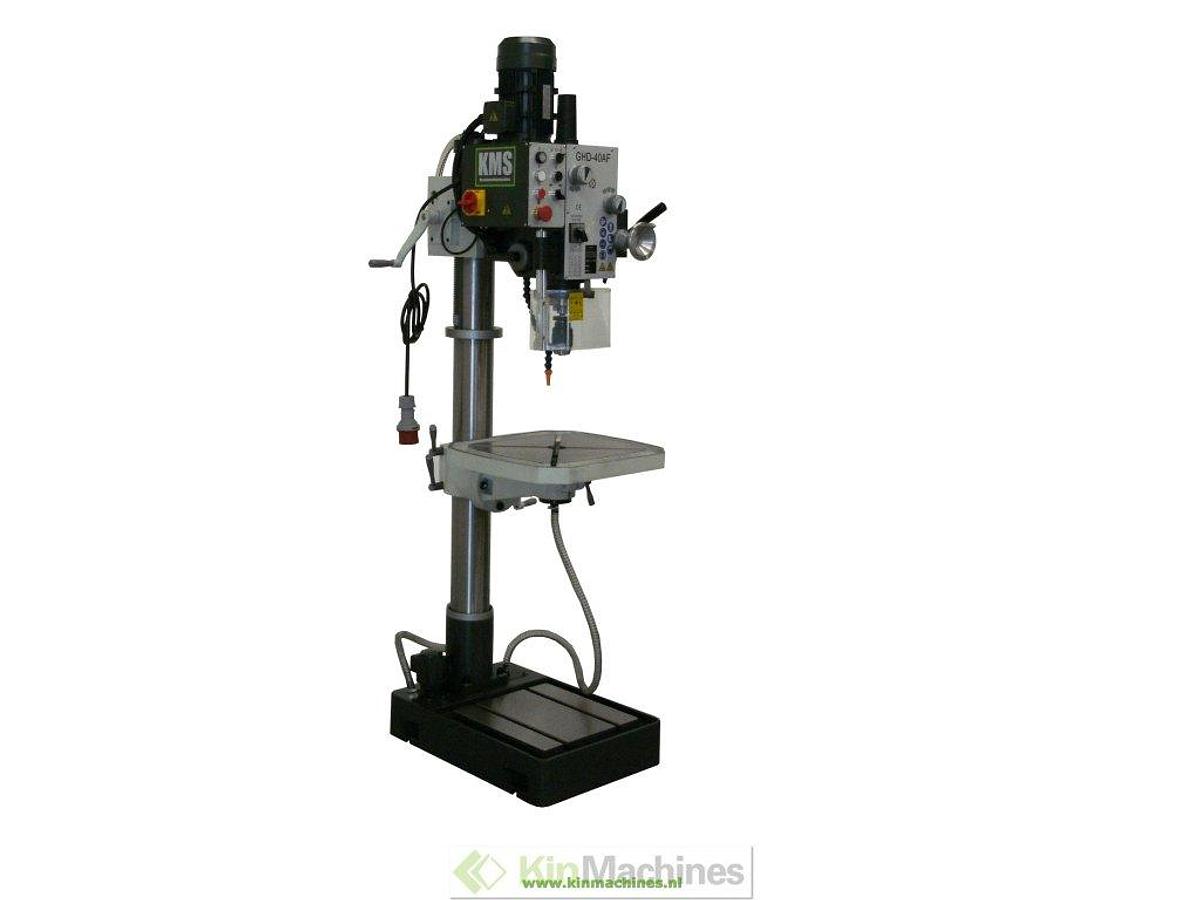

Column drilling machine KMS GHD-40AF
Column drilling machine KMS GHD-40AF
Contact us for price
Available quantity:3
or
Call +31 655 062 286
Description
New column drill with large square table.
Features:
Automatic feeding (3 speeds)
Coolant device
Filling device
Emergency stop
Shielding
Head can be tilted and moved up/down
Table can be tilted and moved up/down
Specifications
| Manufacturer | KMS |
| Model | GHD-40AF |
| Condition | New |
| Spindle mount | MC4 |
| Soort | Column Drilling machine |
| Drilling capacity | Ø 32 mm (Steel St-37) |
| Column diameter | Ø115 mm |
| Distance spindle - column | 297.5 mm |
| Max. distance spindle to table | 718 mm |
| Max. distance spindle to base | 1180 mm |
| Spindle stroke | 120 mm |
| Speeds | 12 (95 - 3200 rpm) |
| Table size | 500 x 460 mm |
| Weight | 320 kg |
| Engine power | 1.1 / 1.5 kW |
