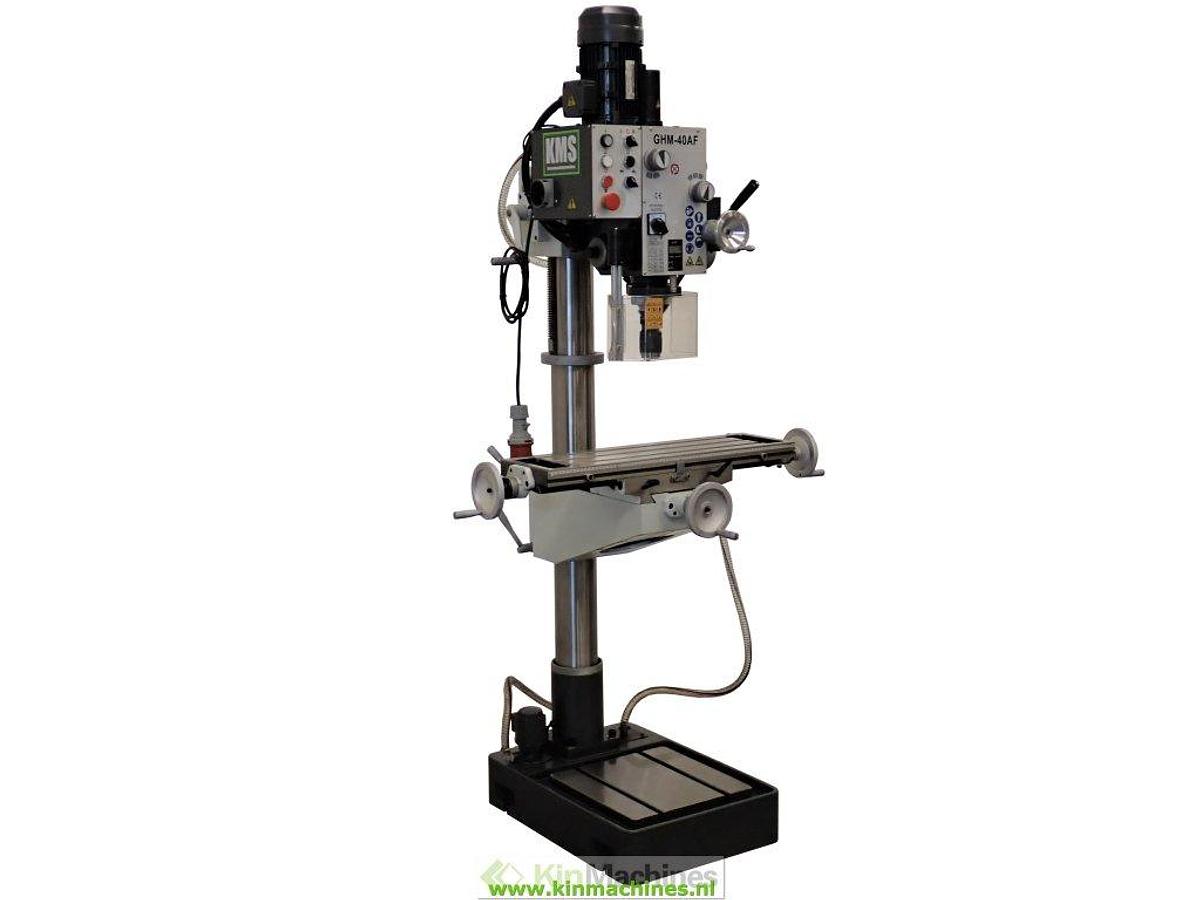

Column drill with cross table | KMS GHM-40AF | Spindle feed | Tapping function
Column drill with cross table | KMS GHM-40AF | Spindle feed | Tapping function
€3,250 (EUR)
Available quantity:6
or
Call +31 655 062 286
Description
New column drill with cross table.
Also suitable for light milling work.
Milling head not included, but available.
Includes:
Automatic power supply
Coolant device
Filling device
Emergency stop
Shielding
Head can be tilted and moved up/down.
(Delivery machine ex Staphorst, ready for operation and tested)
Specifications
| Manufacturer | KMS |
| Model | GHM-40AF |
| Condition | New |
| Spindle mount | MC4 |
| Soort | Column Drilling machine |
| Drilling capacity | Ø 32 mm (Steel St-37) |
| Column diameter | Ø115 mm |
| Distance spindle - column | 280 mm |
| Max. distance spindle to table | 630 mm |
| Max. distance spindle to base | 1180 mm |
| Spindle stroke | 120 mm |
| Speeds | 12 (95 - 3200 rpm) |
| Table size | 730 x 210 mm |
| Displacement cross table | 480 x 195 mm |
| Weight | 320 kg |
| Engine power | 1.1 / 1.5 kW |
