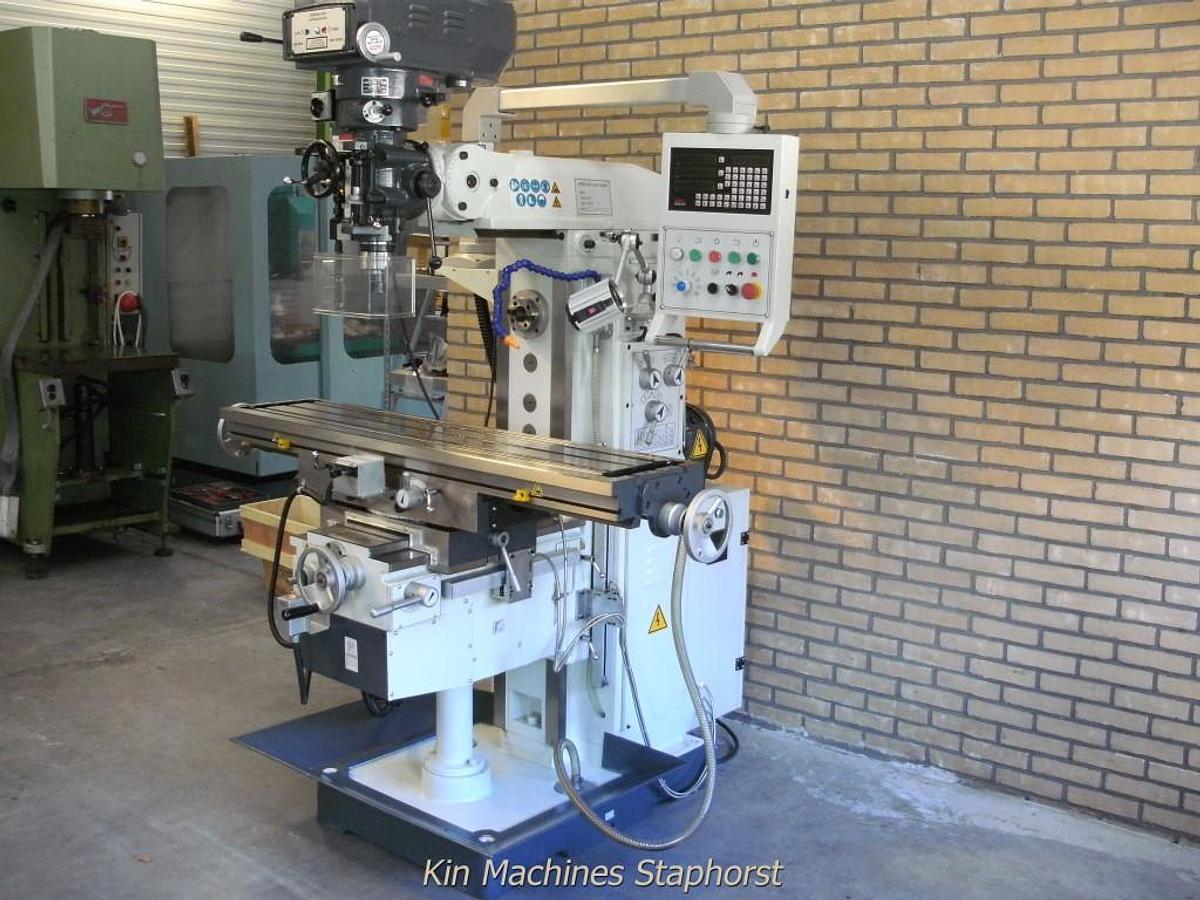

Milling machine KMS FVT-320A

Milling machine KMS FVT-320A

Contact us for price

Prijs
Ex.btw. / af Staphorst
Verzendkosten
Op aanvraag
Levering
Momenteel niet op voorraad, verwacht eind 2026

Description

Universal milling machine with variable speed on vertical axis. Machine is equipped with: Digital readout on 3-axis (Sino) Table feed on x, y and z axis Collet set Machine clamp Pneumatic tool fixing Horizontal milling mandrel Various associated tools

Specifications

ManufacturerKMS
ModelFVT-320A
ConditionNew
Spindle mountISO 40
SoortMilling machine
Spindle speedVertically Variable (60-500 / 500-4200 rpm)
Horizontal 35-1500 rpm
Distance vertical spindle - column178 - 868 mm
Distance vertical spindle - table surface240 - 640 mm
Distance horizontal spindle - table surface75 - 475 mm
Spindle displacement vertical127 mm
Auto feed spindle0.04 / 0.08 / 0.02 mm/om.
Table size1370 x 320 mm
Moving table (x, y, z)820 / 300 / 400 mm
Feed rates table (along/through/up30-830 / 30-830 / 23-625 mm/min
MotorVertical 2.2 kW
Machine dimensions (±)1660x1600x2500 (Width x depth x height)
