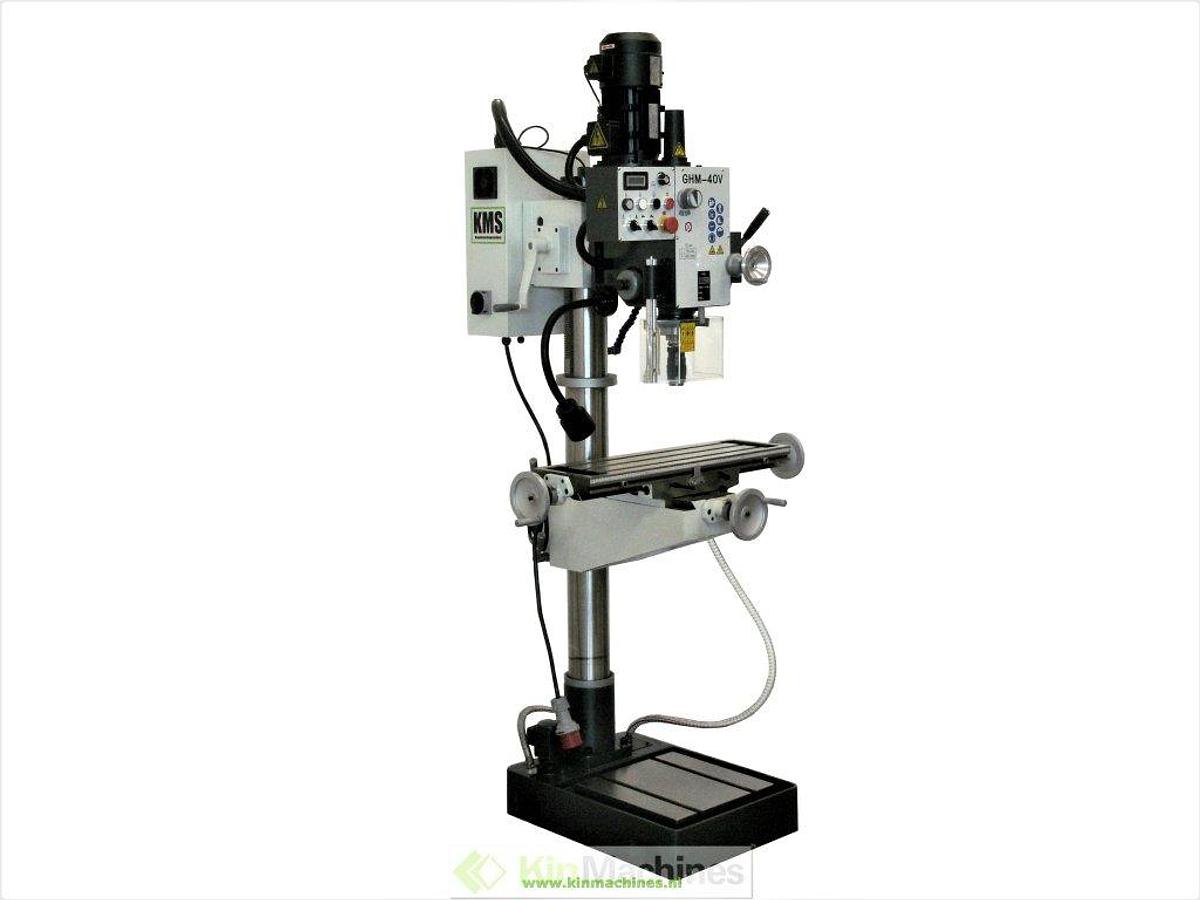

Column drilling machine with cross-table KMS GHM-40V, Variable speed
Column drilling machine with cross-table KMS GHM-40V, Variable speed
Contact us for price
or
Call +31 655 062 286
Description
New column drill with cross table and variable speed.
Also suitable for light milling work.
Milling head not included, but available.
Equipped with:
Variable speed
Automatic power supply on drill pinole
Coolant device
Filling device
Emergency stop
Shielding
Head can be tilted and moved up/down.
Specifications
| Manufacturer | KMS |
| Model | GHM-40V |
| Condition | New |
| Spindle mount | MC-4 |
| Soort | Column Drilling machine |
| Drilling capacity | Ø 32 mm (Steel St-37) |
| Column diameter | Ø115 mm |
| Distance spindle - column | 280 mm |
| Max. distance spindle to table | 610 mm |
| Max. distance spindle to base | 1165 mm |
| Spindle stroke | 125 mm |
| Speeds | Variable in 2 steps 75 - 435 / 435 - 2500 rpm |
| Table size | 730 x 210 mm |
| Displacement cross table | 480 x 225 mm |
| Weight | 390 kg |
| Engine power | 2.0 hp |
