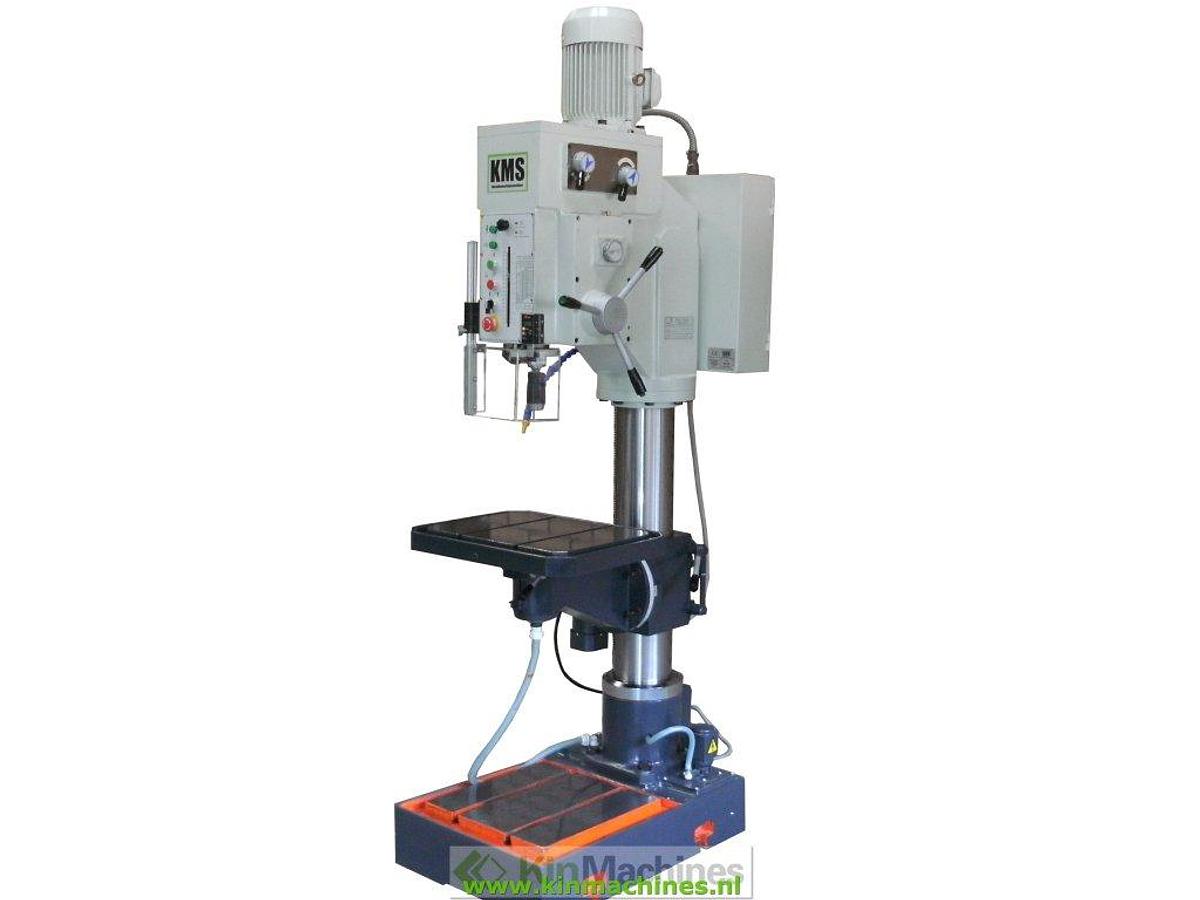

Column drilling machine KMS GHD-50B, Drilling up to Ø 50 mm.
Column drilling machine KMS GHD-50B, Drilling up to Ø 50 mm.
Contact us for price
or
Call +31 655 062 286
Description
Heavy and robust column drill for drilling up to Ø 50 mm.
Machine is equipped with:
Automatic feed
Tapping device
Electrically driven table displacement
Emergency stop
Shielding
Quick-action chuck up to 16 mm
Working light
Coolant device
Specifications
| Condition | New |
| Soort | Column Drilling machine |
| Brand: | KMS |
| Type: | GHD-50B |
| Spindle intake: | MC4 |
| Max. drill diameter (steel): | Ø 50 mm |
| Max tap diameter (steel): | M30 |
| Unloading (spindle to column): | 360 mm |
| Max. distance spindle to work table opp: | 600 mm |
| Max. distance spindle to opp. foot: | 1205 mm |
| Spindle stroke: | 180 mm |
| Max displacement work table in height: | 525 mm |
| Table slant adjustment: | +/- 45° |
| Speeds: | 12 ( 42 - 2050 rpm ) |
| Spindle power supplies: | 4 ( 0.07 / 0.15 / 0.26 / 0.40 mm/r) |
| Column diameter: | Ø 170 mm |
| Scope of work of table: | 500 x 370 mm |
| Scope of work of foot: | 460 x 450 mm |
| Main engine: | 3-phase 400V, 2-speed motor |
| Power main engine: | 2.2 / 2.8 kW |
| Electric cooling pump: | 3-phase 400V, 0.085 kW |
| Cooling pump output: | 6 l/min |
| Machine dimensions: | 980 x 580 x 2330 mm |
| Weight: | 750 kg |
