Workshop press / bearing press Mammuth 50 Ton, manual + pneumatically operated

Workshop press / bearing press Mammuth 50 Ton, manual + pneumatically operated

€1,650 (EUR)

Description

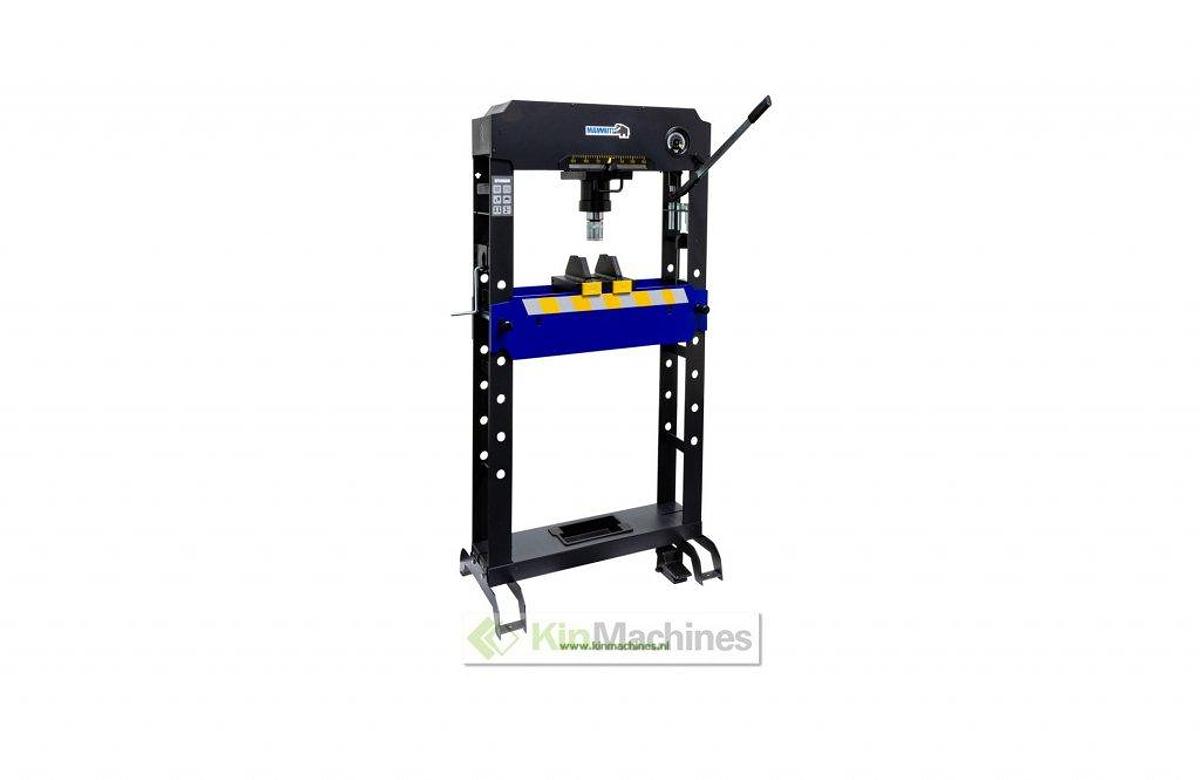

Press / garage press / bearing press / workshop press This Mammuth workshop press is of high quality and very stable thanks to the fully welded heavy frame. The work bed is easily manually adjustable in height using the hand winch. The press can be operated with the lever and pump and with a foot pedal on compressed air. The hydraulic cylinder is movable in width (bearing) and is equipped with a height-adjustable, 7.5cm long spindle. The integrated pressure gauge is used to read the compressed pressure. Includes: 2 heavy duty press blocks 8 press pins parts bin (delivery in crate)

Specifications

ManufacturerMammuth
ModelSP50HAM
ConditionNew
Capacity50 tons
SoortHydraulic press
Cylinder stroke145 mm
Bed width750 mm
Bed depth249 mm
Working range780 mm
Screw spindle length75 mm
Workload8 bar
Air connection1/4" NPT external thread
Machine weight250 kg
Dimension in packaging1865 x 1000 x 295 mm

Shipping details

Weight288 kg
