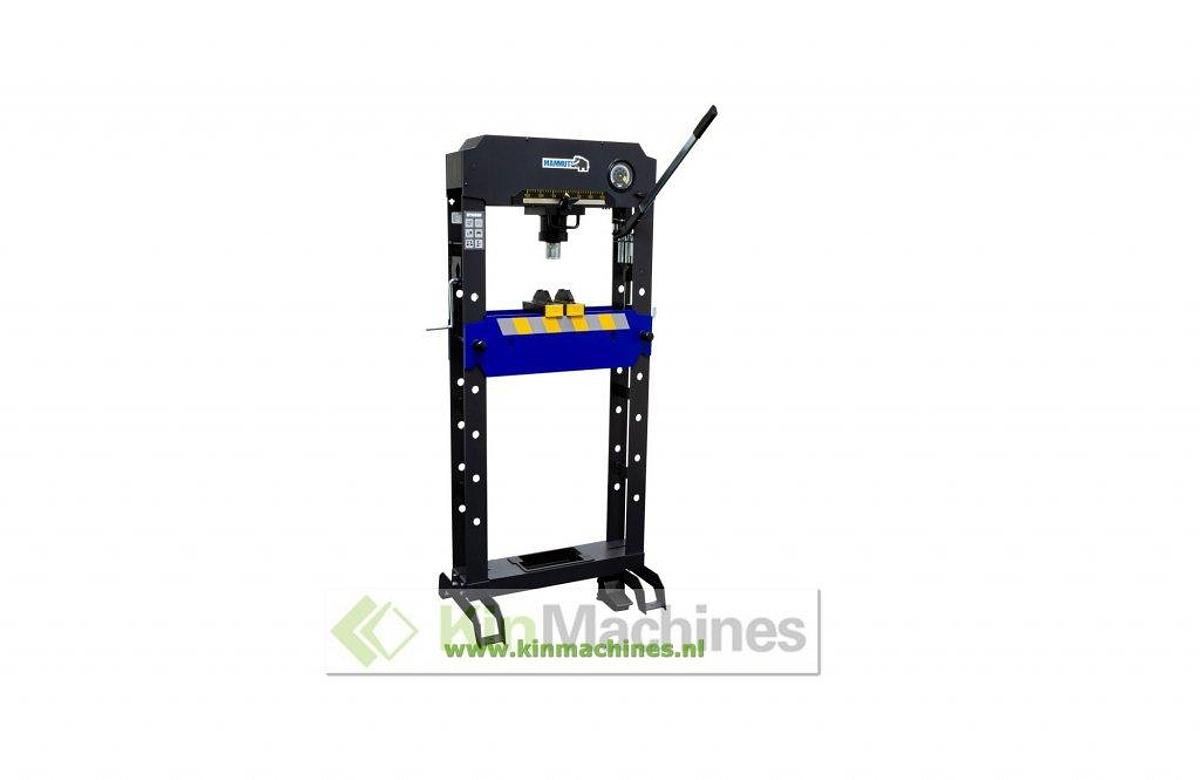

Workshop press / bearing press Mammuth 30 Ton, manual + pneumatically operated.

Workshop press / bearing press Mammuth 30 Ton, manual + pneumatically operated.
€1,100 (EUR)
or
Call +31 655 062 286
Description
Press / garage press / bearing press / workshop press
This Mammuth workshop press is of high quality and very stable thanks to the fully welded heavy frame.
The work bed is easily manually adjustable in height using the hand winch.
The press can be operated with the lever and pump (has two speeds) and with a foot pedal on compressed air.
The hydraulic cylinder is movable in width (bearing) and is equipped with a height-adjustable, 7.5cm long spindle.
Through the integrated pressure gauge, the pressing pressure is read.
Includes:
2 heavy duty press blocks
8 press pins
parts bin
(delivery in crate)
Specifications
Manufacturer | Mammuth |
Model | SP30HAM |
Condition | New |
Capacity | 30 tons |
Soort | Hydraulic press |
Cylinder stroke | 145 mm |
Bed width | 600 mm |
Bed depth | 187 mm |
Working range | 850 mm |
Screw spindle length | 75 mm |
Workload | 8 bar |
Air connection | 1/4" NPT external thread |
Dimension in packaging | 1750 x 840 x 240 mm |
Shipping details
Weight | 194 kg |
