Workshop press | Hydraulic press | KMS DPM-K 1070/100 | 100 tons
Workshop press | Hydraulic press | KMS DPM-K 1070/100 | 100 tons
Contact us for price
or
Call +31 655 062 286
Description
Hydraulic press or workshop press.
Equipped with including :
Welded steel frame
Pressure relief valve
Height adjustable table
Pressure gauge
Foot pedal
Digital cylinder stroke readout
Moveable cylinder (left/right)
V-blocks
Limit switches for stroke setting
Pressure setting
Various models available. See overview on last image for available models.

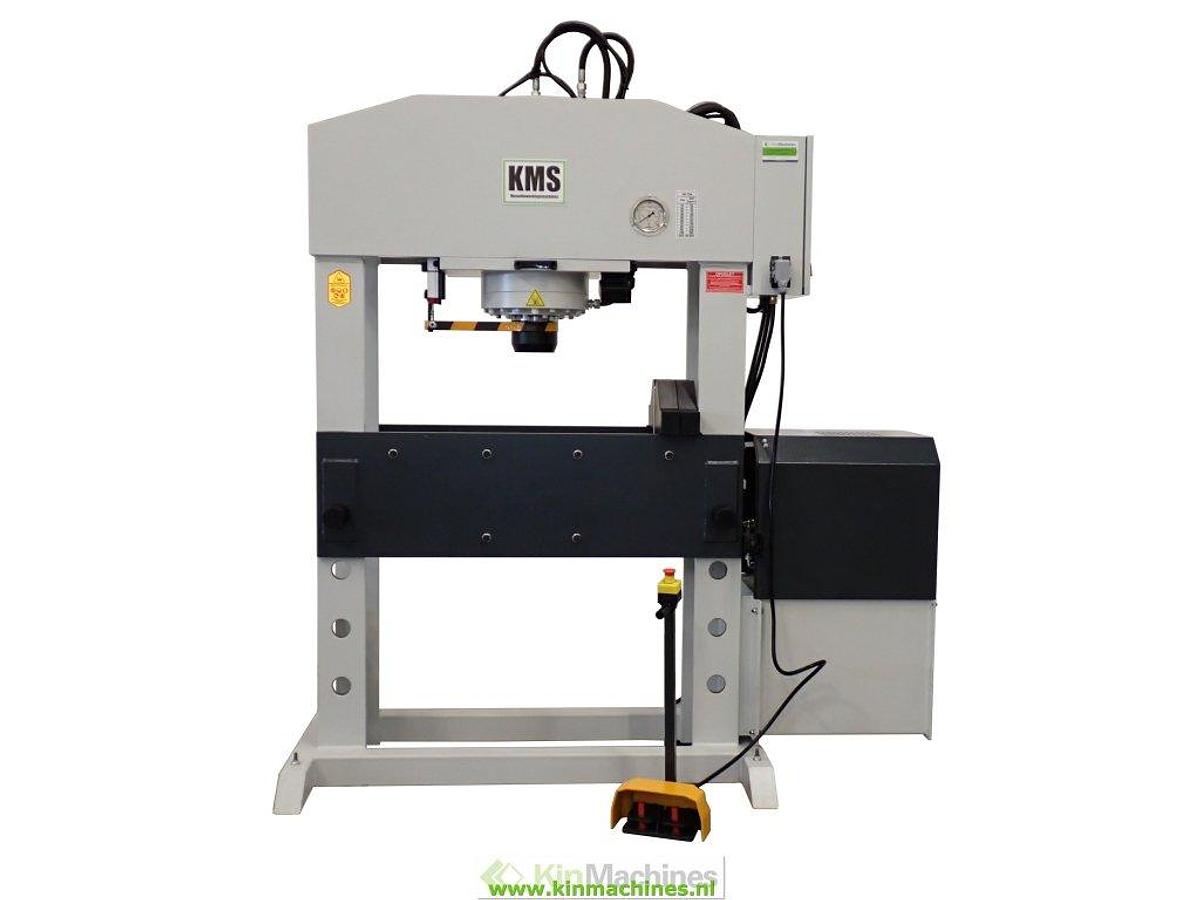

Pictured press currently available from stock.
Specifications
| Manufacturer | KMS |
| Model | DPM-K 1070/100 |
| Condition | New |
| Mains voltage | 400V |
| Soort | Hydraulic press |
| Tonnage | 100 Tons |
| Cylinder stroke | 300 mm |
| Max. working pressure | 263 bar |
| Descent rate | 8 mm/sec. |
| Press speed | 5 mm/sec. |
| Return speed | 10 mm/sec. |
| Machine dimensions | 1000 x 2110 x 2430 (Depth x Width x Height) |
| Machine weight | 1500 kg |
