Plasma cutter | 50A | Soldatech PL50HG

Plasma cutter | 50A | Soldatech PL50HG
€475 (EUR)
or
Call +31 655 062 286
Description
Plasma cutter
This Soldatech
powered by HG
plasma cutter cuts various materials with high-quality results. The PL50HG is a compact, powerful and easy to operate plasma cutter that features Pilot ARC pre-ignition. This in combination with the HF ignition ensures that this cutter ignites very easily and cuts through rusted, coated or textured material up to 20mm with ease.
The PL50HG features a user-friendly control panel and can even be adjusted during cutting operations to achieve the best cutting result.
Modern IGBT inverter technology not only ensures that the PL50HG delivers durable performance with more power, but it also makes the unit lightweight and portable. Overload protection combined with a built-in fan prevents overheating and ensures high-quality welding performance for a long time.
Ideal for cutting low alloy steels, stainless steels and aluminum alloys.
Each PL50HG comes standard including:

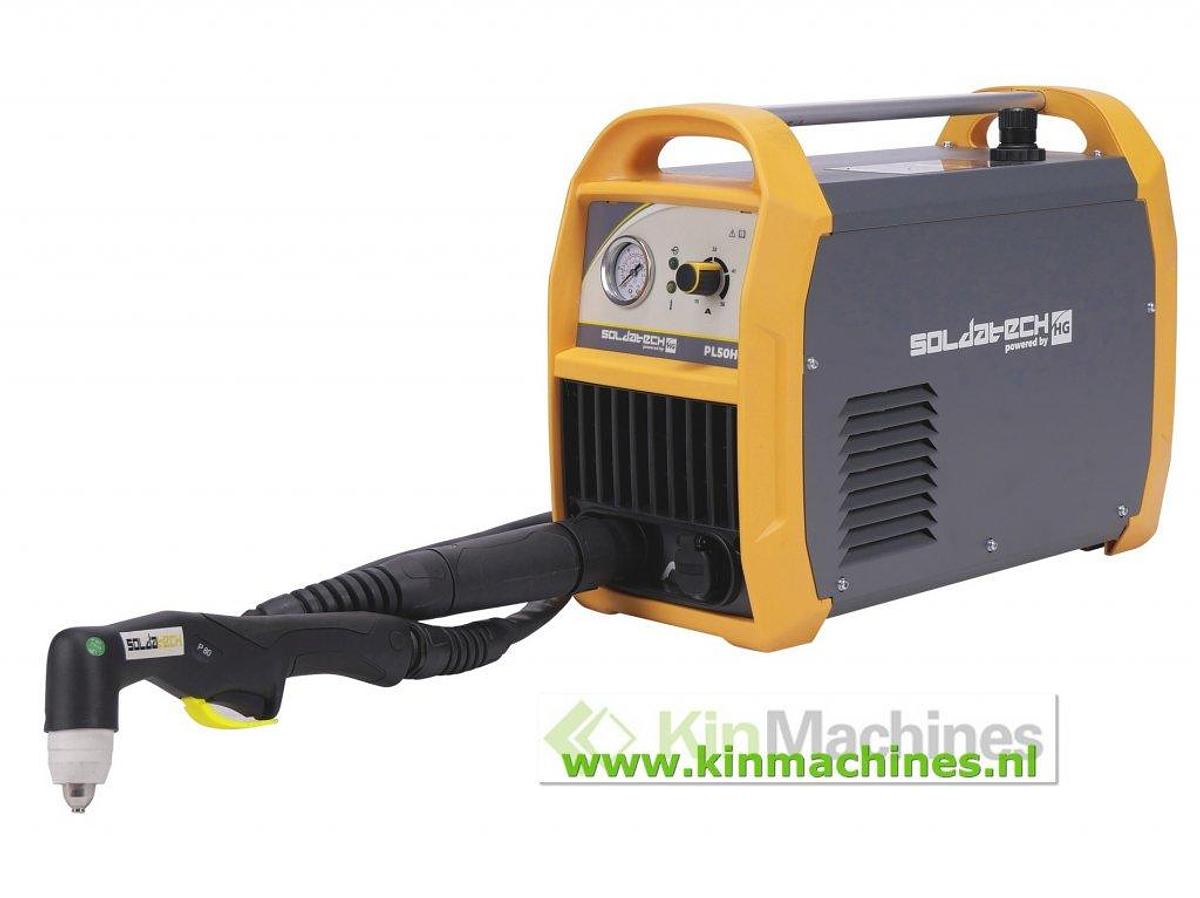

Soldatech PL80M5 plasma torch with 5m cable
Workpiece clamp with 2m 16mm² cable
Gas pipe of 4m with hose clamps
Neoprene power cable with 2m 3×2.5mm² cable
European dinse-couplings 9mm
Specifications
Manufacturer | Soldatech |
Model | PL50HG |
Condition | New |
Mains voltage | 230V |
Soort | Plasma cutter |
Frequency | 50/60 Hz |
Fuse | 16A C-car |
Input power | 7.6 kVA |
Power-on time (at 20 degrees ambient temperature) | 60% - 50A |
Power-on time (at 40 degrees ambient temperature) | 20% - 50A |
Cutting current range | 15 - 50A |
Max. no-load voltage | 293 V |
Max cutting thickness | 20 mm |
Recommended cutting thickness | 12 mm |
Air consumption | 220 L/min |
Protection class | IP21S |
Dimensions | 459 x 200 x 338 mm |
Weight | 11 kg |
Shipping details
Width | 30.5 cm |
Height | 42 cm |
Length | 52.5 cm |
Weight | 18 kg |
