Welding manipulator WP220 (220 kg)

Welding manipulator WP220 (220 kg)
€850 (EUR)
or
Call +31 655 062 286
Description

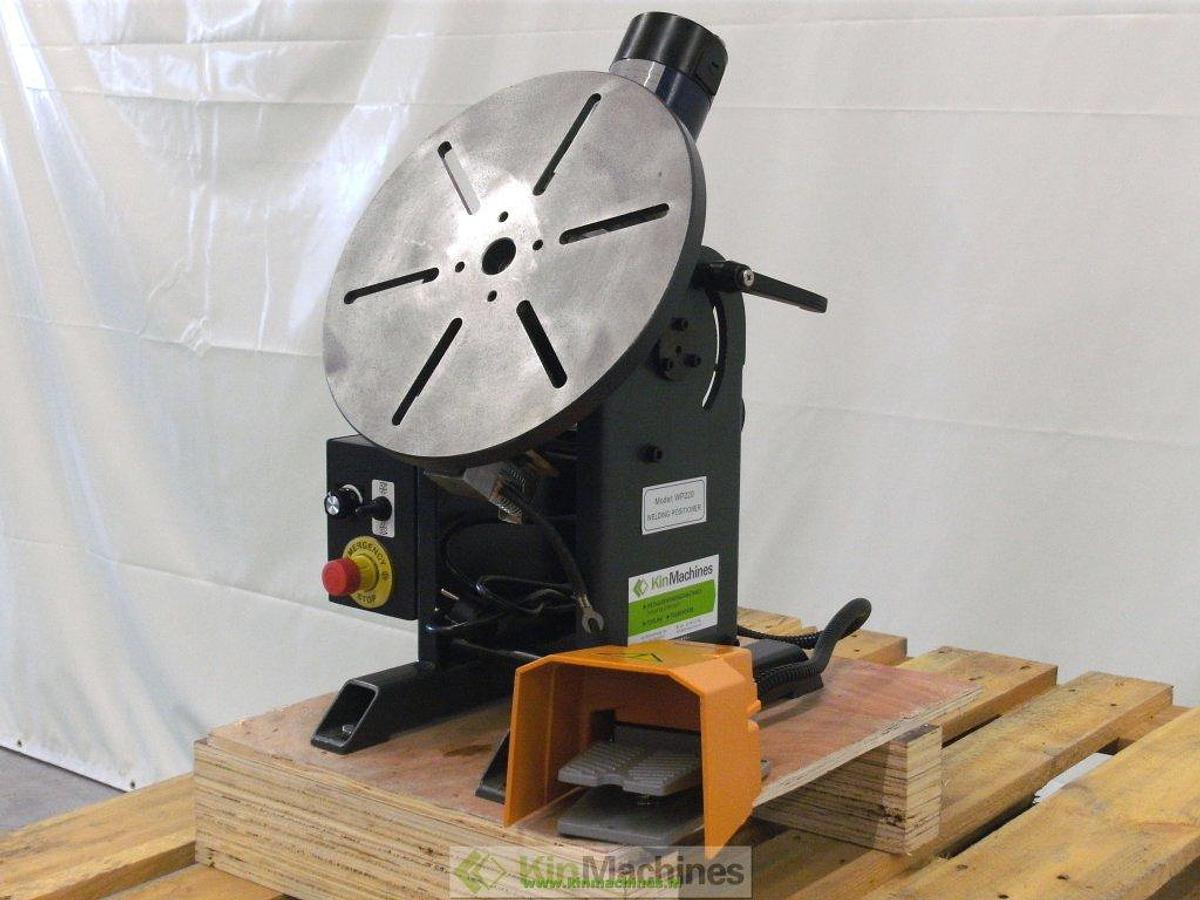

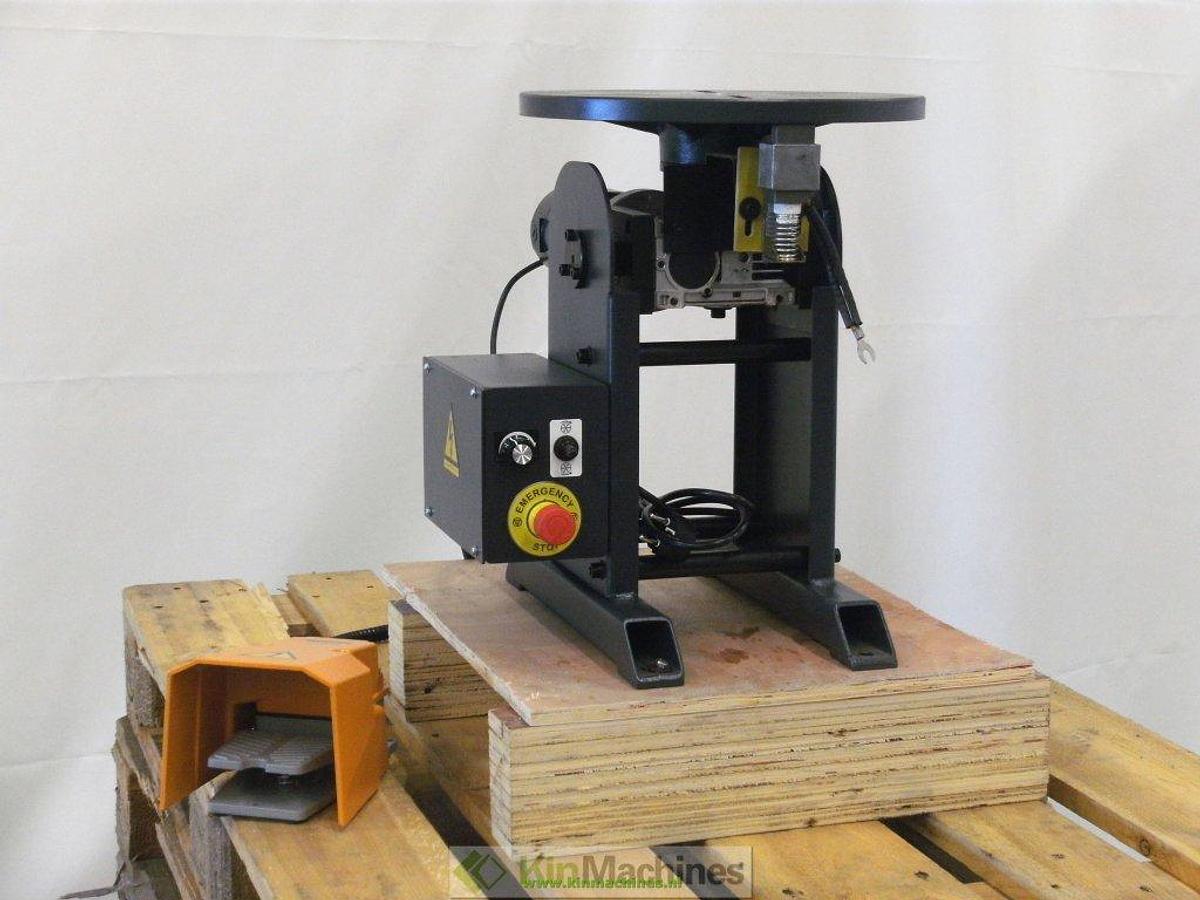

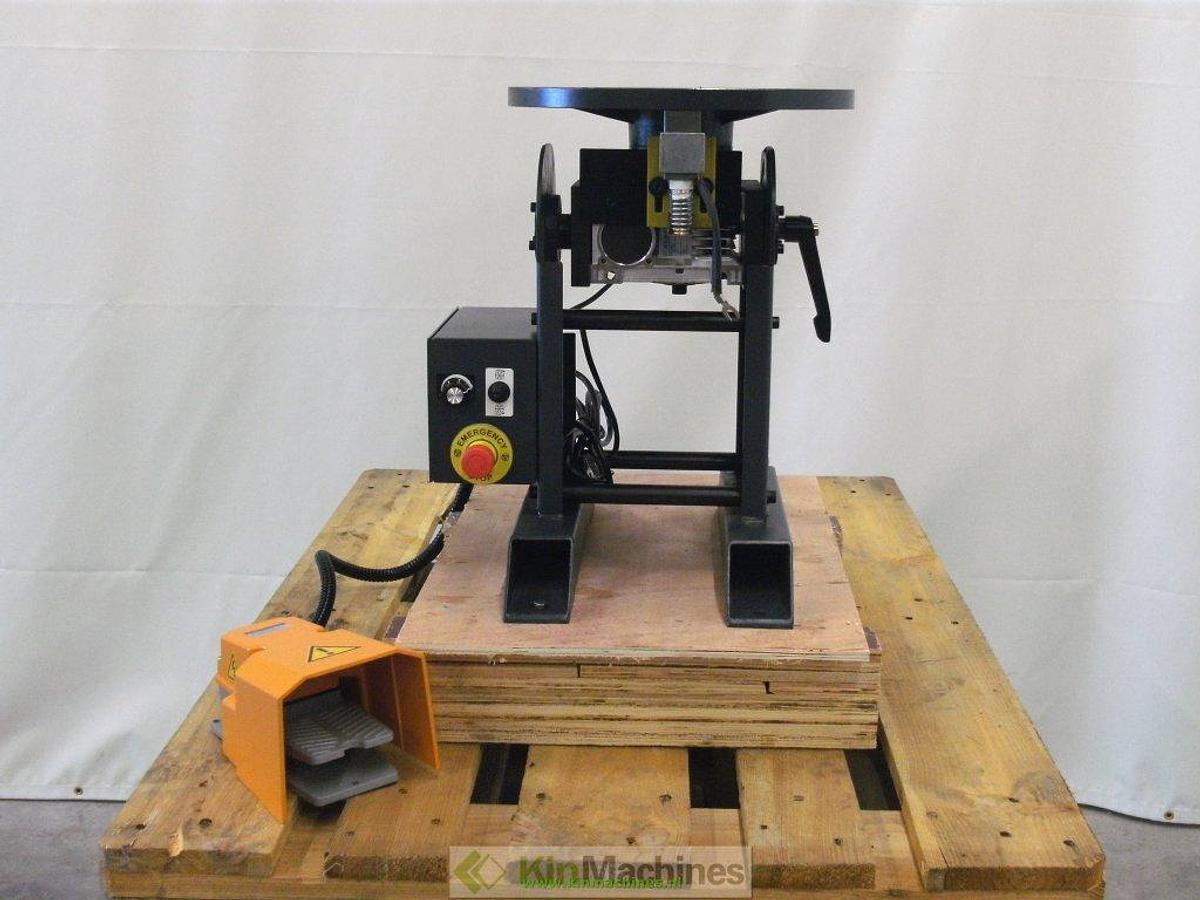

Welding manipulator for placing the workpiece to be welded at the correct angle.
A welding manipulator also offers the possibility of rotating a product during welding so that, for example, a round workpiece can be welded perfectly.

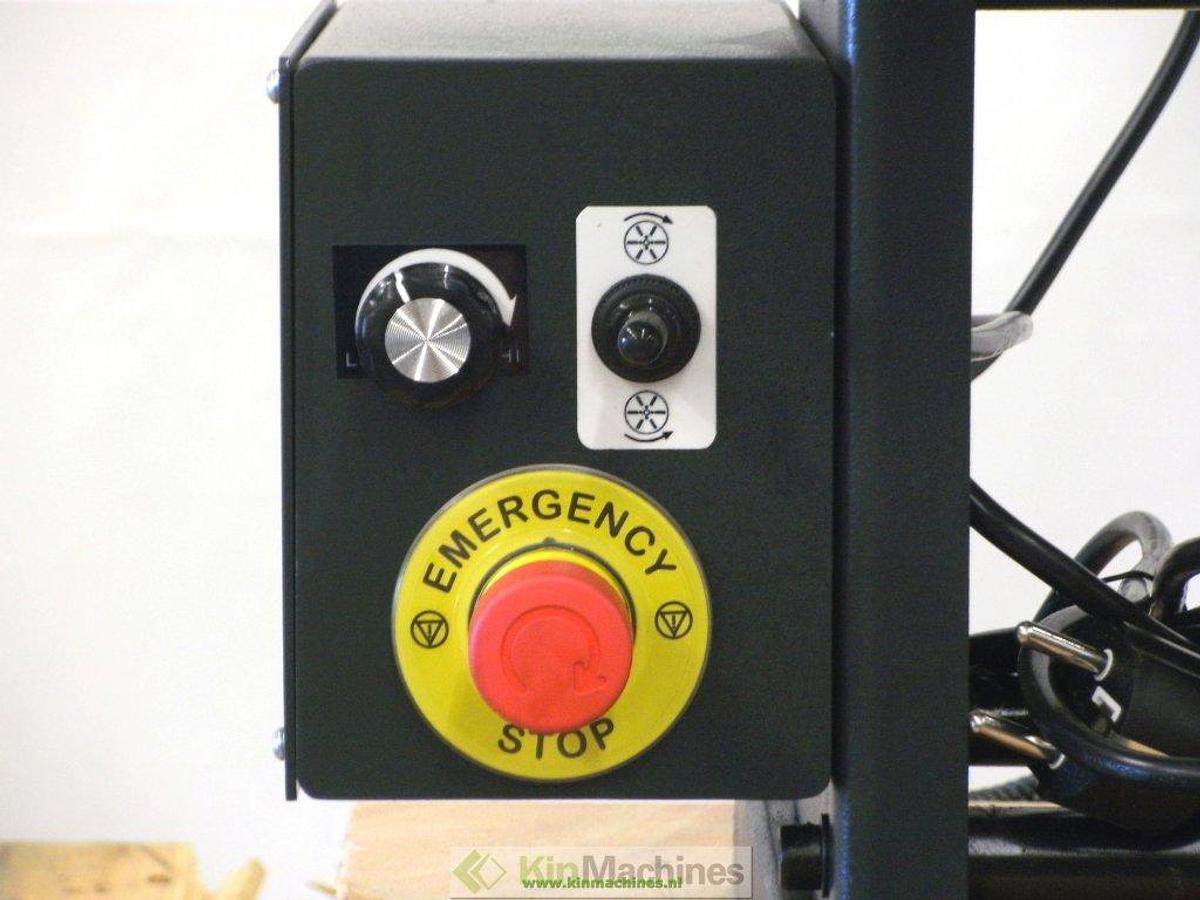

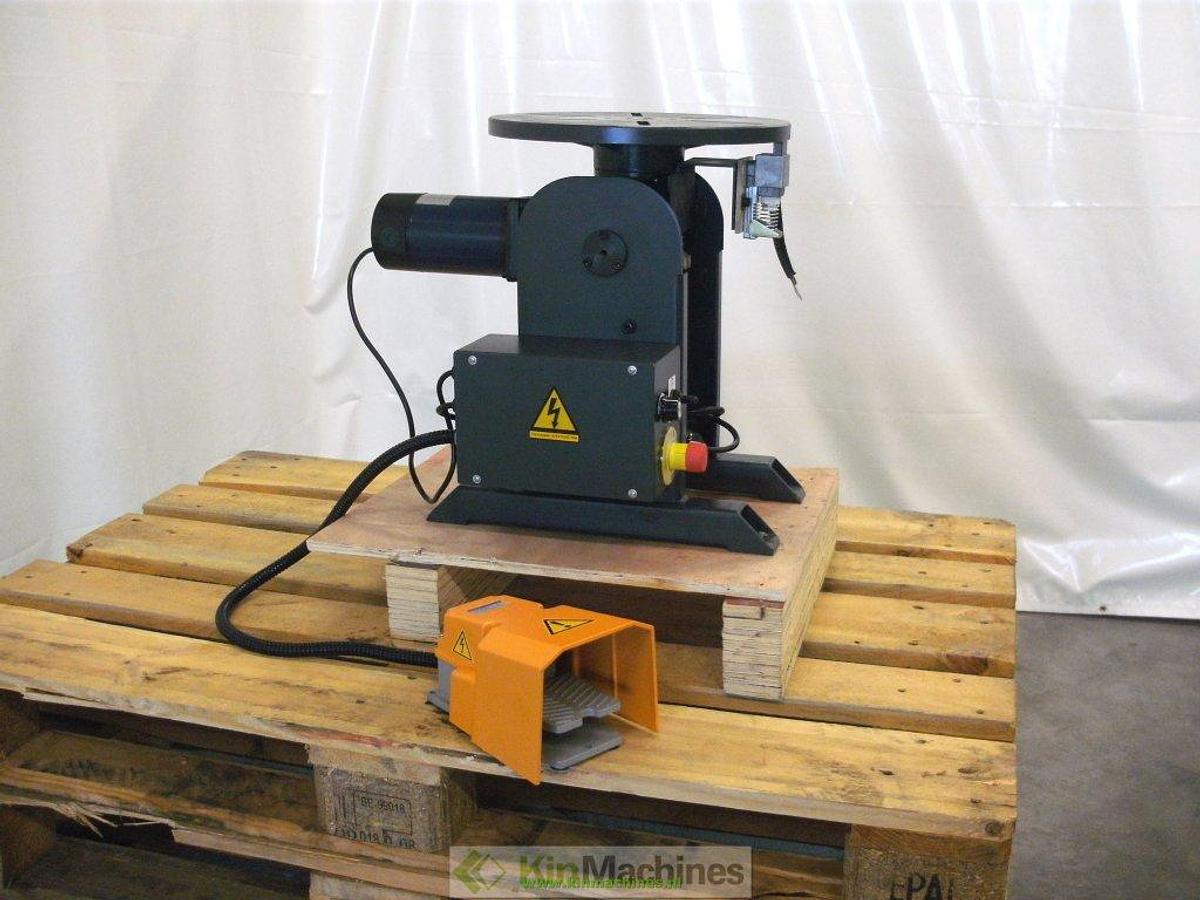

The WP-220 welding manipulator is equipped with a foot pedal so that the manipulator can be operated by foot during welding and both hands are free for welding.
Optional:
Specifications
Manufacturer | KMS |
Model | WP220 |
Condition | New |
Mains voltage | 230V |
Soort | Welding Manipulator |

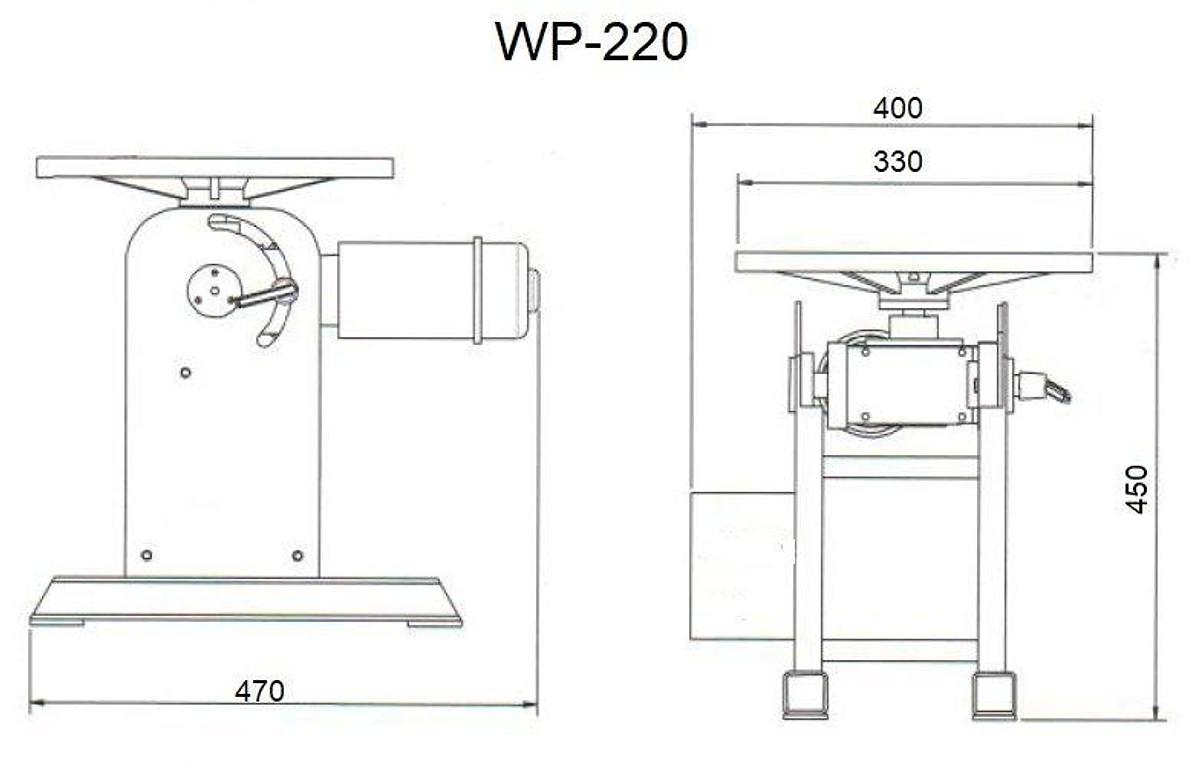

Table diameter | 330 mm |
Table height | 450 mm |
Horizontal loading capacity | 220 kg |
Vertical loading capacity | 100 kg |
Rotary speed | 0 - 5 rpm |
Tilt angle | 0 - 135° |
Tilting | Manual |
Motor | 125 W |
Shipping details
Width | 44 cm |
Height | 59 cm |
Length | 56 cm |
Weight | 40 kg |
