Welding manipulator WP500 (500 kg)
Welding manipulator WP500 (500 kg)
€2,350 (EUR)
or
Call +31 655 062 286
Description

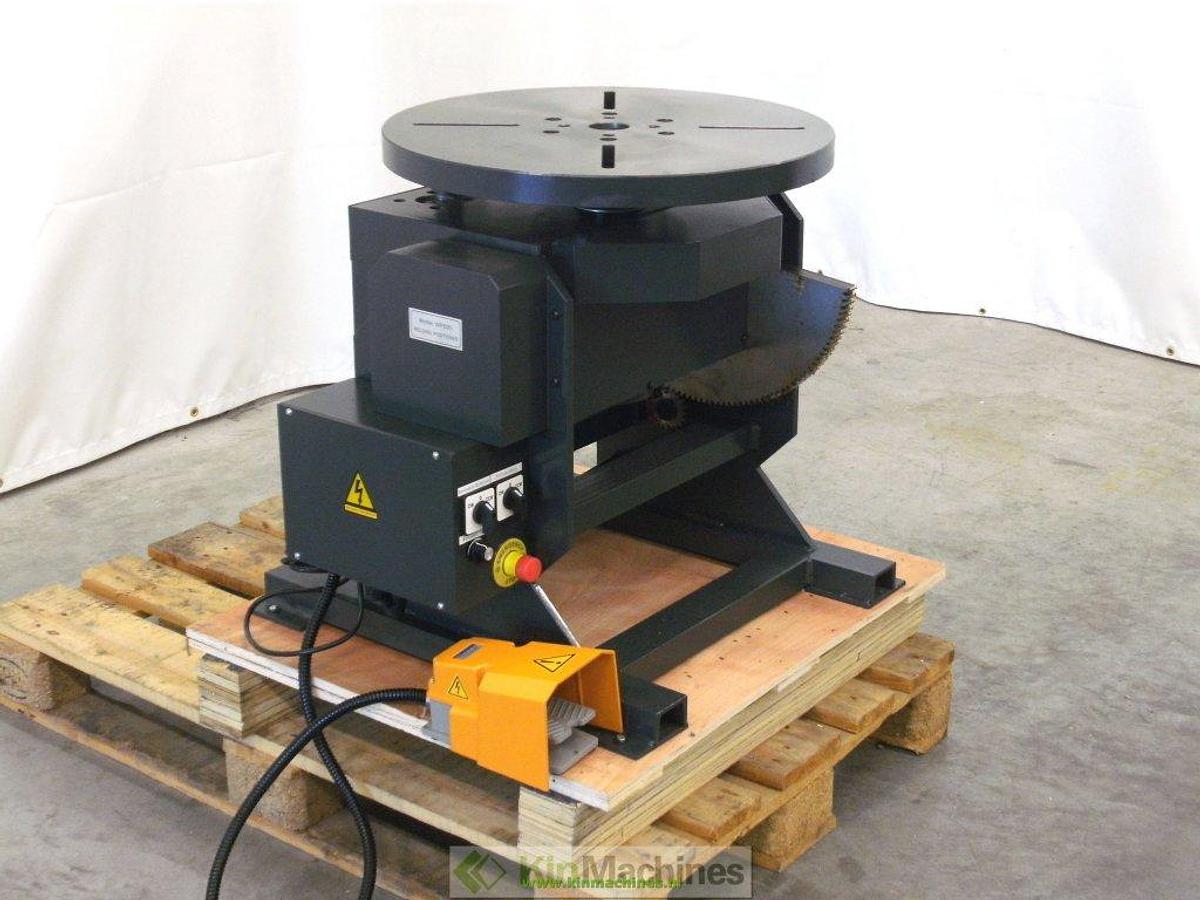

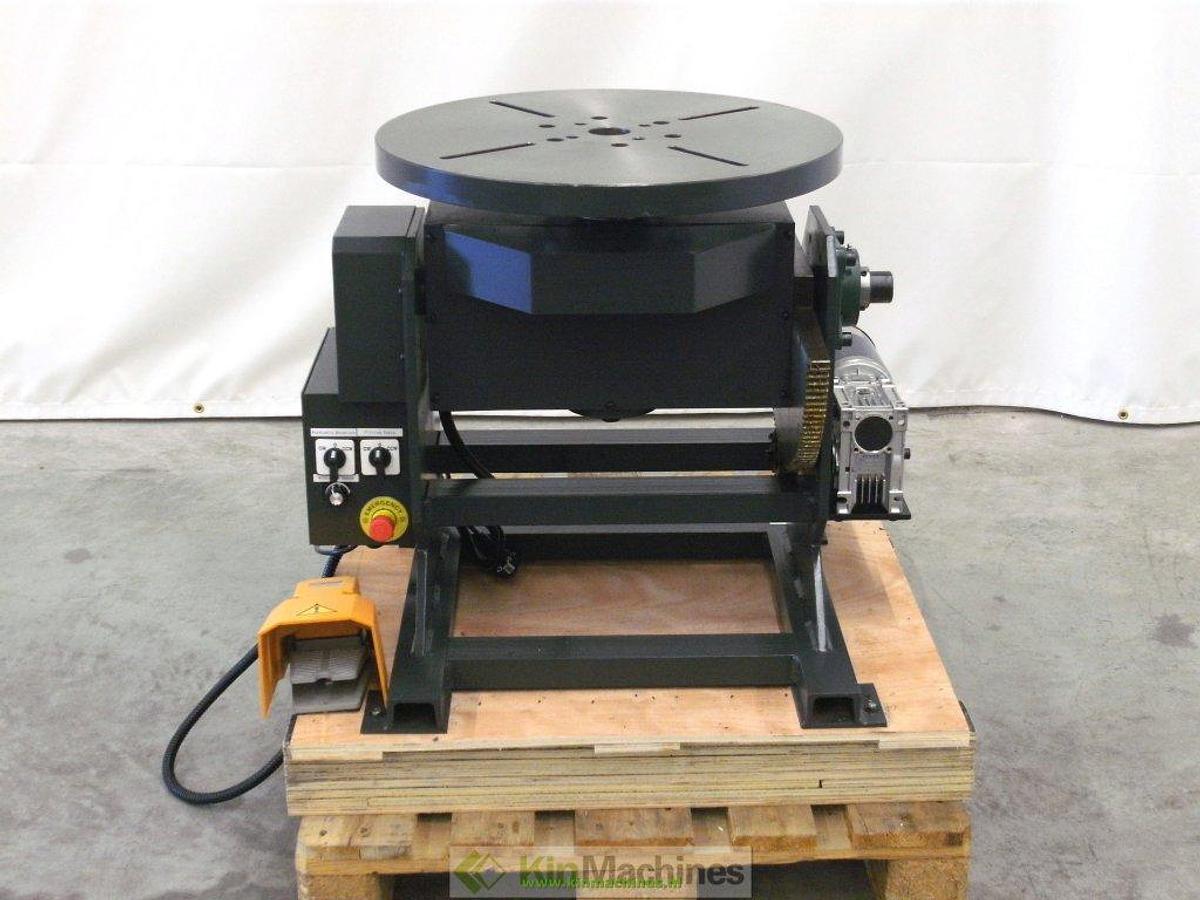

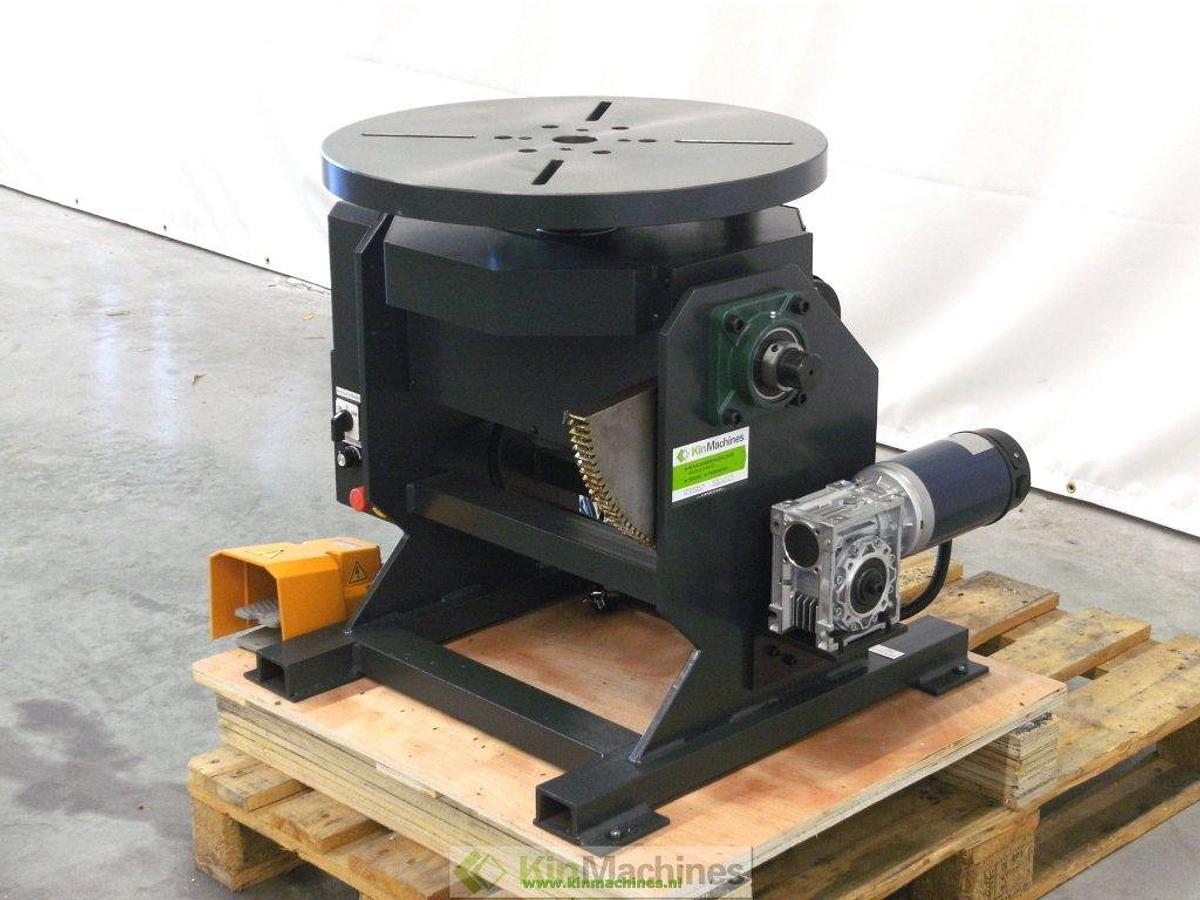

Welding manipulator for placing the workpiece to be welded at the correct angle.
A welding manipulator also offers the possibility of rotating a product during welding so that, for example, a round workpiece can be welded perfectly.

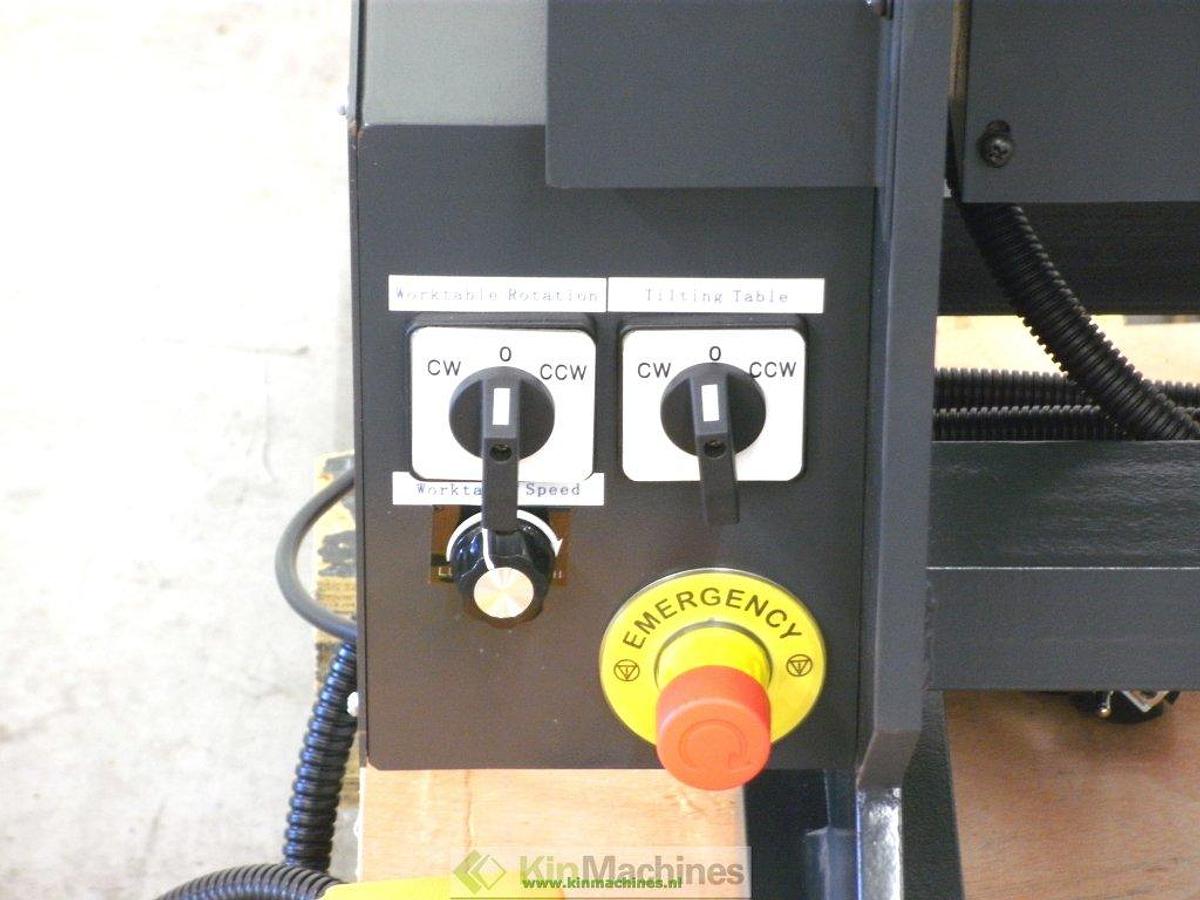

The WP-500 welding manipulator is equipped with a foot pedal so that the manipulator can be operated by foot during welding and both hands are free for welding.
Optional:
Specifications
| Manufacturer | KMS |
| Model | WP500 |
| Condition | New |
| Stock Number | 00054 |
| Mains voltage | 230V |
| Soort | Welding Manipulator |

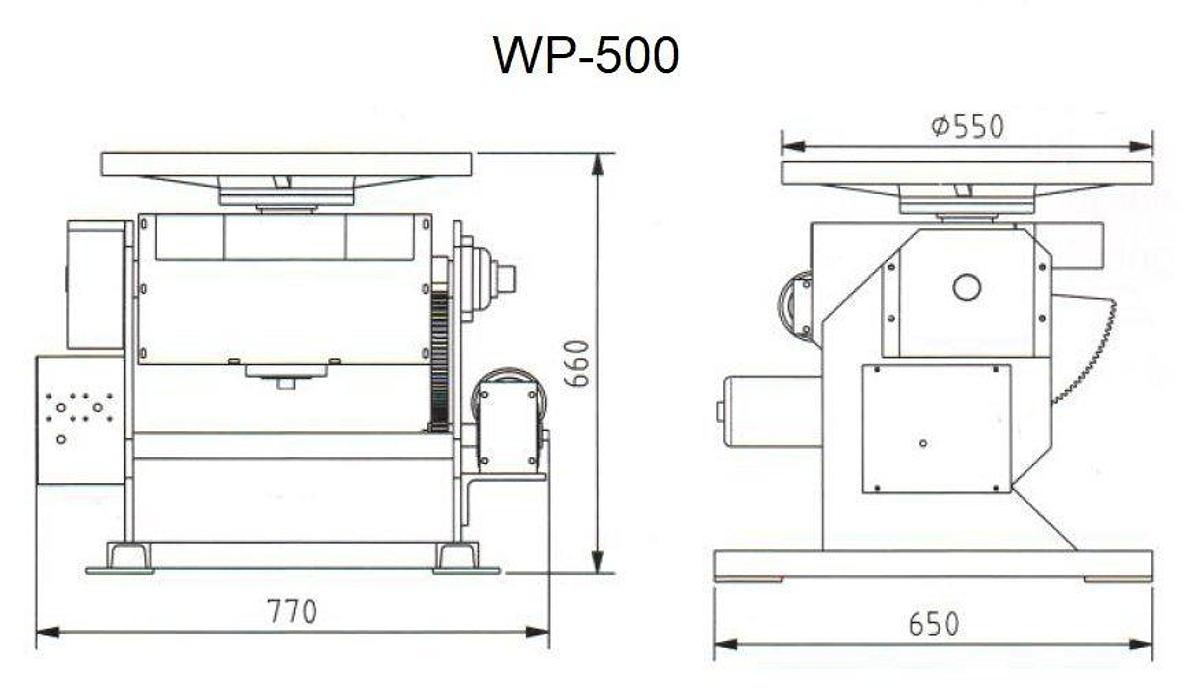

| Table diameter | 550 mm |
| Table height | 660 mm |
| Horizontal loading capacity | 500 kg |
| Vertical loading capacity | 250 kg |
| Rotary speed | 0 - 5 rpm |
| Tilt angle | -45° - 90° |
| Tilting | Motor |
| Motor | 400 W |
Shipping details
| Width | 80 cm |
| Height | 95 cm |
| Length | 120 cm |
| Weight | 240 kg |
