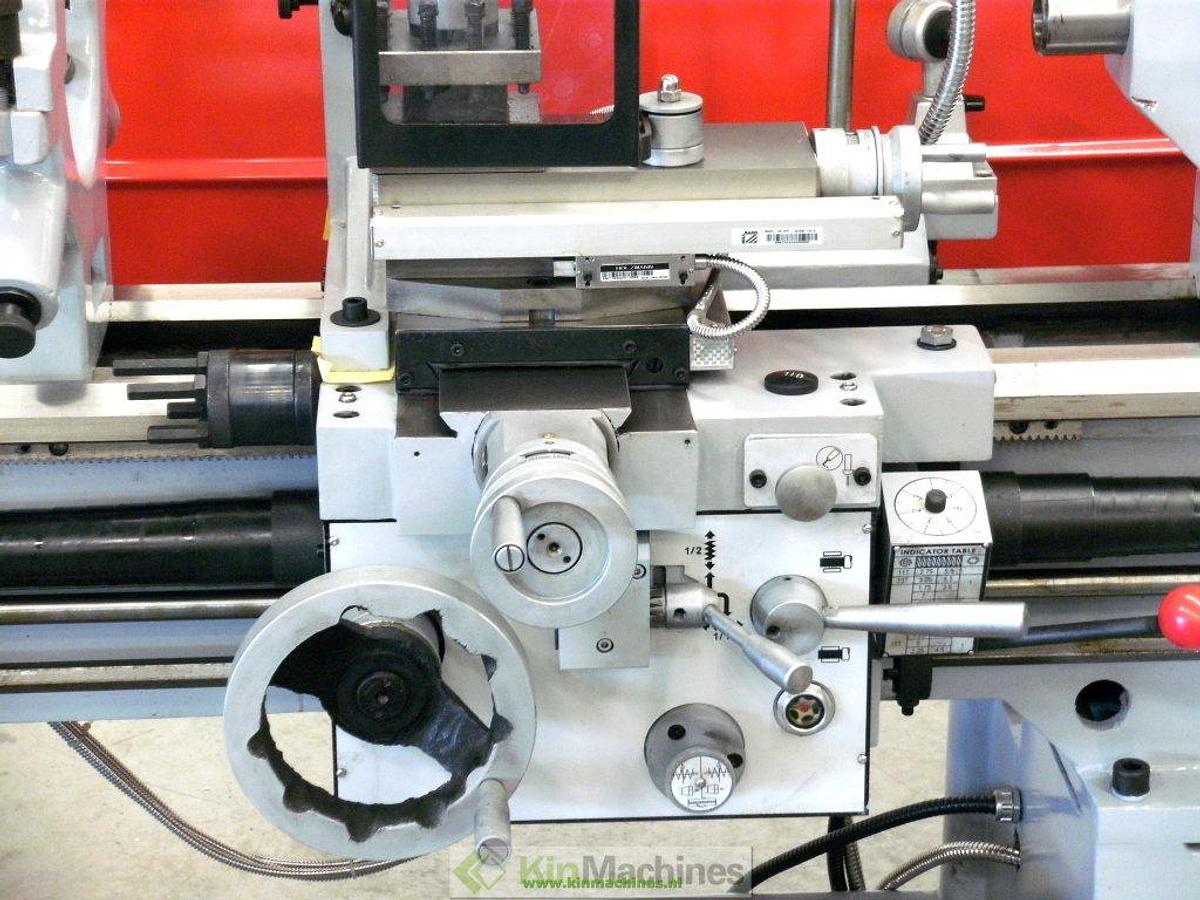

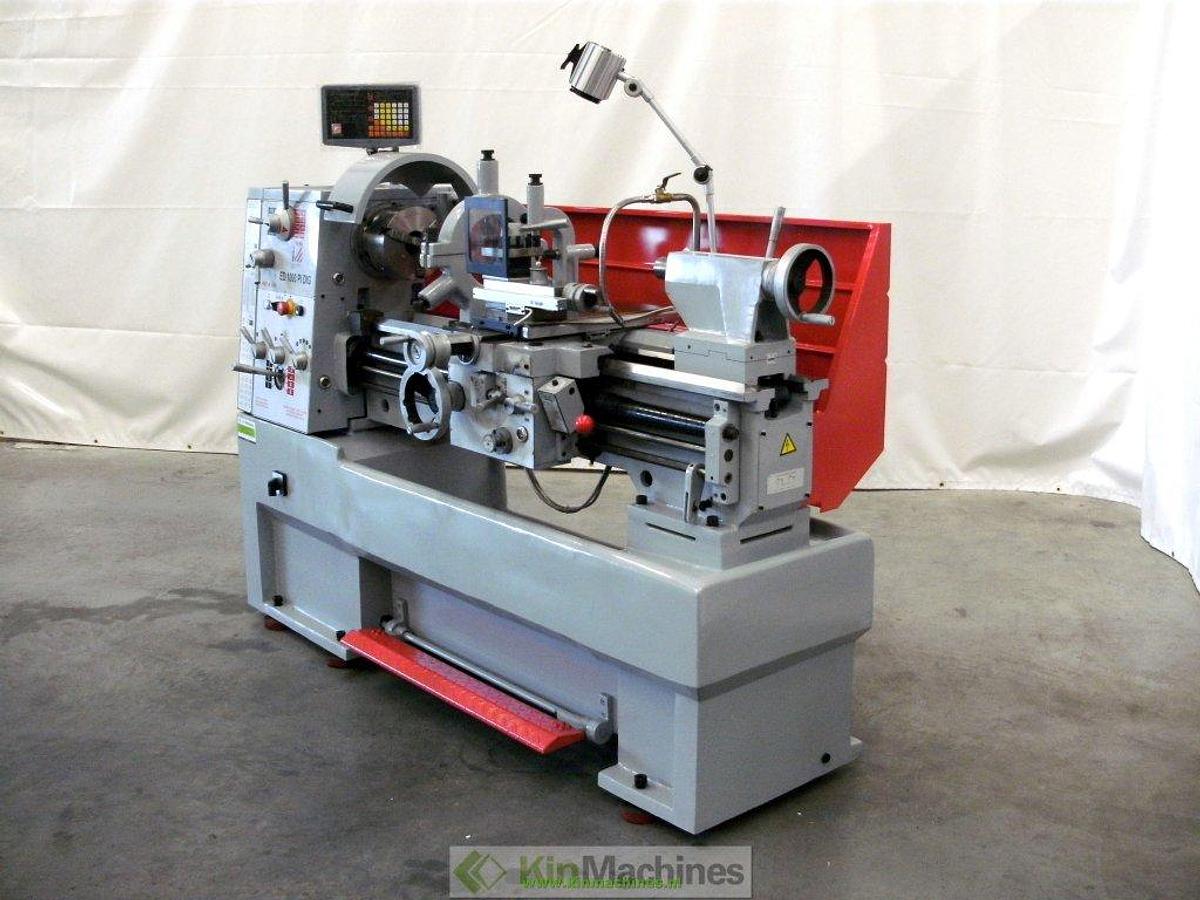

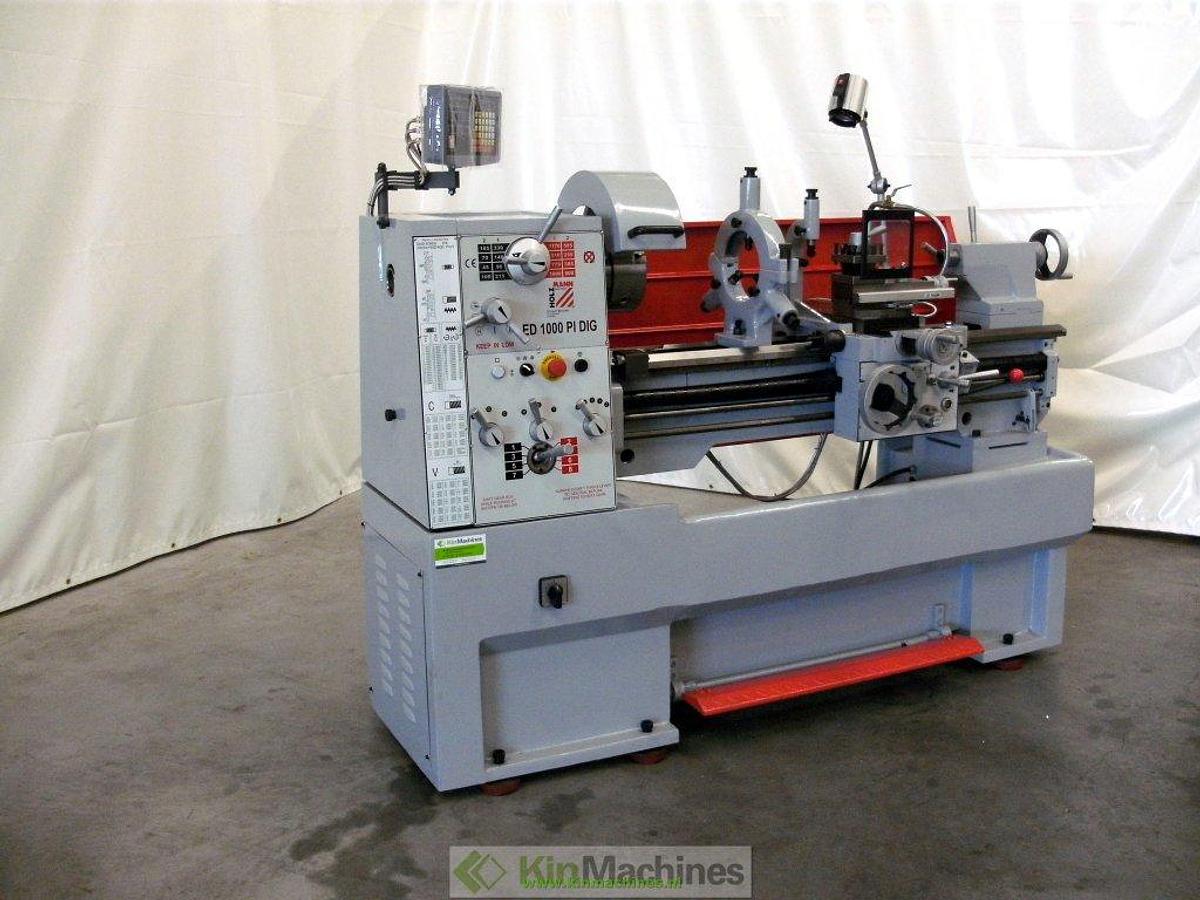

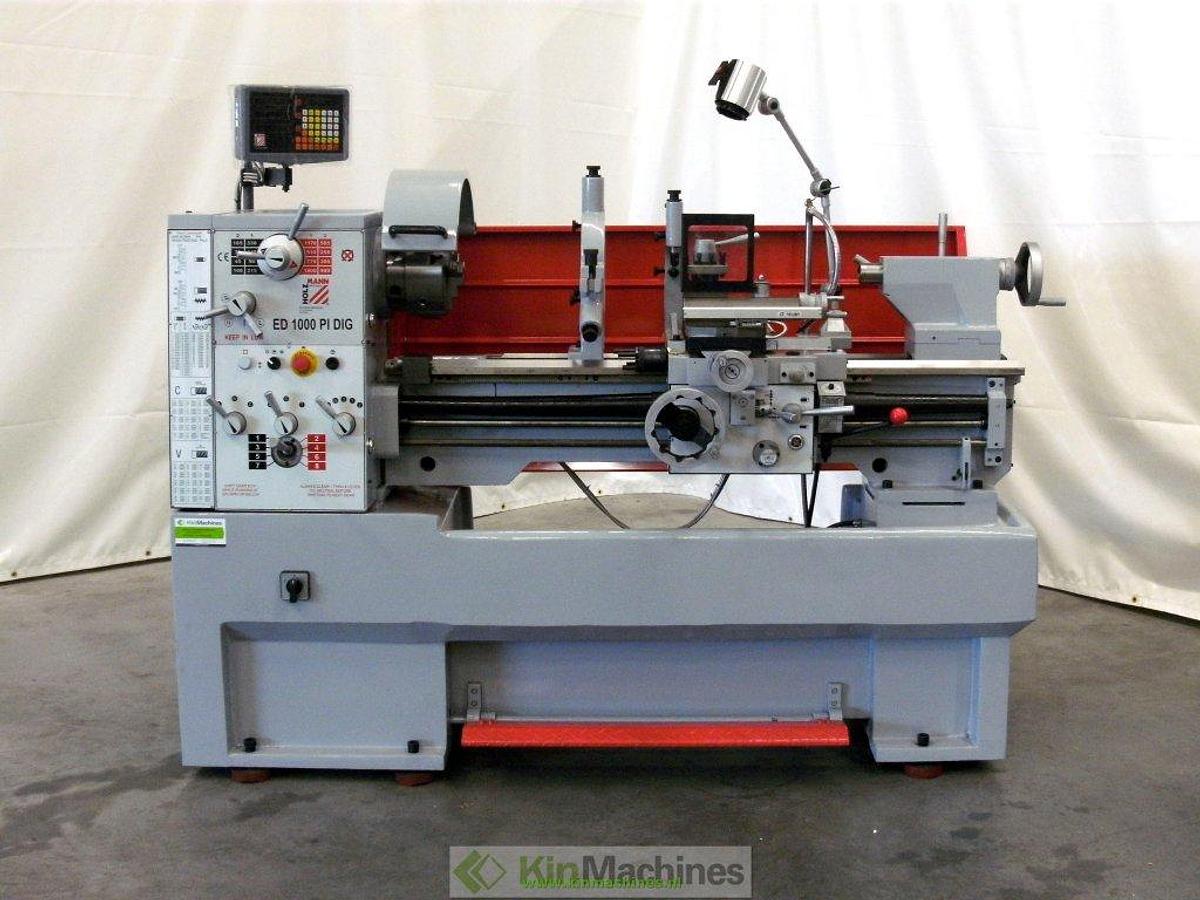

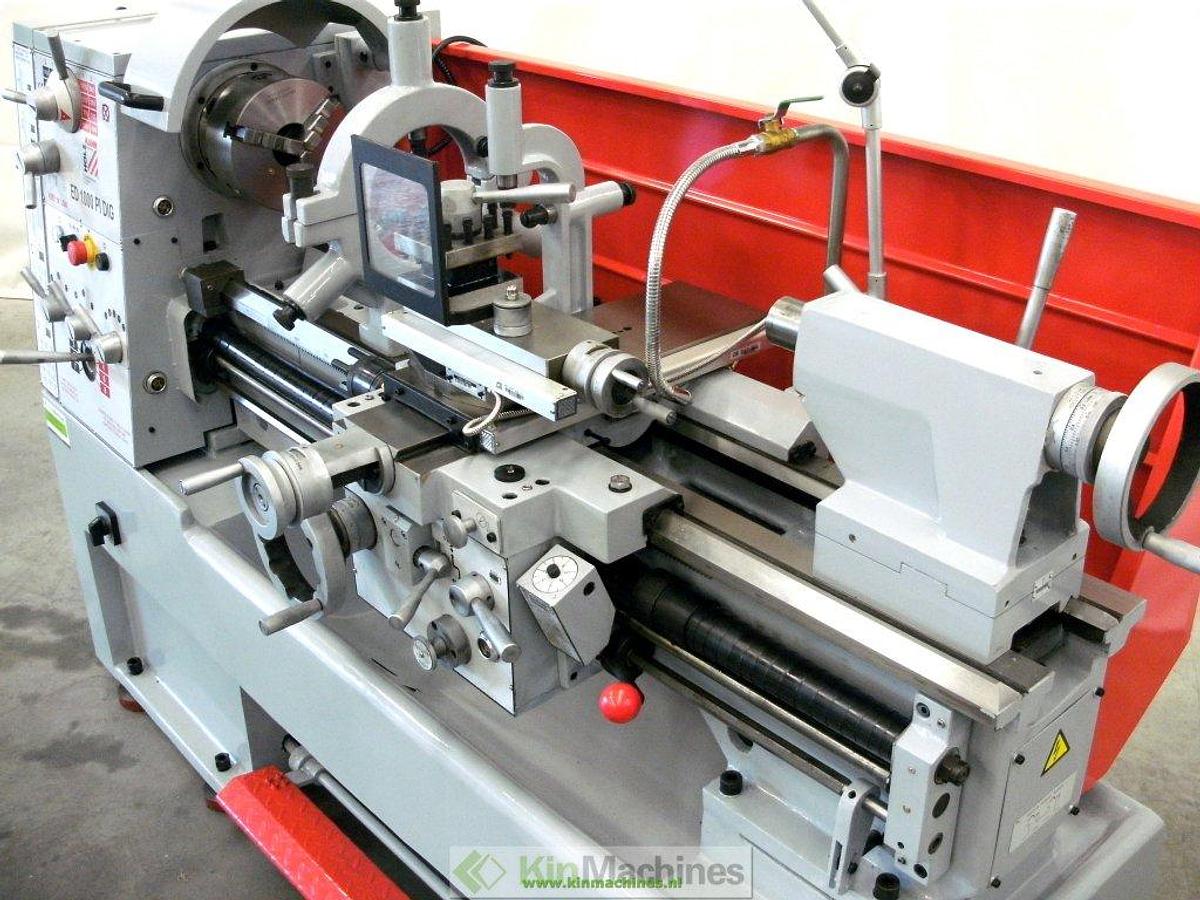

Lathe Holzmann ED1000PIDIG_400V with digital readout.

Lathe Holzmann ED1000PIDIG_400V with digital readout.

Contact us for price

Description

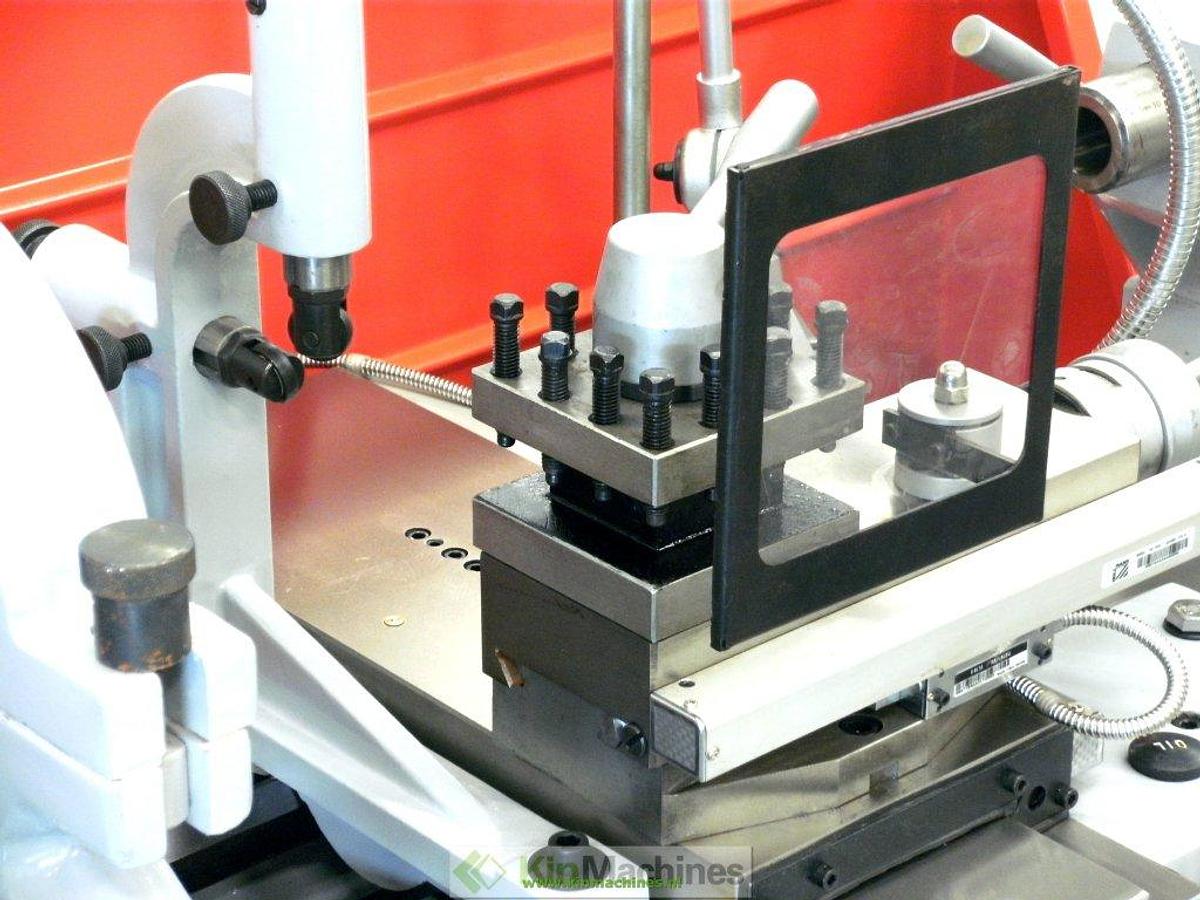

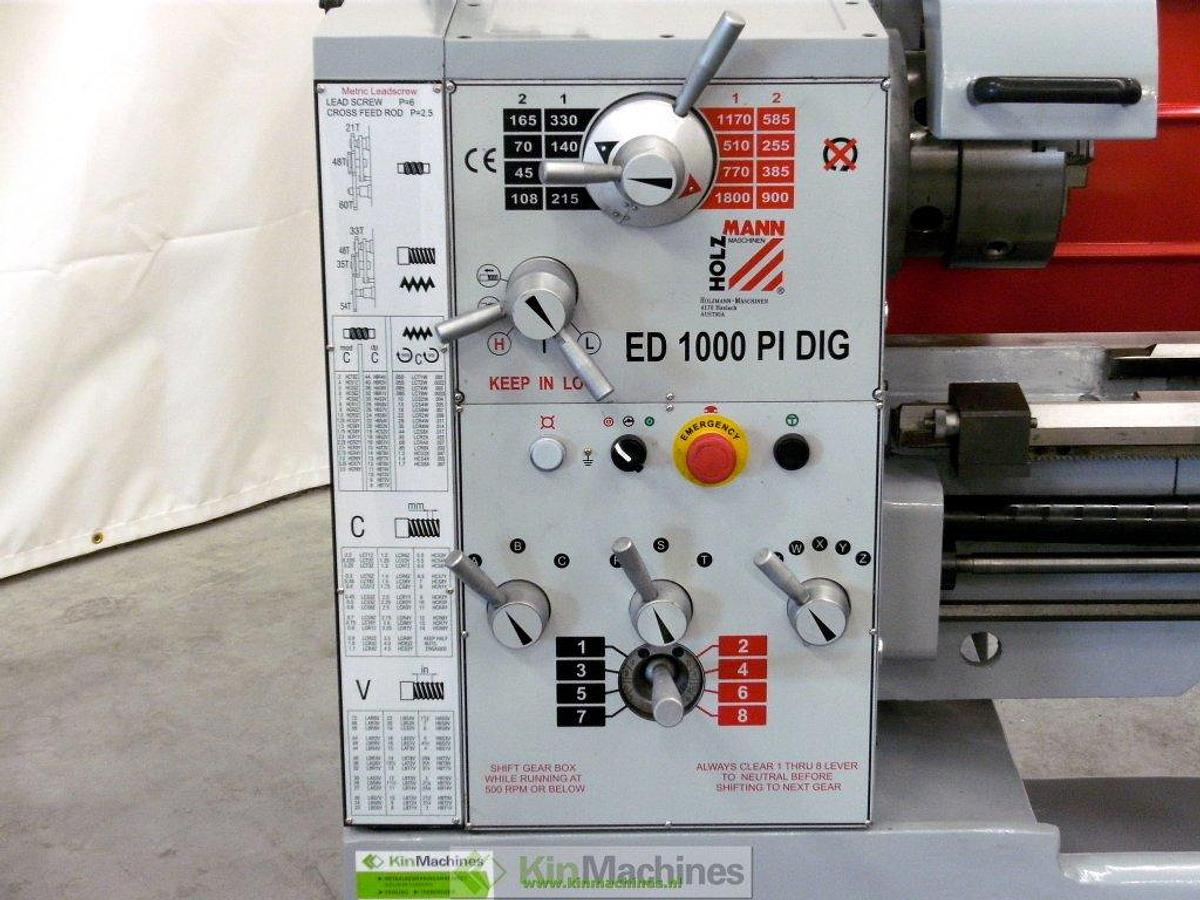

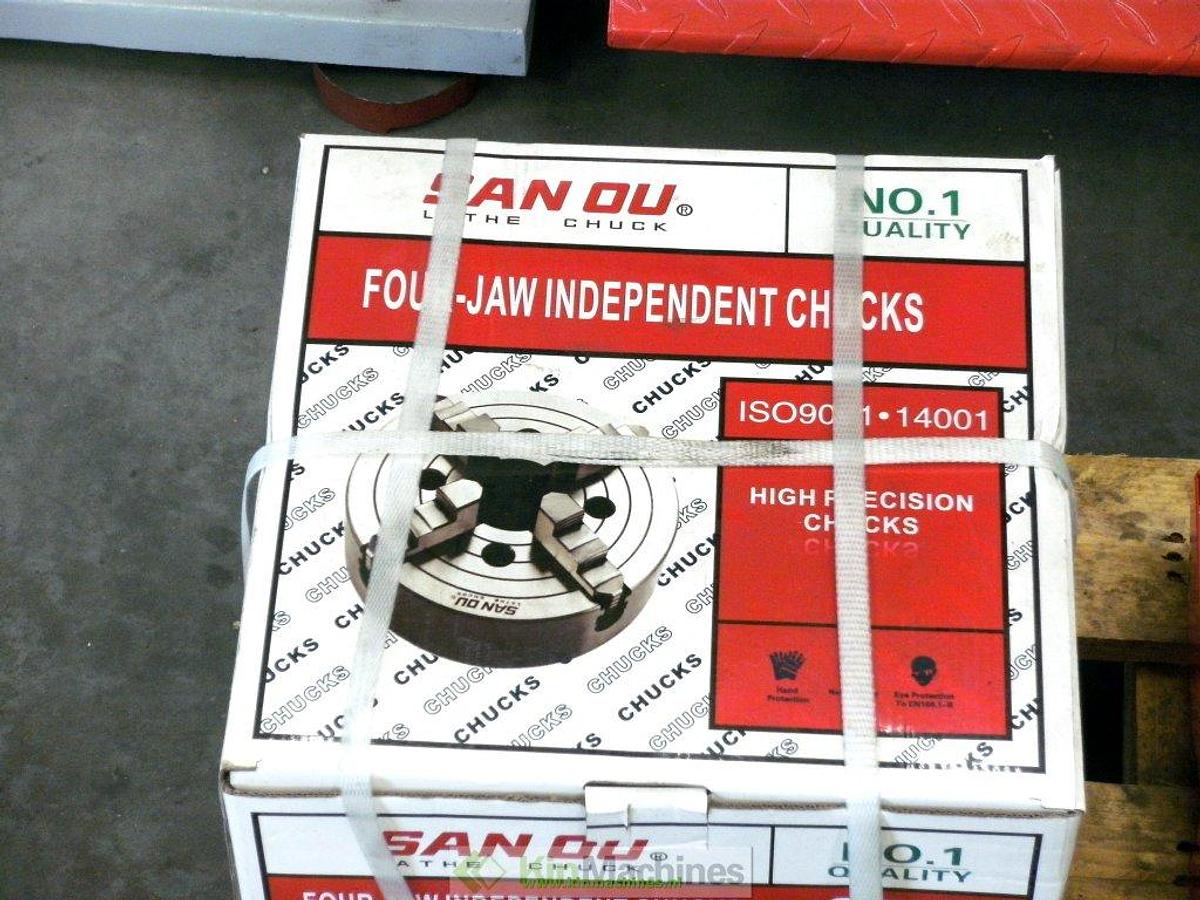

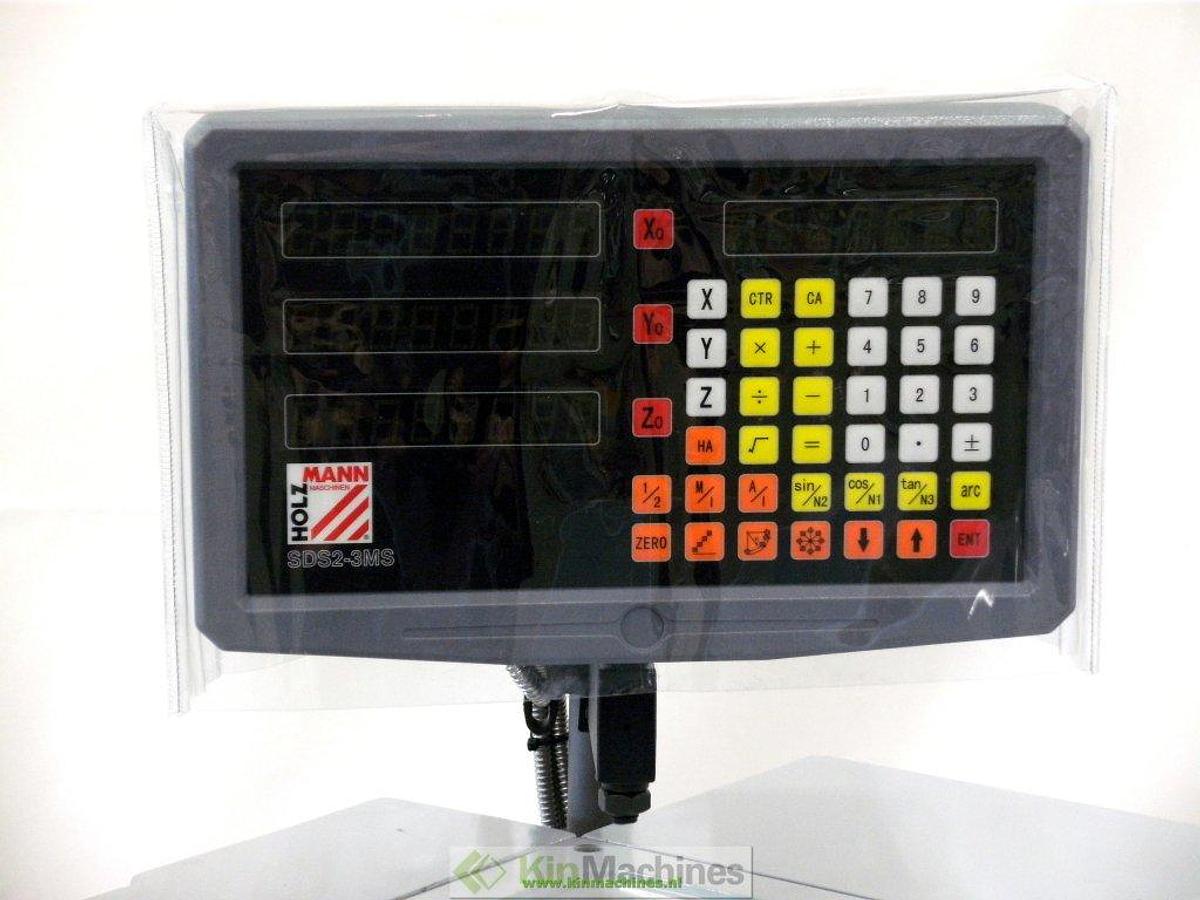

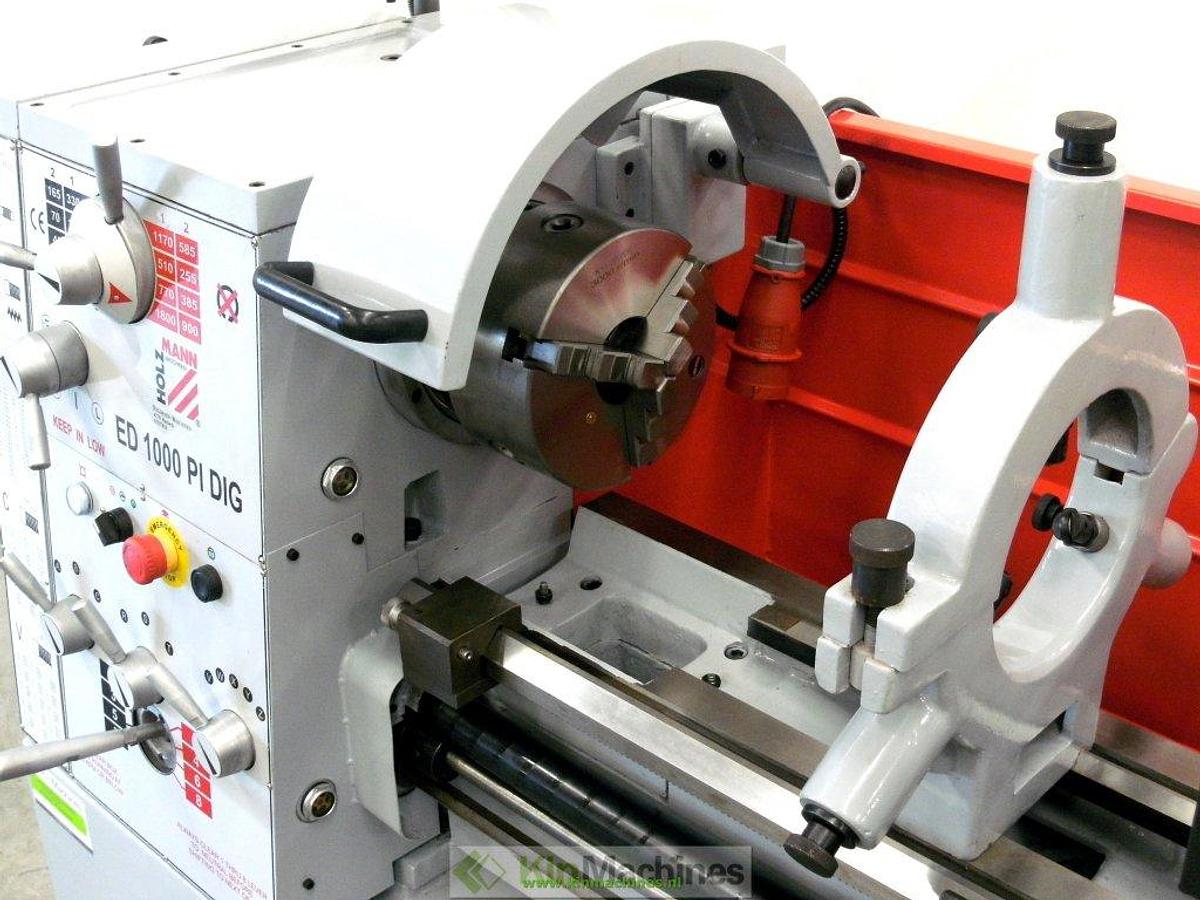

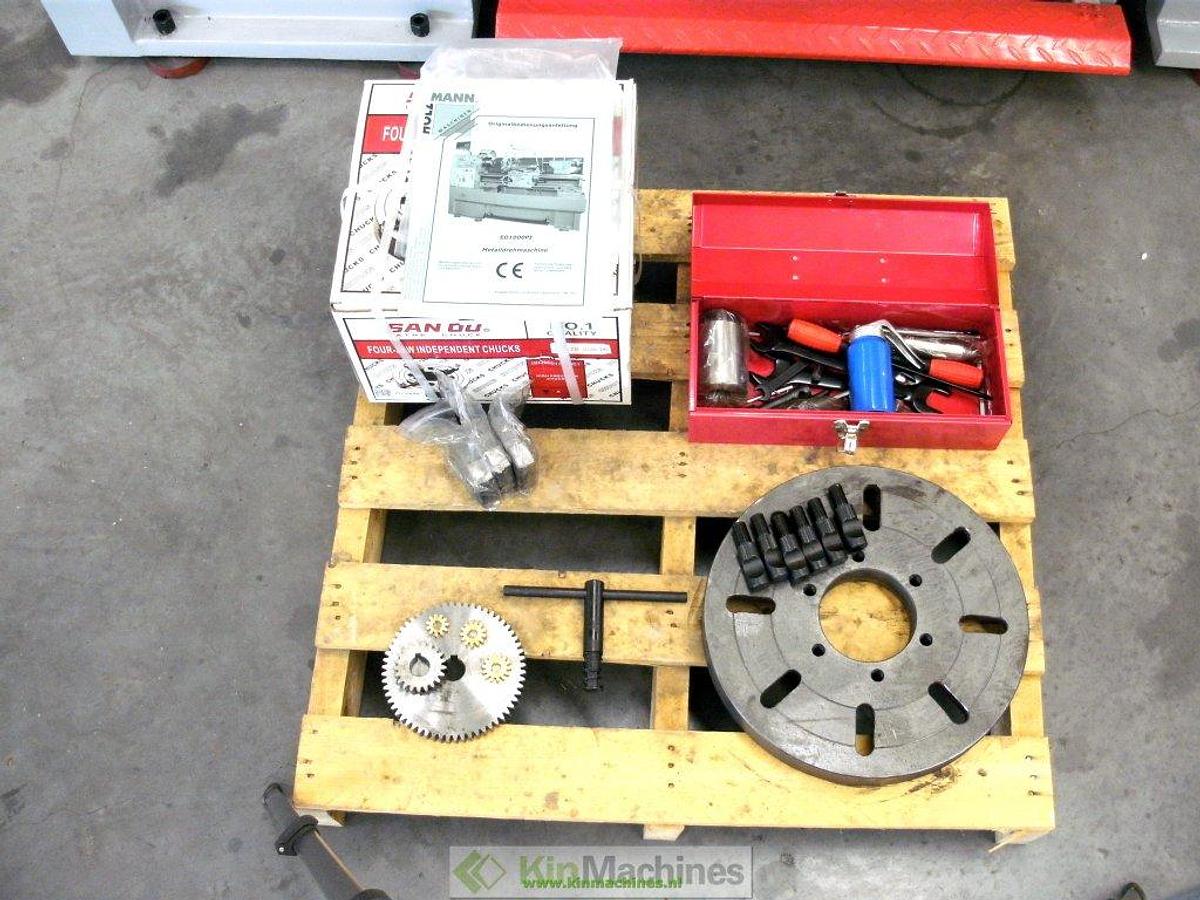

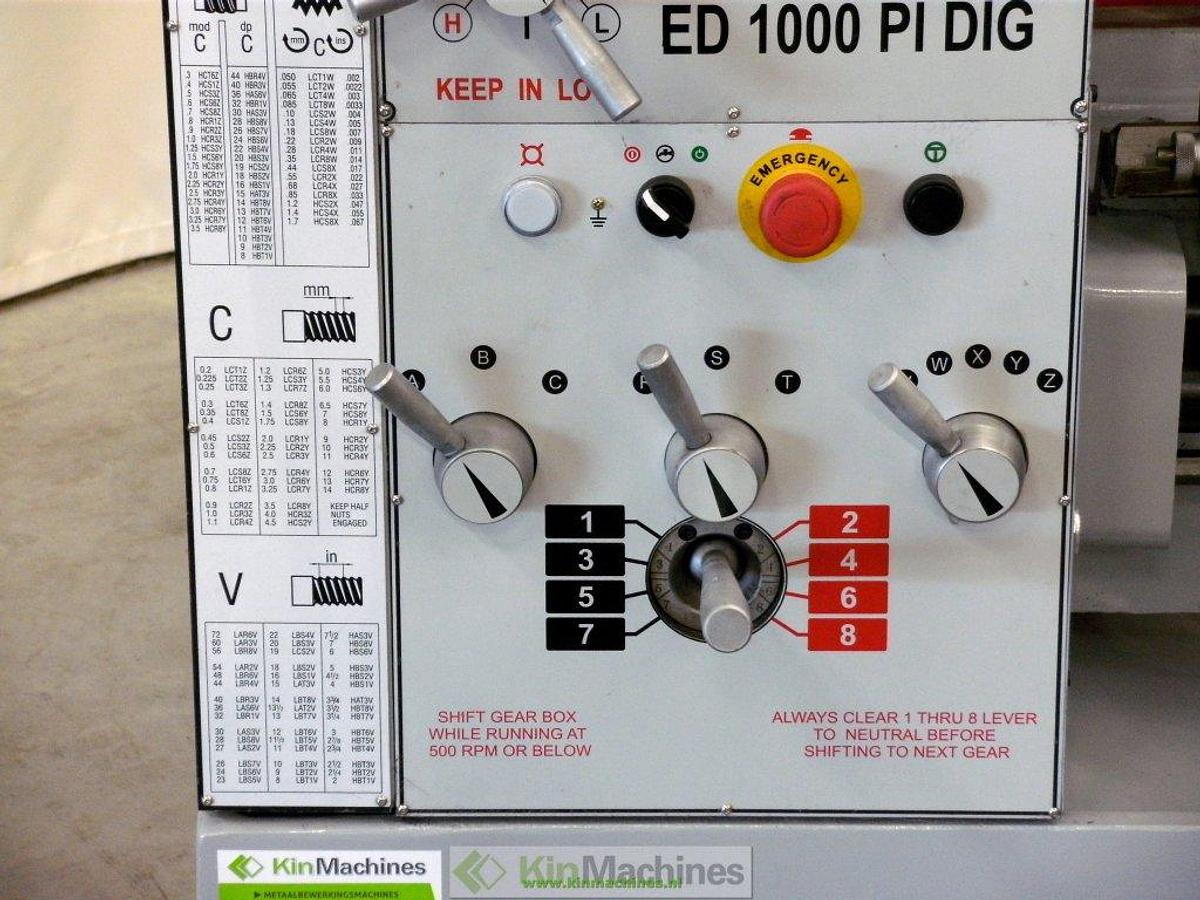

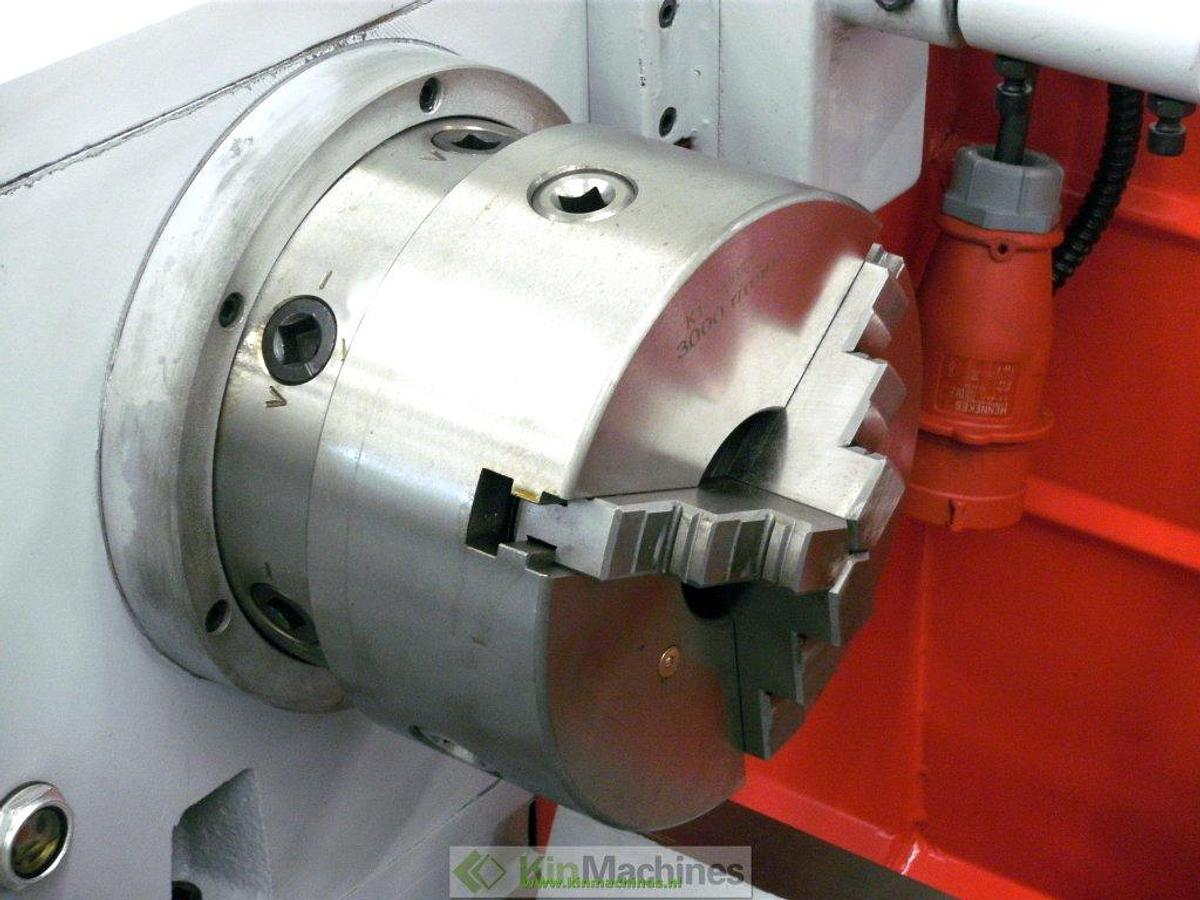

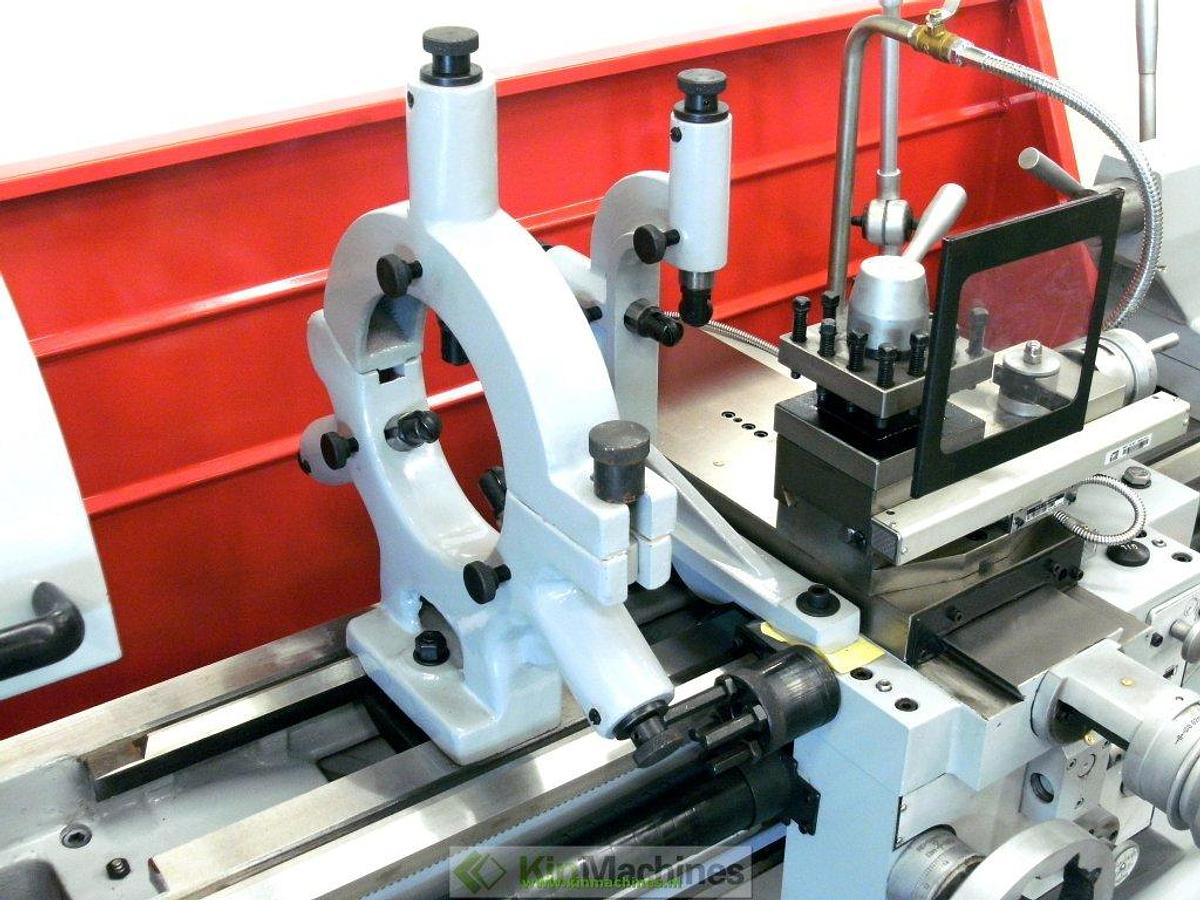

New Holzmann lathe. Digital readout on 3 axes Heavy industrial machine with cast iron base Wide (250 mm), induction-hardened and ground machine bed Thread cutting spindle shielded Convenient and easy operation by clear control panel Removable bed for machining larger workpieces Adjustable guides Camlock spindle adaptor Oil-filled gearbox with hardened and ground gears Foot brake and automatic machine shutdown Cooling pump Working light Supplied including: 3-claw chuck Ø 200 mm with inner and outer jaws 4 chuck Ø 250 mm Chuck Ø 350 mm Reduction sleeve MC6/MC4 2 fixed center points MC4 Fixed spectacles passage 15 - 160 mm Guiding frame diameter 14 - 70 mm Longitudinal stop Thread cutting bell 4-way rotatable chisel holder (Multifix chisel holder available as an option)

Specifications

ManufacturerHolzmann
ModelED1000PIDIG_400V
ConditionNew
Mains voltage400V
SoortLathe

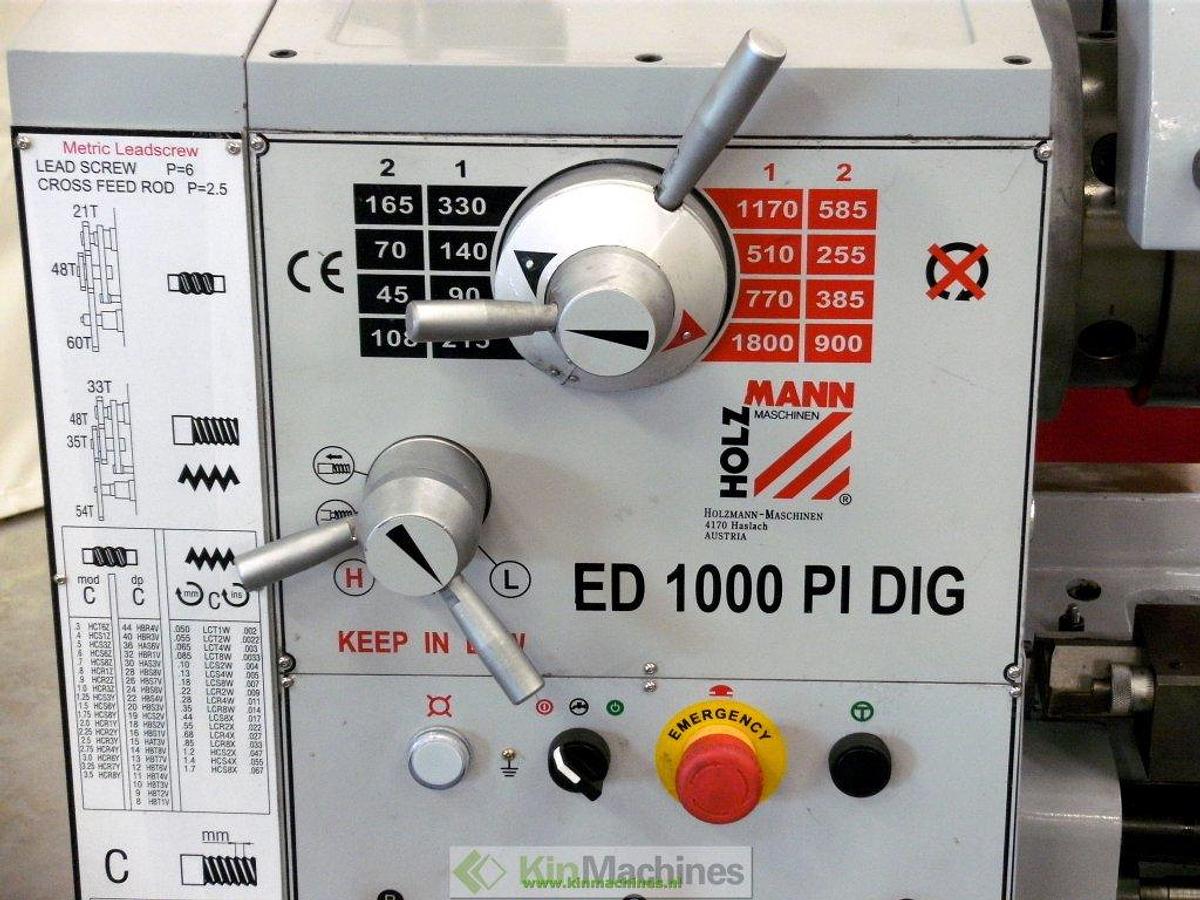

Spindle speeds16 ( 45 - 1800 rpm )
Max turning diameter above bedØ 410 mm
Max turning diameter above slideØ 250 mm
Max turning diameter in bagØ 590 mm
Distance between centers1000 mm
Spindle boreØ 52 mm
Spindle attachment loose headMC4
Intake main spindleMC6
Camlock recordingD1-6, DIN 55029
Long feed0.05 - 1.7 mm/omw
Cross-feed0.025 - 0.85 mm/omw
Metric thread series0.2 - 14 mm
Inch wire series2 - 72 pitch/inch
