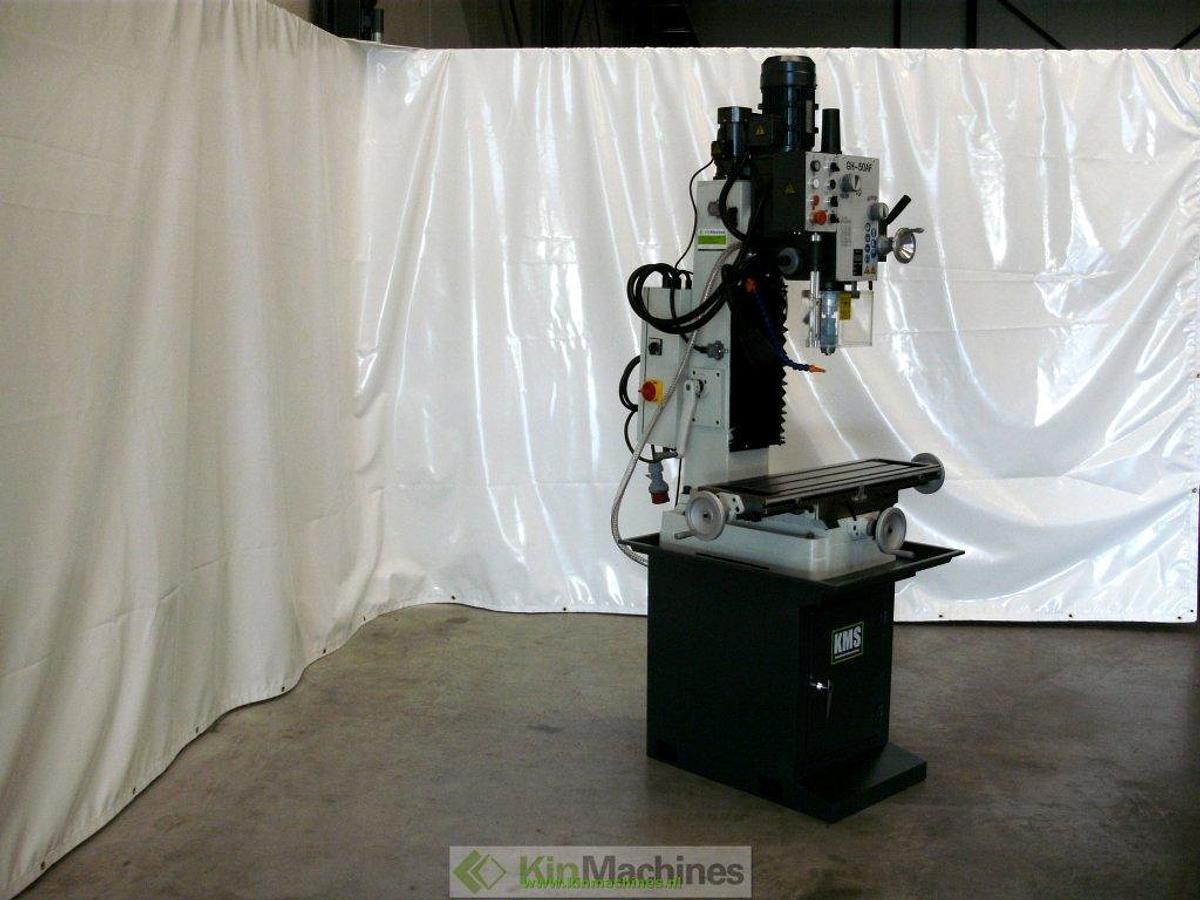

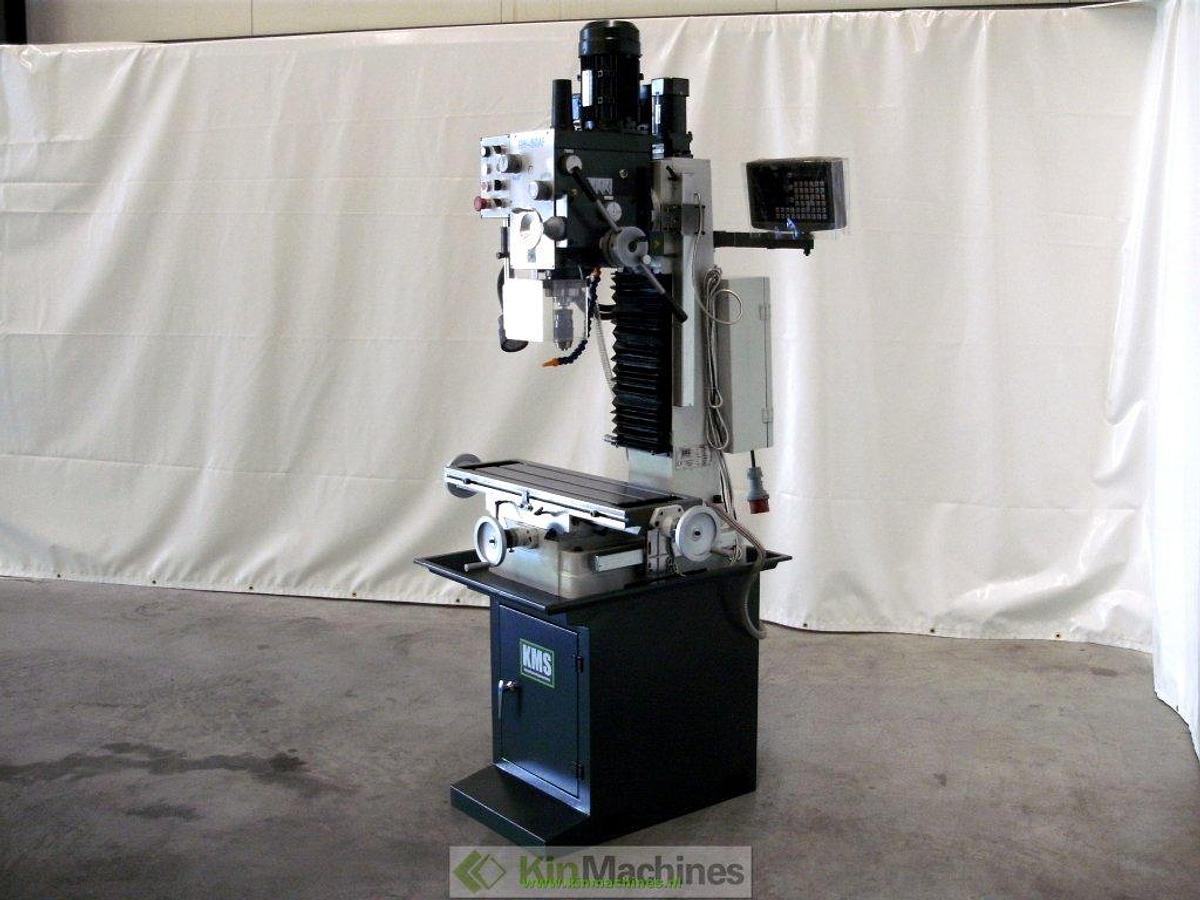

Drilling / milling machine KMS GH-50AF
Drilling / milling machine KMS GH-50AF
Contact us for price
or
Call +31 655 062 286
Description

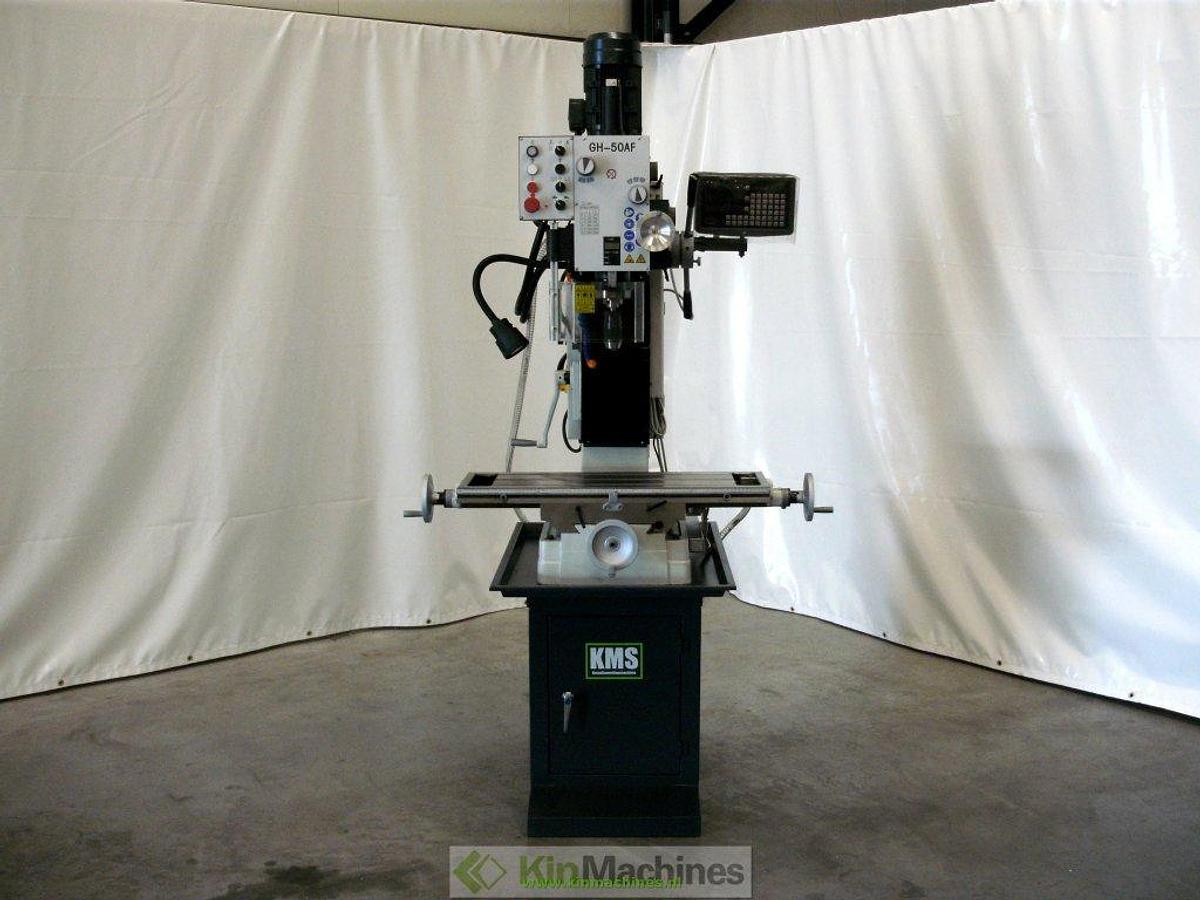

New drilling/milling machine.
Ideal machine for drilling and light milling work with digital readout on 3 axes.
Equipped with:
Sino digital readout on 3 axes
Automatic power supply on drill pinole
Coolant device
Filling device

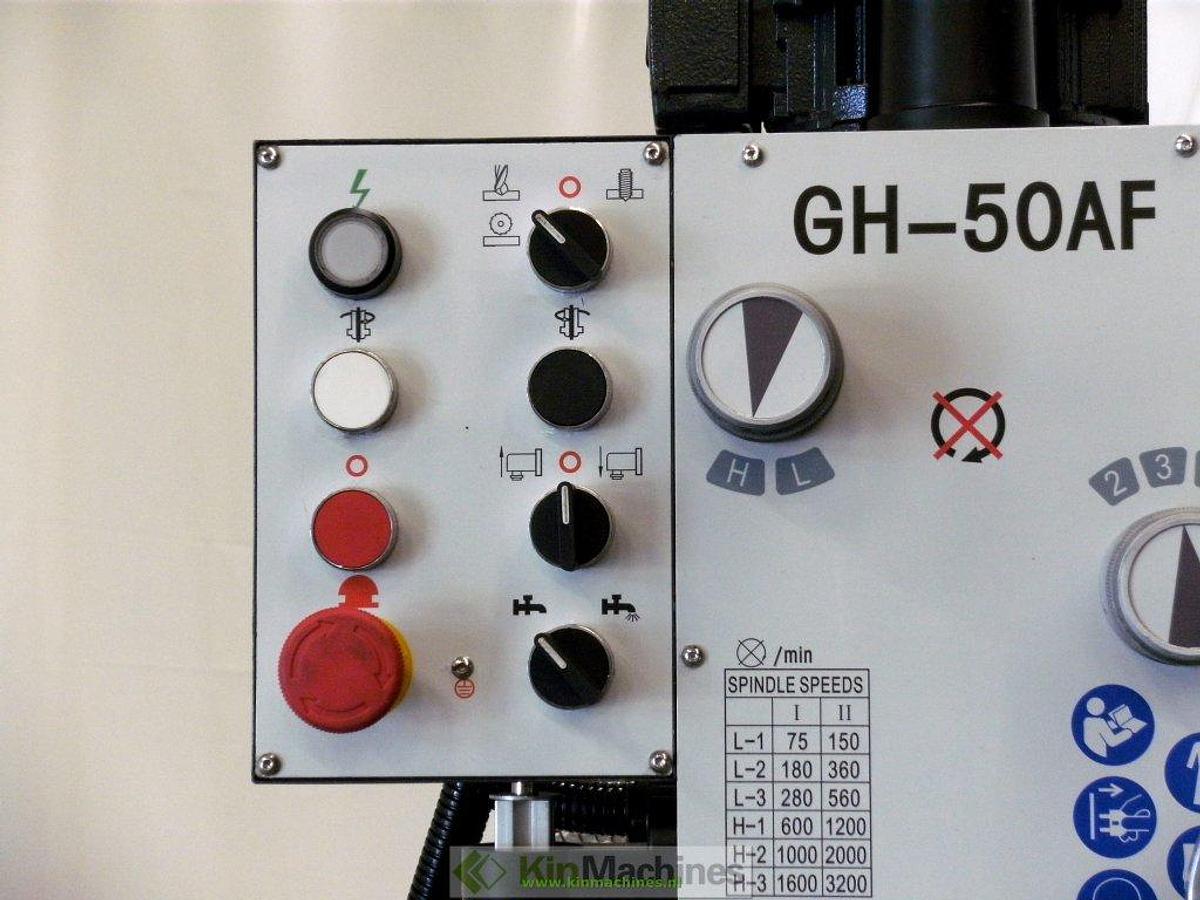

Emergency stop
Shielding
Depth adjustment
Digital display drill spindle depth

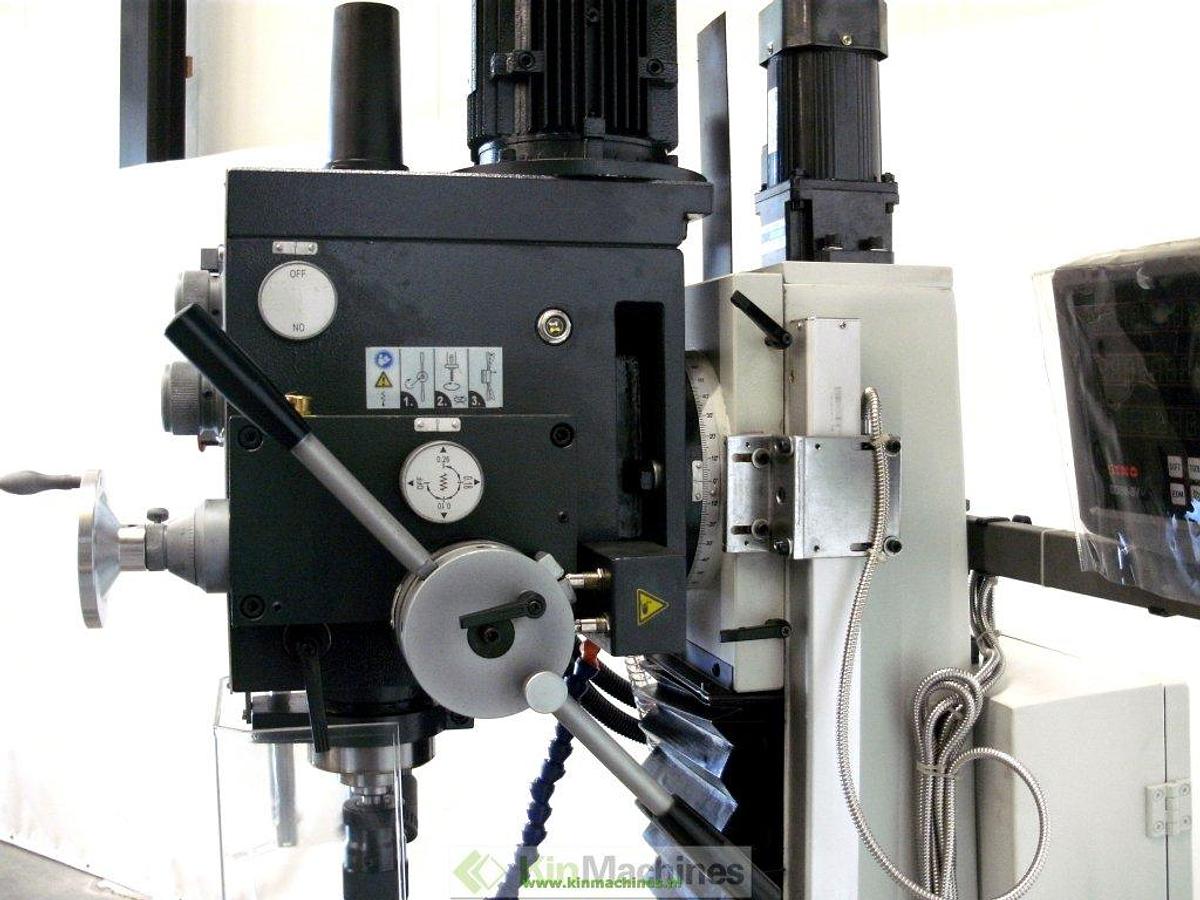

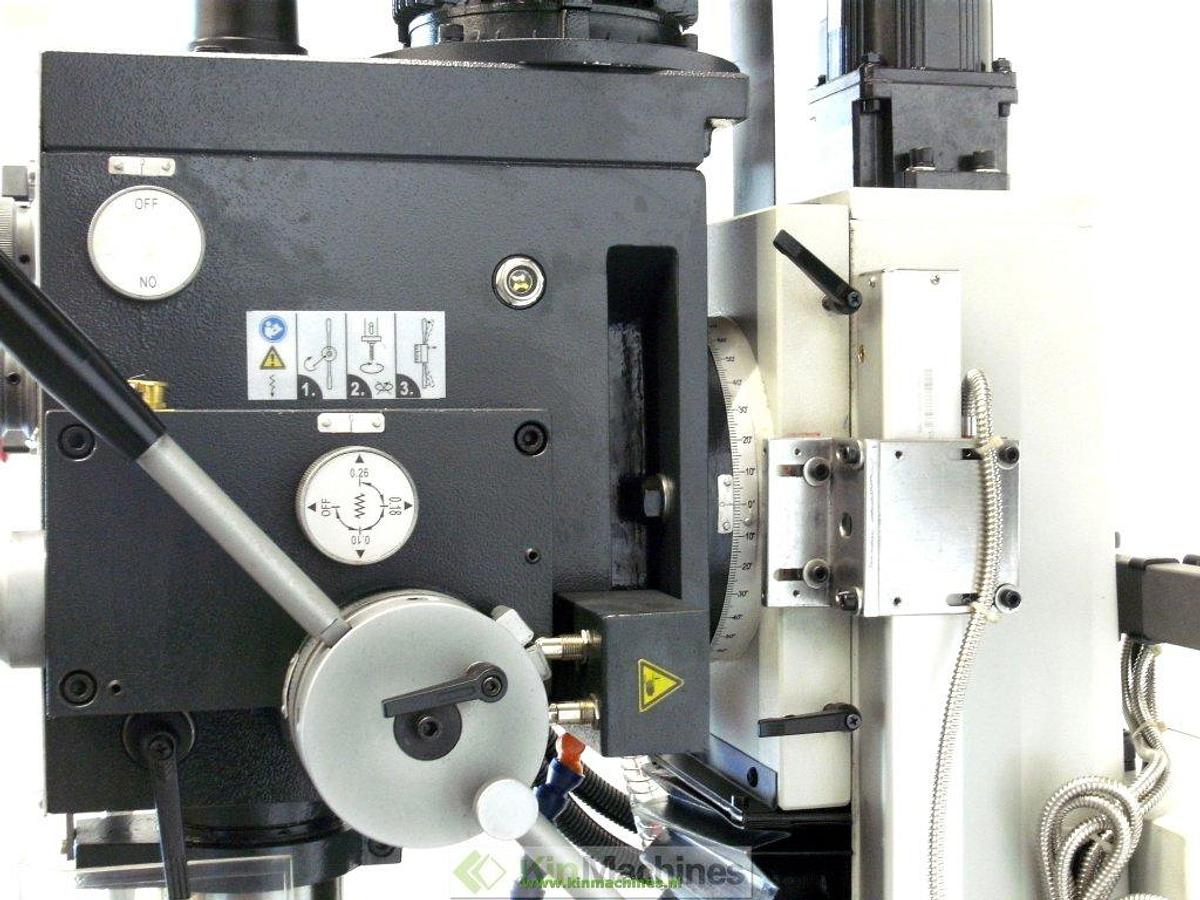

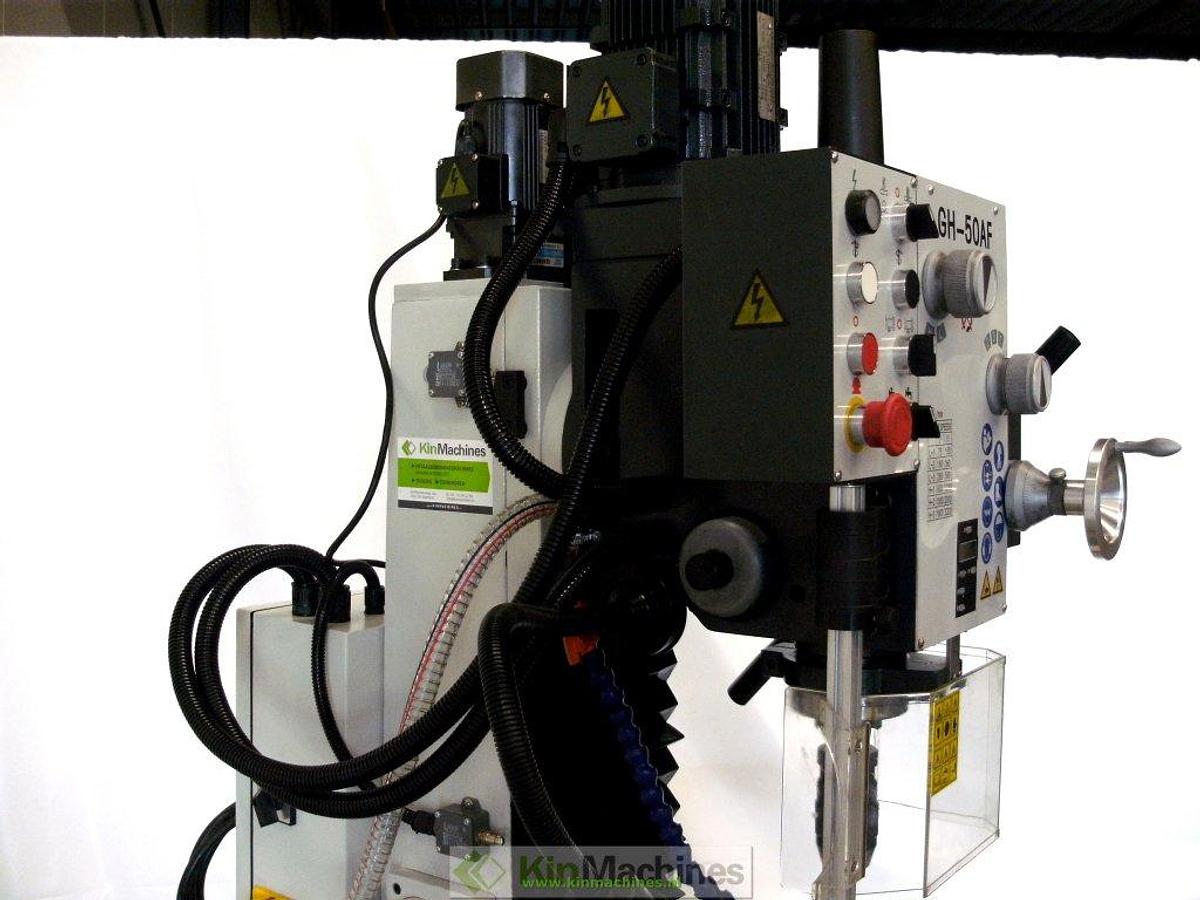

Drill head

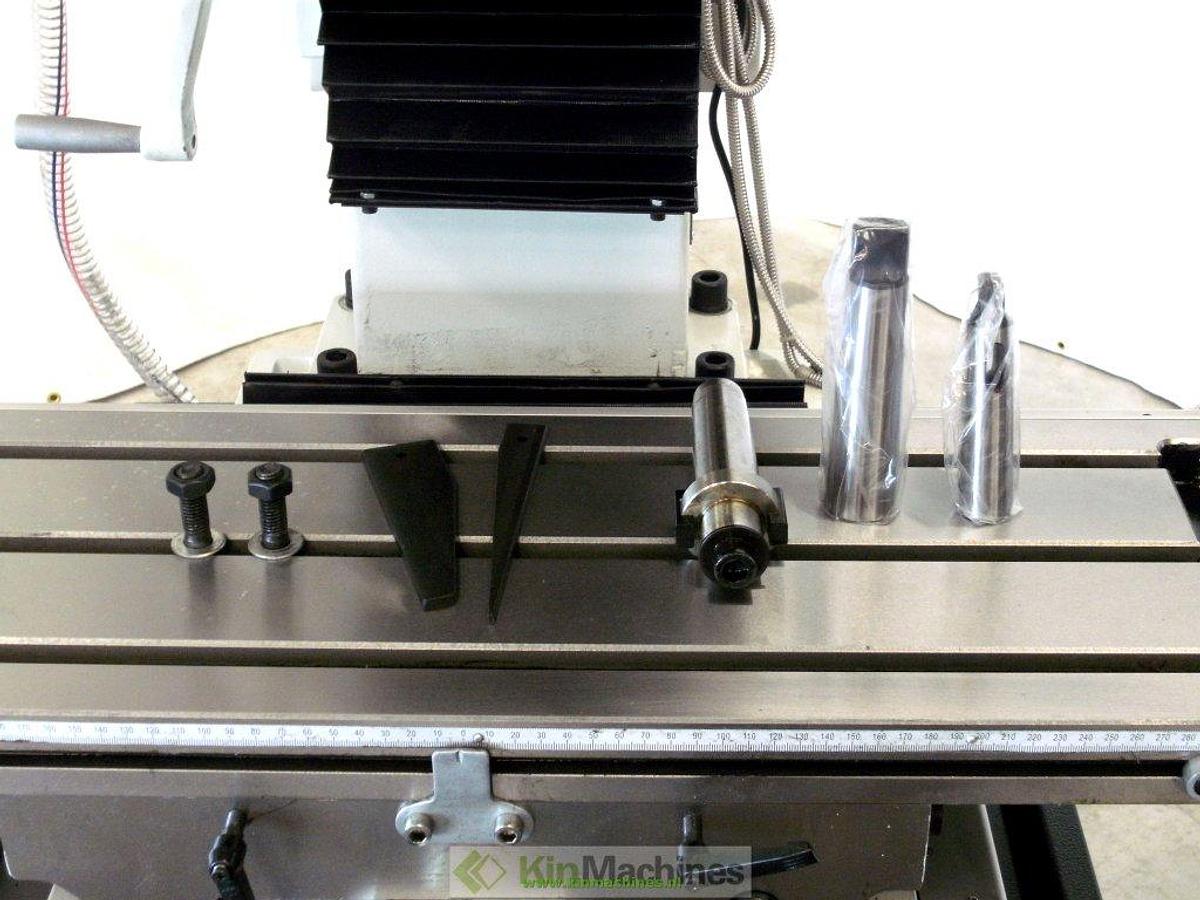

Incl. collet set MC4
Price is for turnkey machine, Af Staphorst.
Specifications
| Manufacturer | KMS |
| Model | GH-50AF |
| Condition | New |
| Spindle mount | MC4 |
| Soort | Milling machine |
| Max. drilling capacity steel | Ø40 mm |
| Max. distance spindle to table | 420 mm (without chuck!) |
| Unloading | 230 mm |
| Spindle stroke | 130 mm |
| Speeds | 12 (75-3200 rpm) |

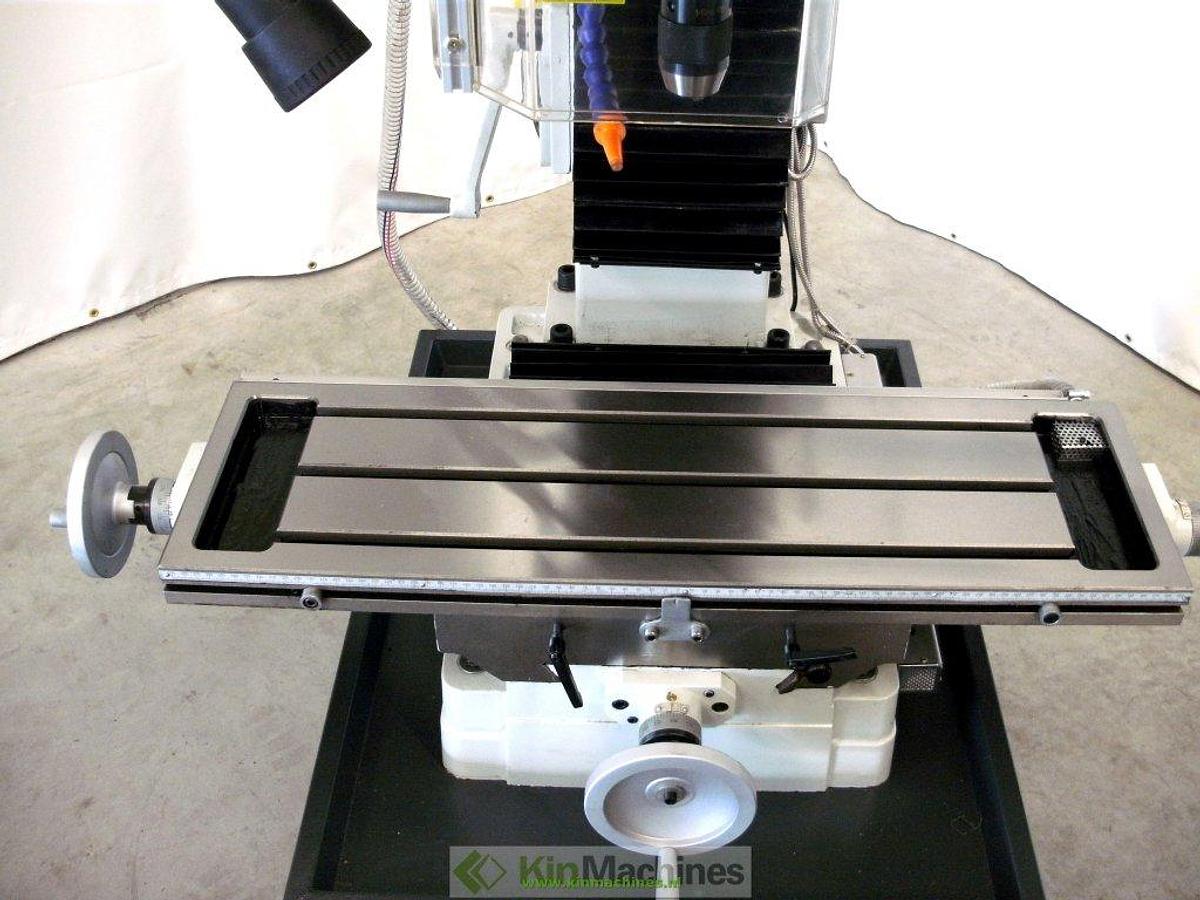

| Table size | 800 x 240 mm |
| Displacement cross table | 560 x 190 mm |
| Machine dimensions | 900 x 1180 x 2100 mm (Depth x Width x Height) |
| Weight | 350 kg |
| Engine power | 1.1 / 1.5 kW |
